Amp Up Your Speed with Our New 6-Layer High Frequency PCB

Calling all speed demons! We just unleashed a tricked out 6-layer PCB primed for the fastest, most intense data applications out there. This board is tuned for performance.

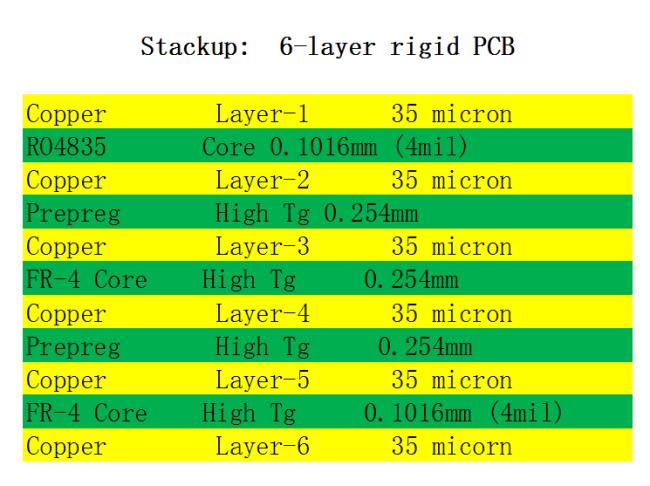

It's packing sturdy Rogers RO4835 hydrocarbon ceramic cores to hold everything steady. The inner layers flex high-temp FR-4 material to keep those blistering signals on track. At 1.20mm thick, this board means business.

With 1 oz copper plated on all 6 layers, you've got the green light to route tight 4/4 mil traces and drop 0.20mm microvias wherever you need. Blind vias between layers 1 and 2? No problem - we've got you covered.

The surface is polished with immersion gold plating so solder glides on slick as ice. Our first panel hits top speed at 56.4mm x 54mm, wired up with 151 vias distributing 19 nets. This thing is tricked out for a smooth ride.

We're using cutting-edge Gerber files and holding tight to IPC Class 2 standards so every inch of these boards performs like a dream. Take the checkered flag with your next high-frequency design! Tell our engineering crew what you need, and let's ride.
