high quality and best price ISUZU 5,000L fuel dispensing truck for sale, factory sale good bulk fuel tanker vehicle
Fuel tank tank mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13886878855. '
The fuel trailer is also called oil tanker trailer, oil trailer, fuel tank semi trailer,oil transport semi trailer, fuel tank trailer, fuel truck trailer,etc.The fuel tank semi trailer is mainly used to transport oil, fuel, gasoline, etc.
The fuel tanker trailers manufactured by Chengli Special Automobile Co., Ltd. are equipped with oil tank, trailer axle, trailer landing gear leg antistatic device, discharge valve, pipeline system, 2 pcs lockable hose carrier on both sides, spare tire carriers, top acess ladders, anti-slip walkway, handrail, manhole, fire extinguisher, side lamps and reflective stickers, ABS, etc. And the capacities of the fuel tanker semitrailers manufactured by Chengli Special Automobile Co., Ltd. is from 30000 liters to 60000 liters. We supply tri axle oil tanker trailers and double axle trailers. Also, the tank can be single tank or devided into compartments, the inner of the trailer are mounted with baffles. In loading type, we have manhole loading tanker trailer and bottom loading oil tanker truck.
1> Transport medium: oil, product oil, edible oil, water, alcohol, etc.
2> With multiple baffle plates, the tank has the advantages of high intensity, stability, transporting safety etc.
3> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
4> Computer refueling machine is installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction.
If you're interested in our fuel tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Website: www.trucksinchina.com

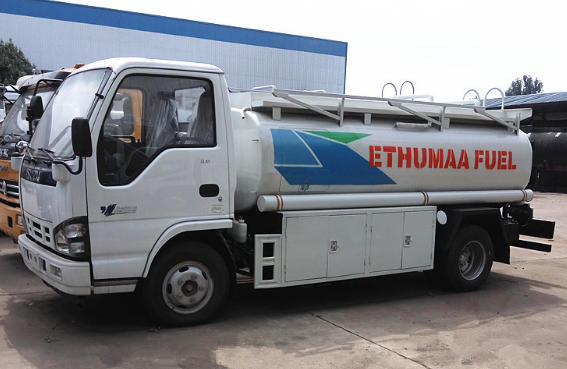

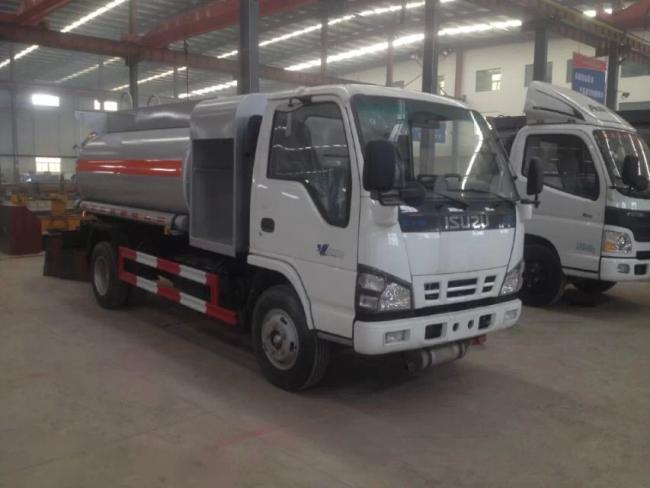

MOre pictures of ISUZU 5,000L fuel dispenser truck as below.
the technical parameters of ISUZU Fuel tanker truck as below
|
Main technical parameters |
|||
|
ISUZU 4500L refuel truck for sale |
|||
|
Total mass(Kg) |
6435 |
Tank volume(L) |
4,500-5,000 |
|
Rated mass(Kg) |
2855 |
Overall dimension(mm) |
5995×1960×2650 |
|
Curb mass(Kg) |
3450 |
Driver cab person |
2 |
|
Approach/departure angle(°) |
24/15 |
Front/rear suspension(mm) |
1015/1620 |
|
Axle nos. |
2 |
Wheelbase(mm) |
3360 |
|
axle load (Kg) |
2250/4185 |
Max speed (Km/h) |
80 |
|
Remark |
The transporting medium is gasoline/ diesel/ oil/ fuel, etc. The fuel tank volume is 4500L-5000L, the fuel dispenser is at the front of the tank with nozzle.
|
||
|
Chassis main parameters |
|||
|
Chassis model |
QL1060A1HAY |
Chassis manufacturer |
ISUZU |
|
Overall dimension(mm) |
5900×1880×2160 |
Tyre nos. |
6 |
|
Approach/departure angle (°) |
24/16 |
Tyre specification |
7.00-16 14PR, |
|
Steel spring |
8/6+5 |
Front tread(mm) |
1504 |
|
Fuel type |
Diesel |
Rear tread(mm) |
1425 |
|
Transmission |
ISUZU MSB 5 speed transmission |
Air-conditioner |
Yes |
|
Power steering |
Yes |
Front/rear bridge |
2.5ton/4.8ton |
|
brake |
Oil brake with vacuum booster pump |
Driver cab |
With USB coupling radio without reversible |
|
Emission standard |
Euro 4 |
||
|
Engine model |
Manufacturer |
Displacement (ml) |
Power (Kw) |
|
4KH1-TCG40 |
ISUZU |
2999 |
88 |
|
Engine type |
4 strokes in line, inter-cooling diesel engine |
Engine oil consumption(L/100km) |
17.86 |
|
other Equipment or performances |
1. The fuel tanker shape is ellipse, adopts 5mm high quality GB carbon steel, with one compartment and several anti-wave sheets. And the fuel tanker volume is 4.5cbm-5cbm. |
||
|
2. Equipped with special carbon steel fuel pump, one manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit aluminum alloy elevating guardrail, one unit of China-made refueling dispenser and 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc. |
|||
|
3, The truck is painted metallic coating. And the fuel dispenser is installed at the front like the pictures. |
|||
