dongfeng LHD 8*4 16tons heavy duty cargo truck with crane for sale, best price dongfeng brand 16tons truck crane
dongfeng LHD 8*4 16tons heavy duty cargo truck with crane for sale. factory direct sale best price dongfeng brand 16tons truck mounted crane
Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. More information, please feel free to contact with Ms. Anita.
The dump truck with crane is also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The dump truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional dump truck with crane manufacturer in China, the dump truck with crane for sale is from 2 ton to 32 ton. The drive type of our dump truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our dump truck with crane, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
1. Cummins engine 340hp
2. dongfeng 8x4 chassis
3.Chengli crane, telescopic 4section boom
4.360degreee rotation
5.four outrigger, high stability
Technical parameters for reference
|
Main Technical Parameter |
||||
|
ProductName |
Crane Truck |
Gross Vehicle Weight (kg) |
31000 |
|
|
Max Lifting Capacity |
16,000kg at 2.5m |
Cab Allowed Persons |
3 |
|
|
Axle No. |
4 |
Wheelbase (mm) |
1850+4350+1350 |
|
|
Drive Type |
8x4 |
Max Speed(km/h) |
90 |
|
|
Chassis Technical Parameter |
||||
|
Chassis Model |
EQ1310VFJ |
Chassis Name |
Truck Chassis |
|
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co., Ltd |
|
|
Overall Dimension (mm) |
10930×2500×3030 |
Tyre No. |
12with 1 spare tyre |
|
|
App./ Dep. Angle(º) |
19/20 |
Tyre Spec. |
11.00-20 |
|
|
Leaf Spring No. |
9/9/10 |
Front Track (mm) |
2050/2050 |
|
|
Fuel Type |
Diesel |
Rear Track (mm) |
1860/1860 |
|
|
Steering Wheel |
Power-assistant |
Brake System |
Air brake |
|
|
F/R Suspension(mm) |
1460/2465 |
Axle Load(kg) |
6500/6500/18000 |
|
|
Engine Technical Parameter |
||||
|
Engine Model |
IsLe340 30 |
Emission Standard |
Euro III |
|
|
Displacement ( mL ) |
8900 |
Power |
250kw/340hp |
|
|
Superstructure Technical Parameters |
||||
|
Max Lifting Moment |
40T.M |
Boom No. |
4 |
|
|
Rotation Degree |
360° |
Max Working Radius |
15.2m |
|
|
Max Lifting Height |
17.2m |
Steel wire rope |
¢16mm x100m |
|
|
Outrigger No. |
4 |
Horizontal Span of outrigger |
2.4-7.2m |
|
|
Hydraulic pressure |
24Mpa |
Hydraulic Tank Volume |
180L |
|

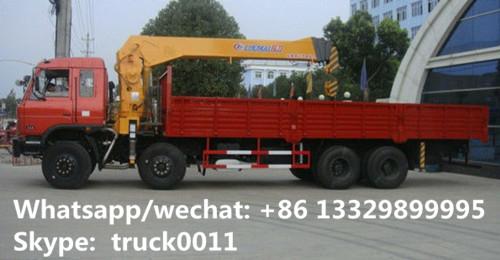

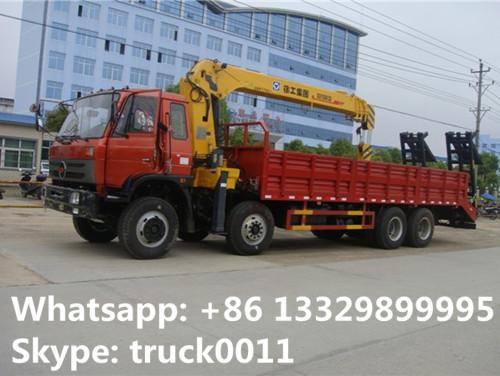

More pictures of hot sale dongfeng 8*4 truck with crane as below
high quality dongfeng 16tons truck with crane for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
