factory selling 4x2 35cbm 10ton jac refrigerator box truck, high quality and competitive price 5-8ton refrigerated tuck
factory selling 4x2 35cbm 10ton jac refrigerator box truck, high quality and competitive price 5-8ton refrigerated tuck for sale
Functin explain on the refrigeration systerm:
* Temperature range is -18°c to 10°c.
* Air conditioner external unit use of good quality plastic shell and Indoor air conditioning use aluminum material, the use of a good painting, to prevent corrosion, nontoxic and beautiful.
* Temperature control systerm uses a computer control technology, and accurate control the temperature.
If you're interested in our dongfeng 145 cold room truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Technical specification for jacrefrigerator van truck
|
Products Technical Specification
|
|
| Brand & Series | JAC 4*2 Refrigerated truck |
| Fuel type | Diesel |
| Emission Standard | Euro 2 or 3 |
| Cabin | Single row, Radio, cassette |
| Overall dimensions (L×W×H) | 5995*2130*3100 |
| G.V.W | 4490kg |
| Curb weight (chassis) | 2800kg |
| Loading capacity | 1495kg-3000kg |
| Engine & Chassis | |
| Engine model | CY4102-CE4F |
| Maximum power | 83kw/113hp |
| Displacement | 3856 |
| Number of cylinders | 4 |
| Engine Manufacturer | Dongfeng Chaoyang engine Co. Ltd. |
| Wheel base | 3308mm |
| Gear box | 5 forward gears & 1 reverse |
| Drive Axle | 1.5T/3T |
| Brake system | Oil braking |
| Steering wheel | Left hand drive or right hand drive |
| Electric device | 24V |
| Tyres & Quantity | Factory Standard 7.00-16& 6+1(Spare tire) |
| 7.50-16 | |
| Cooling box Description | |
| Cooling box dimensions (L×W×H) | 4150*2000*2000 |
| Cooling box Volume | 16m³ |
| Cooling box material | FRP inside & outside of the van, |
| polyurethane as the insulation | |
| Cooling box thickness | 800 mm Optional 100mm |
| Back Door | Hinged door |
| Side door | Optional |
| Refrigeration systems | Equipped with DT-230,South korean Hanya Brand |
| Temperature Range | Normal temperature 35°C |
| ,refrigeration temperature reached -18°C to 0°C | |
| Optional -10°C to 0°C,-18°C to 5°C ,-20to 30°C,etc | |
| Others | Stainless Steel door frame,Stainless steel corrugated |
| floor, Mark lamp at the four (4) corners f the | |
| body,Room lamp will be provided inside the cabin. | |
| Optional Configuration (√:Standard Equipment o:Optional ×:Not Available) | |
| A/C | v |
| Power Steering | v |
| Side bumper | √ |
| Rear bumpe | √ |
| Wind deflector | X |

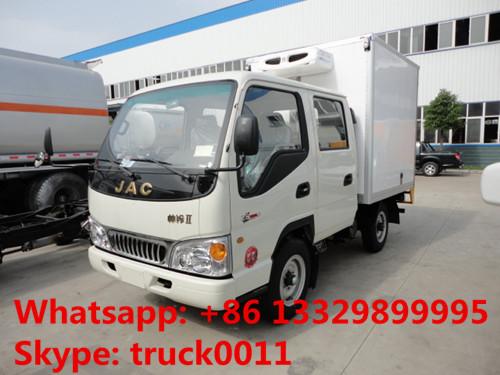

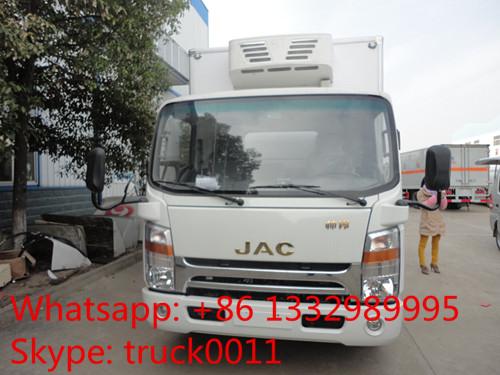

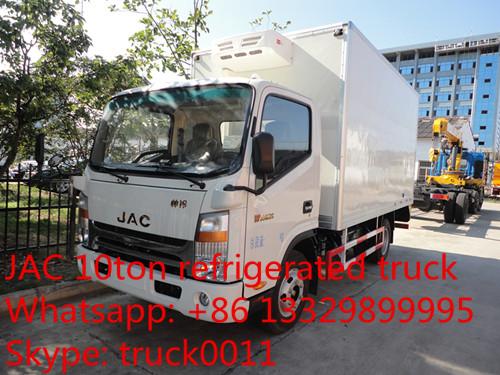

More pictures of hot sale JAC brand 4*2 cold room trucks manufactured by Chengli Special Automobile Co., Ltd. as below
JAC brand cold room truck for sale
High quality factory price jAC brand refrigerated truck for sale
Hot sale JAC brand 7tons freezer van truck for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
