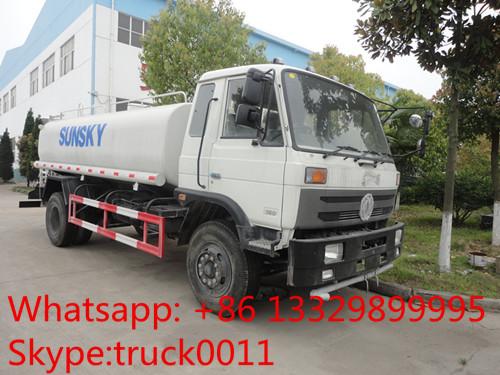

dongfeng 190hp RHD/LHD 15,000L water tank for sale, factory direct sale best price dongfeng 190hp water cistern truck,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of tank trucks in China. And water tank truck is one of CLW developed products manufactured by Chengli Special Automobile Co., Ltd. CLW high quality and competitive price water tanks are the No.1 selling in China local market and exported to so many countries all over the world.
If you're interested in our water sprinkling truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com.
The main parameters of hot sale dongfeng 153 15,000L RHD/LHD water tank manufactured by Chengli Special Automobile Co., Ltd.
| Product | Dongfeng 153 Watering Truck | |
| Chassis type | EQ1141KJ | |
| Cubage (T |
12-15cbm | |
| Parameters | Overall dimension length/width/height (mm) | 8020×2470×3050 |
| GVW(kg) | 16000 | |
| Kerb Mass(kg) | 7005 | |
| Approach angle/ Departure angle(mm) | 22/12 | |
| Front suspension/rear suspension(mm) | 1245/2275 | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 80 | |
| Engine | Type | B190 33 |
| Displacement/Power(kw) | 5900cc/140kw(190hp) | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 4-in-line, 6-in-line | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1810/1800 | |
| Front axle | 5 Ton | |
| Rear axle | 10 Ton | |
| Steering gear | Duel-armed steering wheel, recirculation ball steering | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Clutch | Uniwafer, dry diaphragm spring clutch | |
| Braking system | Brake fluid system, drum brake Chose to fix air braking. | |
| Cab | Non-longhead, one and half row | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00-20 | |
| Air-condition | Choose to fix | |
| Watering system | pump | Self-priming centrifugal pump |
| Special performance parameters | Watering width | ≥15 |
| Watering gun range | ≥28 | |
| Vertical suction range | ≥7 | |
| Watering pressure | 250-450KPa | |
| Watering | 0.2-2l/ | |
| Pump lift | 90m | |
| Suction time | <5min | |
| Flow rate | 60 m3/h | |
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
