4*4 all wheels drive water tank, dongfeng 4*4 water sprinkling tanker truck for sale, best price cistern truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water tank, water truck, etc. in China. We could manufacture and sell Dongfeng brand water truck, Foton water tank, FAW water truck, forland portable water truck, HOWO water truck, ISUZU cistern truck, Yuejin water sprinkling truck, etc. More information, please feel free to contact with Ms. Anita Deng.
If you're interested in our water sprinkling truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

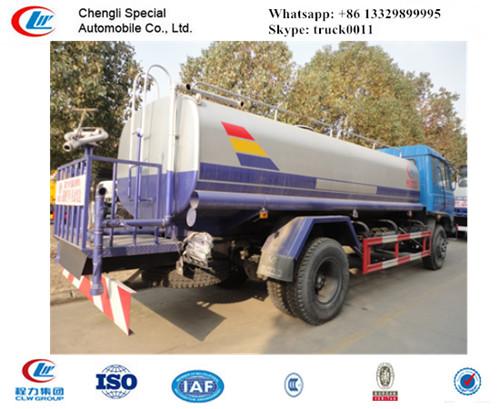

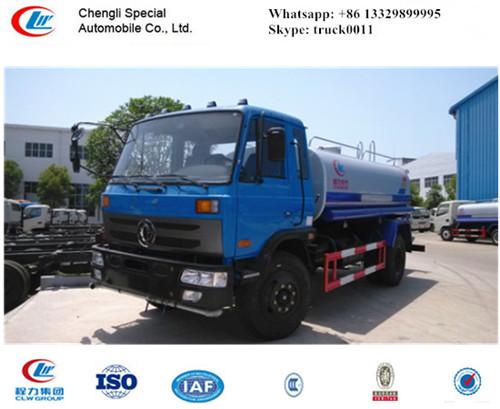

More pictures of dongfeng 4*4 10cbm water truck as below.
|
Product |
Dongfeng 145 4*4 Water Truck |
|
|
Chassis type |
EQ1110 |
|
|
Cubage (T |
10,000L |
|
|
Parameters |
Overall dimension length/width/height (mm) |
7500×2470×3050 |
|
GVW(kg) |
11495 |
|
|
Kerb Mass(kg) |
6800 |
|
|
Approach angle/ Departure angle(mm) |
27/13 |
|
|
Front suspension/rear suspension(mm) |
1250/2300 |
|
|
Fuel Type |
diesel |
|
|
Fuel Consumption/100 km |
23L |
|
|
Max Speed |
90 |
|
|
Engine |
Type |
B170 33 |
|
Displacement/Power(kw) |
5900cc/123kw(170hp) |
|
|
Manufacturer |
Dongfeng Cummins Engine Co.,Ltd |
|
|
Type |
4 cylinders in-line, inter-cooling |
|
|
Chassis |
Drive Type |
4×2 |
|
Wheelbase(mm) |
3950 |
|
|
Tread(front/rear) |
1810/1800 |
|
|
Front axle |
3.6 Ton |
|
|
Rear axle |
9 Ton |
|
|
Transmission |
5 forward gear,1 reverse gear, mechanical transmission |
|
|
Clutch |
Uniwafer, dry diaphragm spring clutch |
|
|
Braking system |
Brake fluid system, drum brake Chose to fix air braking. |
|
|
Cab |
Non-longhead, one and half row |
|
|
Number of spring axle(front/rear) |
8/11+8 |
|
|
Tire Type |
9.00-20 |
|
|
Air-condition |
Choose to fix |
|
|
Watering system |
pump |
Self-priming centrifugal pump |
|
Special performance parameters |
Watering width |
≥15 |
|
Watering gun range |
≥28 |
|
|
Vertical suction range |
≥7 |
|
|
Watering pressure |
250-450KPa |
|
|
Watering |
0.2-2l/ |
|
|
Pump lift |
90m |
|
|
Suction time |
<5min |
|
|
Flow rate |
60 m3/h |
|
The main feathers of CLW high quality and competitive price water truck as below.
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
