hot sale dongfeng 6*4 Euro 3 210hp diesel 18cbm-22cbm water truck, factory sale best price dongfeng 22m3 cistern truck
hot sale dongfeng 6*4 Euro 3 210hp diesel 18cbm-22cbm water truck, factory sale best price dongfeng 22m3 cistern truck
Technical parameters of dongfeng 6x4 water sprinkling truck
|
Dongfeng 6x4 water truck16000-22000L |
||
|
Product Name |
Dognfeng6x4 water truck |
|
|
Product Model |
CLW5251GSS3 |
|
|
Chassis model |
EQ1258KB3GJ |
|
|
Payload |
20cbm |
|
|
Curb weight(Kg) |
9005 |
|
|
Drive Model |
6x4 |
|
|
Drive Type |
Left-hand (optional) |
|
|
Vehicle Body Color |
Red,Yellow,white(Optional) |
|
|
Engine |
Brand |
Cummins |
|
Model |
B210-33 6 cylinder in-line with water cooling& inter-cooling |
|
|
Displacement(L) |
5900 |
|
|
Max.Power(kW) |
155 |
|
|
Rated power Rev(RPW) |
2500 |
|
|
Maximum Torque(N*m)/Rev(r/min) |
700/1500 |
|
|
Fuel consumption |
L/100km |
23.7/diesel |
|
Clutch |
Model |
Φ395 single diaphragm spring |
|
Transmission |
Brand |
datong or dongfeng |
|
Model |
Datong 6 speed( 6 forward and 1 reversemechanical) Or dongfeng 8 speed( 8 forward and 1 reversemechanical) |
|
|
Rear Axle(drive axle)-Model |
10 tons (main reducer speed ratio:6.166) |
|
|
Front Axle-Model |
5 ton |
|
|
Cabin type |
Dongfeng one and half row |
|
|
Cabin |
Radio and so on,warmer,air condition (optional) |
|
|
Wheelbase (mm) |
4350+1300 |
|
|
Wheel/Tire |
Type |
Nylontire |
|
Model |
10.00-20 |
|
|
Tire number |
10+1 |
|
|
Oil Tank |
Volume(L) |
300 |
|
Dimensions |
Overall (mm) |
9950×2490×3350 |
|
(L×W×H) |
Body (CBM) |
20 |
|
Track |
Front track(mm) |
1940 |
|
Rear track(mm) |
1860/1860 |
|
|
Body |
Q235 carbon steel |
|
|
Axles loading (kg) |
7000/18000/18000 |
|
|
Front overhang/Rear overhang(mm) |
1245/3055 |
|
|
Approach/Departure Angle(°) |
28/10 |
|
|
No. of steel spring(front/rear) |
8/12 |
|
|
Max.speed(km/h) |
85 |
|
|
Max.slope of climb(%) |
30 |
|
|
Min.turning diameter(m) |
18 |
|
|
Mini.groud clearance |
240 |
|
|
Water truck detailed: |
||
|
1. Tank.is made of carbon steel Q235. 2.Equipped with front(rear,side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with CLW pump(suction lift>6m);Equipped with fire valve,water valve,and filter gauze 3. With front flushing, back sprinkle and side spray,high pressure gun in rear,Platform,two water pipe,it length is equal to the tank’s. 4.with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) 5. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
||
If you're interested in our water sprinkling truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com .

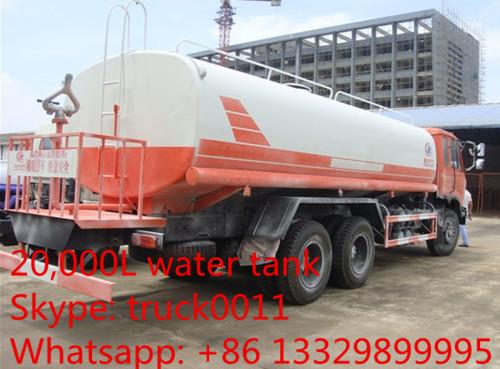

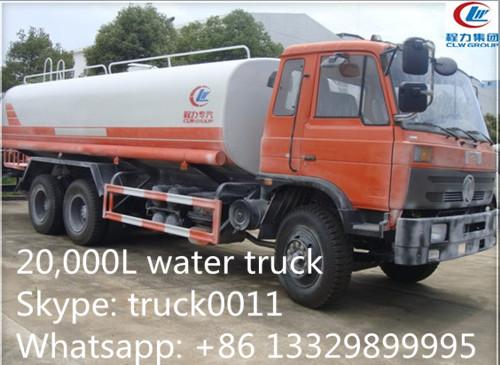

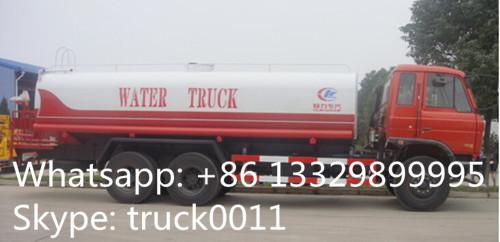

More pictures of hot sale dongfeng 210hp diesel 18m3-22m3 water tank truck as below
'
1. Suction≥7m Sprinkler width≥14m Range≥28m
2. with front spout, back spill and side spout function
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function.
6x4 drive type stainless steel water tank truck
As a professional manufacturer of special automobile, we can supply high quality Q235 carbon steel water truck , SUS304 stainless steel water truck, Aluminum alloy water truck. The drive type of ourwater tanker truck can be 4x2, 6x2,6x4,8x4,etc. The volume of our water tank is from 4000L to 30000L.
Water tank truck is also called water sprinkling truck, water spraying truck, waterig cart. The carbon steel water tanker truc is mainly used to road sprinkle the road, water the plant, priming the water from fire hydrant by water pump. The stainless steel water trucks which installed with food grade pipeline are mainly used to transport drink water to water shortage aera.
Main feature of our sprinkle tank truck
1.Front dash, side spraying& rear sprinkler, with fire hose coupling, self-discharge valve.
2.Installed rear working platform with rotatable water cannon.
3.Water can be adjusted to heavy rain, moderate rain, drizzle & mist.
4.The sprinkler truck can be used as pesticide spraying truck as long as install the pesticide spraying device.
This parameter list is the standard type of truck for this chassis, if you have any other special requires such as you need to add some other components for the truck, please tell us, we will try our best to meet any of your demand.
By the way, You can tell us you buy the truck for what kind of work, and used in what kind of circumstance, so we can give you more suggestions for what kind of truck meet your requirement best.
