Foton Auman 4*2 LHD 20m high altitude operation truck for sale,FOTON brand 20m overhead working platform truck for sale
Foton Auman 4*2 LHD 20m high altitude operation truck for sale,FOTON brand 20m overhead working platform truck for sale
FOTON 20m aerial working truck, adopts FOTON AUMAN series 20m aerial working platform original chassis, ISDe 185 40 Euro4 185hp engine. 5000mm wheelbase, one row and a half flattop driver cab, datong 6 speed transmission, 5ton front bridge, 10ton rear bridge, 250mm truck structure, 10.00-20 tyre, air-cut brake, etc.
The max lifting height of FOTON aerial working truck is 20m, 3 sections crank arm expandable lifting device structure, 4 sets outriggers; and the max lifting mass is 1000kg, the bearing mass of the working bucket is 200kg, 360 degree full slewing, etc.
The aerial working platform manufactured by Chengli Special Automobile Co., Ltd. adopts JMC, dongfeng, FOTON, ISUZU, etc. famous brand chassis. Using the high strength manganese steel as the main supporting structure units for the upper parts, having the functions of limit space for the upper and down arm, double interlock, engine stop in emergency and start again, etc. making the safety. The aerial working truck can be chosen upper, down and middle part operation, flexible. The aerial working platform adopts the leading technique, that is turntable flexible folded arm, at the same time, the customers can chosen the crane arm, one truck with multipurpose.
The working height of the aerial working platform is among 14m to 30m. The rated mass of the platform is 200kg., the lifting arm can 360 degree slewing, can be operated one the working bucket and revolving stage, etc.
If you're interested in our lpg gas truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of ISUZU 100p 14-16m aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| ISUZU 100P 14m-16m aerial working truck | |||
| Total mass(kg) | 5330 | Curb mass(kg) | 5005 |
| Rated mass(kg) | Chassis model | QL10703HWRY | |
| Driver cab person | 2+3 | Max speed(km/h) | 95 |
| Approach/departure angle(°) | 24/13 | Front/rear suspension(mm) | 1015/1975 |
| Overall dimension(mm) | 6790X1990X3150 | Cargo body dimension(mm) | XX |
| Axles | Axle load(kg) | 1590/3740 | |
| Tyre | 7.00-16 14PR,7.00R16 14PR | Tyre nos. | 6 |
| Front tread(mm) | 1504 | Rear tread(mm) | 1425 |
| Wheelbase(mm) | 3360 | Springs | 8/6+5 |
| Emission standard | GB17691-2005(Euro Ⅳ),GB3847-2005 | Fuel type | Diesel |
| Engine model | Manufacturer | Displacement | Power |
| 4JB1CN | ISUZU | 2771 | 72 |

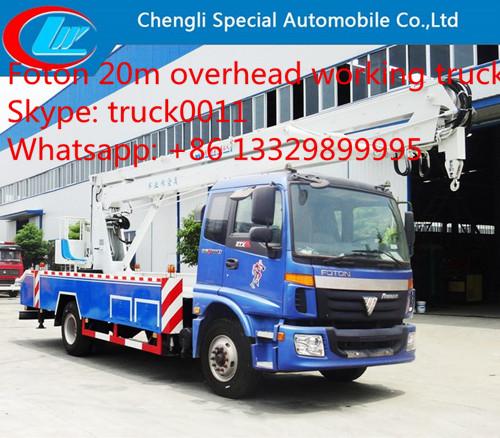

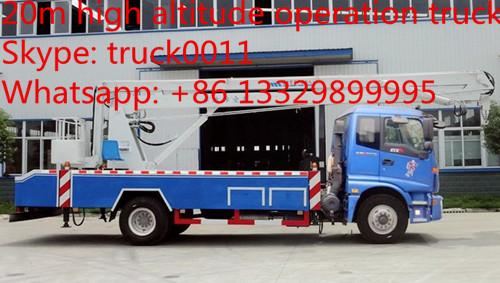

More pictures of hot sale 20m foton auman aerial working platform truck as below.
The advantages of the aerial working truck,
Using the high strength manganese steel as the main supporting structure units for the upper parts, having the functions of limit space for the upper and down arm, double interlock, engine stop in emergency and start again, etc. making the safety. The aerial working truck can be chosen upper, down and middle part operation, flexible. The aerial working platform adopts the leading technique, that is turntable flexible folded arm, at the same time, the customers can chosen the crane arm, one truck with multipurpose.
The aerial platform is with simple structure, easy operation, safe and reliable, handsome looking, the safe and high working efficiency aerial working equipments. The aerial working platform equips with 4 set hydraulic H shape outriggers, assuring the safety and reliability when operating. The aerial working truck is suitable for installing and maintaining municipal, lamping, advertisements, communications, photo, landscaping, ports, etc.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
