JMC high quality and competitive price 3 cubic meters sewage suction truck for sale, China best price 3m3 vacuum truck
JMC high quality and competitive price 3 cubic meters sewage suction truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of septic tank truck, vacuum truck in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply dongfeng brand sewage suction truck, ISUZU brand vacuum truck, JAC brand sludge tank truck, HOWO brand septic tank truck, Forland sewage suction truck, etc. And the volume of the septic tank trucks manufactured by Chengli Special Automobile Co., Ltd. is from 3 cubic meters to 18 cubic meters. More information, please feel free to contact with Ms. Anita Deng.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale JMC brand 3-5cubic meters vacuum truck manufactured by Chengli Special Automobile Co., Ltd. as below
|
Item |
unit |
parameter |
|||
|
Vehicle model |
|
CLW5080GXW3 Sewage Suction Truck |
|||
|
Chassis model |
|
JX1060TG23 | |||
|
Overall dimensions |
mm |
5960×1920×2420 | |||
|
|
Factual cubage |
L |
3500-4000 |
||
|
GVW |
kg |
Appro×5790 |
|||
|
Rated loading capacity |
Appro×2500 |
||||
|
Mass in working order |
Appro×3160 |
||||
|
Body internal dimensions |
mm |
|
|||
|
Wheel base |
3360 |
||||
|
F/R track base |
1015/1585 | ||||
|
Approach/departure angle |
° |
27/18.5 | |||
|
Exhaust/hp |
ml/kw |
2771/85,75 |
|||
|
Max speed |
km/h |
100 |
|||
|
Tire specification |
7.00R16LT |
Engine type |
JX493ZLQ3 |
||
|
Traction system |
4×2 |
transmission |
5-speed with over drive |
||
|
Number of axles |
2 |
Electric system |
24v |
||
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
||
|
Equipment |
Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment Time for full sucktion<5min |
||||
|
Engine |
YunNei,diesel engine |
||||
And the special parts of the sewage suction trucks are vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.
the main advantages and the product description: the sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid, such as sewer, septic pool, swill, slops, feces and 8mm stone).

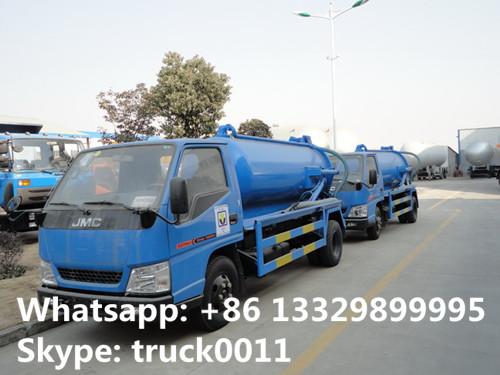

More pictures of hot sale JMC 3cubic meters vacuum suction truck as below.
And also we can design and produce multitpurse septic trucks upon request, such as spetic truck with snow shovel, septic truck with water cannon, etc. More detailed information, please feel free to Ms. Anita Deng.
Skype: truck0011
Whatsapp/wechat/Mob.: +86 13329899995
QQ: 504873236
