factory sale best price dongfeng tianjin 190hp vacuum sewage suction truck, hot sale dongfeng brand sludge tank truck
dongfeng 170hp/190hp 8cbm septic tank truck for sale, hot sale best price dongfeng 4*2 LHD vacuum sludge tank truck
The cesspoolage tank trucks manufactured by Chengli Special Automobile Co., Ltd. adopt Wugang GB high quality sheets. The functions of the sludge truck is pumping and delivering feces, mud, bulk oil, etc. liquids. equipped with the leading chengliwei vacuum pump, with feces view window, one discharging open, cleaning device, mobile hanger rod, with 5m length hose, oil separator, anti-overflow valve, metal coating tanker, etc. choosing to install over-flow warming alarm device, double pump, etc.
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h..
All of our trucks are approved ISO9001-200 International Quality System Certificate and CCC certificate. And “CLW” brand is the famous brand in China.
If you're interested in our sewage suction truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main parameters of hot sale dongfeng tianjin 6m3 sewage suction trucks manufactured by Chengli Special Automobile Co., Ltd. as below
|
Main specifications |
||||||||||
|
Product model,name |
dongfeng tianjin 4*2 6cbm Sewage suction truck |
|||||||||
|
Gross weight(Kg) |
12490 |
Driving type |
4*2 |
|||||||
|
Payload (Kg) |
6000 |
Overall dimension (mm) |
7100×2430×3200 |
|||||||
|
Curb weight(Kg) |
6295 |
Cab seats (man) |
3 |
|||||||
|
Approach/departure angle (°) |
16/18 |
Front/rear hang(mm) |
1430/1870 |
|||||||
|
Axle No. |
3 |
Wheelbase (mm) |
3800,3650 |
|||||||
|
Axle load(Kg) |
5200/7290 |
Max speed(Km/h) |
90 |
|||||||
|
Chassis specifications |
||||||||||
|
Chassis model |
DFL1120B1 |
Manufacture |
Dongfeng motor company |
|||||||
|
Brand name |
Dongfeng |
Overall dimension (mm) |
7090,6400×2370×2760 |
|||||||
|
Tire specification |
9.00-20 |
Tires No. |
10+1 |
|||||||
|
Steel spring number |
7/9+6,8/10+8 |
Front track(mm) |
1880 |
|||||||
|
Fuel type |
Diesel |
Rear track(mm) |
1800,1860 |
|||||||
|
Emission standard |
Euro Ⅲ |
Gear box |
6 forward&1reverse |
|||||||
|
Cab |
D530 flat a row of half flat bridge, electric glass elevator, central door lock, single dashboard, with A/C |
|||||||||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|||||||
|
B170 33 |
Dongfeng Commins Engine Co.,Ltd |
5900 |
125 |
|||||||
|
Tank body |
||||||||||
|
Tank capacity(m³) |
8 |
Tank material |
Q235 carbon steel |
|||||||
|
Main Characteristic |
||||||||||
|
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5min; suction width: ≥ 8m. Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects. |
||||||||||

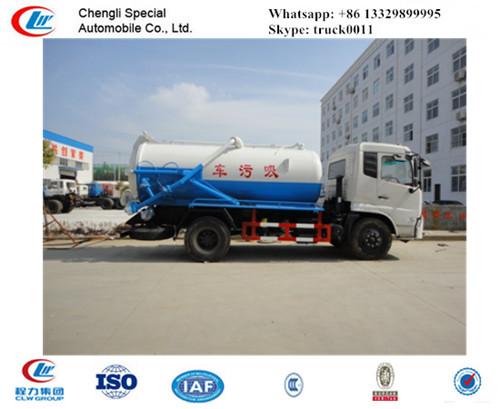

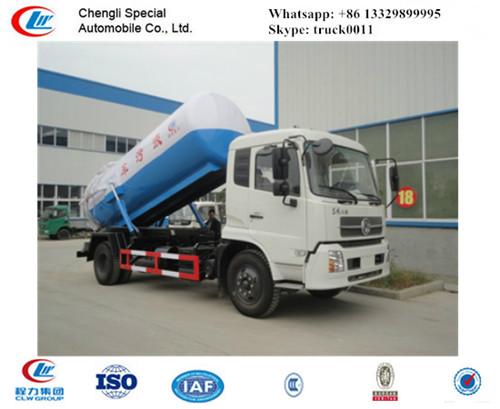

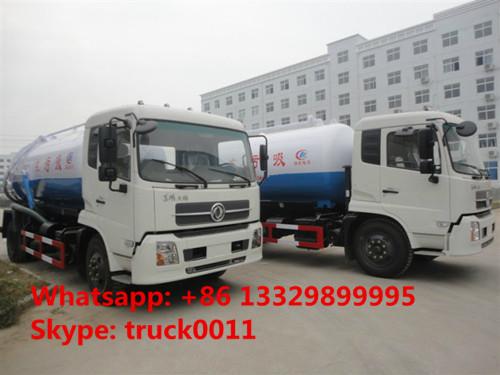

More pictures of hot sale dongfeng tianjin 170hp vacuum suction truck as below.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
