dongfeng 170hp 7000L sewage suction truck for sales, septic tanker truck for exported
170hp DONGFENG 4*2 Sewage Truck 7000L
Sewage Truck 7000Lis mainly used for sewage suction, transportation and discharge of sewage from septic tand and sludge from drains. and also used for cleaning the drainage on the city underground sewers, the industrial pipes, walls and furthermore acts as a sprinkling when equipped with high pressure clean tank.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

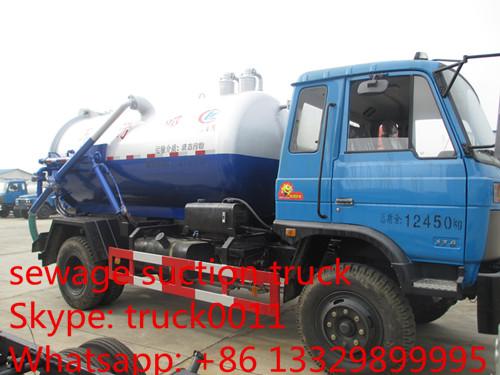

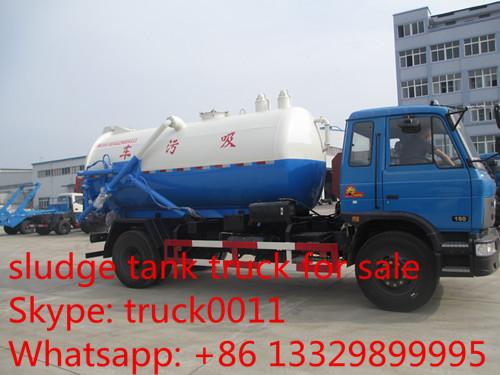

More pictures of CLW Brand sewage suction truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Basic equipment:PTO, Vacuum Pump,hydraulic sprayer, Hydraulic Cylinders,Multi-way valve, Pressure Gauge,Water-gas Seperator , Oil gas Seperator, Level Inspection Window, Suction Hose, Hose Real,inspect fecal window, gravity mouth, cleaningapparatus, fecal suction pipe, oil-water separators, overflow valveFecal suction gun, etc
Main Features:self-priming, self-discharging, high pressure flushing, high efficiency,Time for full suction<5min
Tanks material optional:carbon steel, stainless steel, epoxy resin anticorrosive processing(in order to contain partial chemical sewage or industrial wastewater).
More information, please feel free to contact Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995.
Skype: truck0011
QQ: 504873236
Main Parameterof170hp DONGFENG 4*2Sewage Truck 7000L
|
Main Technical Parameter |
|||
|
Product Model |
DONGFENGSewage Truck 7000L |
Overall Dimension(L*W*H)(mm) |
7400×2470×2850 |
|
Wheelbase(mm) |
3950 |
Fact volume(L) |
7000 |
|
Curb weight(kg) |
6300 |
Number of Axles |
2 |
|
Actual Payload(kg) |
6000 |
Approach/ departure angle (°) |
26/25 |
|
Steering Type |
LHD with Power steering |
Max Speed (km/h) |
90 |
|
Cab capacity |
3 |
Cab Type |
Single sleeper, air conditioning |
|
Chassis Parameter |
|||
|
Chassis Model |
EQ1110 |
Chassis manufacturer |
DONGFENG Motor Co., Ltd |
|
Gear Box |
6 shift |
Transmission type |
Manual |
|
Truck axle |
DONGFENG DENNA |
Traction Type |
4*2 |
|
Brake System |
Air brake |
Leaf Spring number |
8/11+8 |
|
Number of Tire |
6 with a spare |
Tire size/type |
9.00-20,9.00R20 |
|
Engine Parameter |
|||
|
Engine Model |
B170 33 |
Engine manufacturer |
DONGFENG Cummins |
|
Fuel type |
diesel |
Displacement(ml) |
5900 |
|
Emission stand |
Euro 3 |
Power(kw) |
125(170hp) |
|
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
|
Equipment & Performance & Features |
1. Sewage tank is equipped with8T vacuum pump,rear gravity mouth , inspect fecal window, Pressure gauge, hand-washing device |
||
|
2. Sewage Tank material: 5mm carbon steel |
|||
|
3. With dump function, rear door is controlled by hydraulic |
|||
|
Warranty |
12 months, from the date of supply |
||
