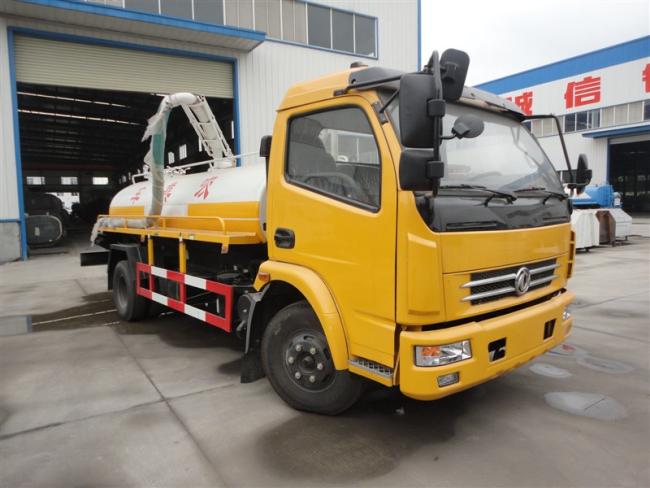

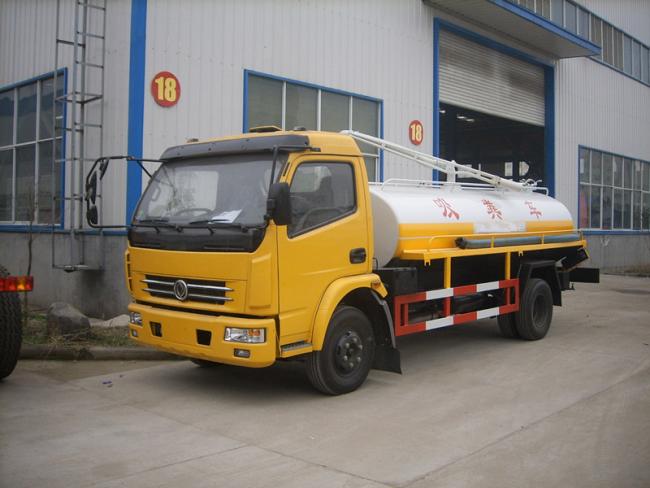

120hp DONGFENG 4*2 Vacuum Suction Truck 5 ton fecal suction truck for sale, good price Vacuum tanker vehicle for sale
120hp DONGFENG 4*2 Vacuum Suction Truck 5 ton fecal suction truck for sale, good price Vacuum tanker vehicle for sale
Our CLW brand Sewage Suction Tanker Trucks/sludge tanker truck/ septic tanker truck/ vacuum truck advantage:
We Chengli Special Autompbile Co., Ltd. is a professional manufacturer for many kind of special trucks . If you need our products, please feel free to contact Ms. Anita Deng.
1.Equipped with special vacuum pump,Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment,Time for full sucktion<5min
2. the Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3.the Sewage suction trucks oblique liquid, can suck full alarm device after full automatic alarm, prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing, extracting partial chemical sewage and waste water.
More information, please feel free to contact with us.
Email: truck0011@163.com
Website: www.trucksinchina.com
Whatsapp/Wechat/Mob.: +86 13329899995
the main technical parameters of dongfeng vacuum suction truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Main Technical Parameter |
|||
|
Product Model |
DONGFENGVacuum Suction Truck |
Overall Dimension(L*W*H)(mm) |
6800×2300×2500 |
|
Wheelbase(mm) |
3800 |
Tank volume(m3) |
6 |
|
Curb weight(kg) |
4705 |
Number of Axles |
2 |
|
Approach/ departure angle (°) |
22/12 |
Max Speed (km/h) |
95 |
|
Cab capacity |
2,3 |
Cab Type |
Single row, air conditioning |
|
Chassis parameter |
|||
|
Chassis Model |
EQ1090 |
Chassis manufacturer |
DONGENG Motor Co., Ltd |
|
Gear Box |
6 shift |
Transmission type |
Manual |
|
Steering Type |
LHD with power steering |
Traction Type |
4*2 |
|
Brake System |
air brake |
Number of Tire |
6 with a spare |
|
Leaf Spring number |
8/9+5,6/8+4 |
Tire size/type |
7.50-R16 |
|
Engine parameter |
|||
|
Engine Model |
CY4102-E3C
|
Engine manufacturer |
DONGFENG Chaoyang
|
|
Fuel type |
diesel |
Displacement(ml) |
3856 |
|
Emission stand |
Euro 2 |
Power(kw) |
91/124hp |
|
Operation System |
Electrically Hydraulic Control |
Electric system |
24V |
|
Equipment & Performance |
1.Basic equipment: inspect fecal window, gravity mouth, cleaningapparatus, fecal suction pipe, oil-water separators, overflow valve,Fecal suction gun,special vacuum pump |
||
|
2. Tank material: 5mm carbon steel(optional stainless steel) |
|||
