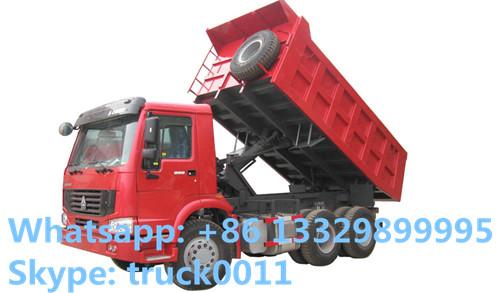

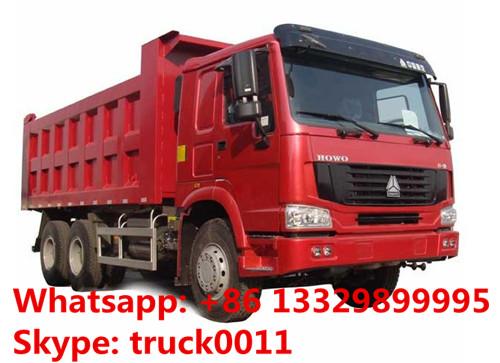

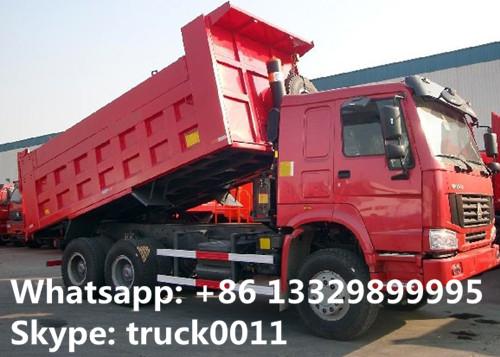

factory sales SINO TRUK HOWO 6*4 LHD/RHD 30ton 336hp dump truck, hot sale best price HOWO dump tipper truck for stones
A dump truck is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could supply 3ton-10ton dump truck, 10ton-25ton tipper truck, 25ton-45ton dump tipper truck,etc.
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale HOWO 6*4 dump tipper truck as below
|
Main parameters |
|||
|
HOWO 6*4 Euro 2 25ton tipper truck |
|||
|
Overall dimension |
7835×2496×3170(mm) |
Cargo body dimension |
5200×2300×1200(mm) |
|
Total mass |
25000(Kg) |
Rated mass |
12650,12480(Kg) |
|
Curb mass |
12220,12390(Kg) |
Seating person |
2 |
|
Driver cab |
HOWO driver cab |
Front/rear suspens |
1500/1560(mm) |
|
Approach/departure angle |
19/30(°) |
Wheelbase(mm) |
3425+1350(mm) |
|
Axle load(kg) |
7000/18000(double axles) |
Max speed(km/h) |
75(km/h) |
|
Axle nos. |
3 |
Steel spring |
10/12 |
|
Tyre nos. |
10 |
Tyre |
12.00R20 |
|
Front tread |
2022,2041 |
Rear tread: |
1830/1830 |
|
Steering |
Power steering |
Gearbox |
HOWO 10 speed transmission |
|
Front Axle |
9ton |
Rear axle |
10ton wheel reducer rear axles |
|
Engine |
|||
|
Engine model |
Manufacturer |
Displacement (ml) |
Power (kw) |
|
WD615.69 |
SINO TRUK |
9726 |
247 |
|
Engine type |
4 strokes in line, 6 cylinders, inter-cooling, direct injection |
||
|
Fuel type |
Diesel |
Emission standard |
Euro 2 |
|
Cargo body van main parameters |
|||
|
Cargo body dimension(L*W*H)(mm) |
5200×2300×1200(mm) |
||
|
Material |
High quality carbon steel |
||
|
Thickness (mm) |
6mm thickness for side sheet and 8mm thickness for bottom sheet |
||
|
Cylinders |
High quality Double middle cylinders for middle lifting |
||
|
Door |
Rear door tipping |
||
More information, please feel free to contact Ms. Anita.
