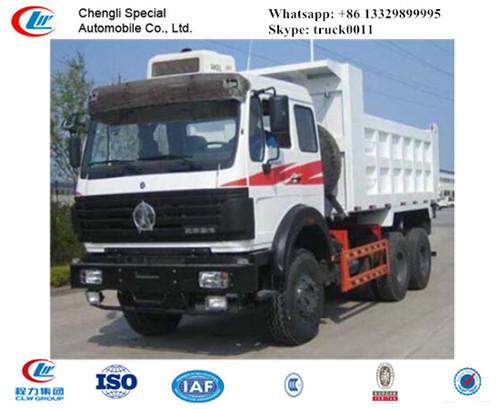

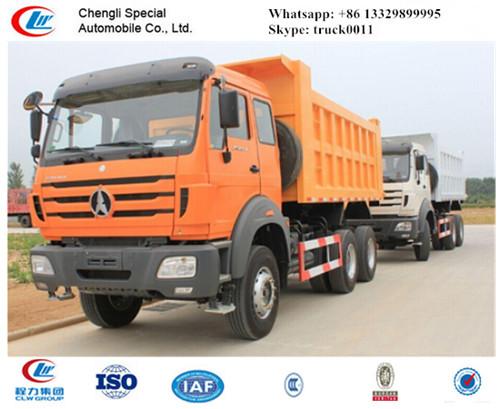

WEICHAI engine 340hp & 380hp North Benz Dump truck for sale, competitive price North Benz 6*4 LHD dump tipper truck

Main Specification

Model

ND3255B41J

Condition

New

Drive type

6×4

Brand

Beiben Dump Truck

Steering Wheel Type

LHD(Left hand drive) (RHD is in option)

Overall Dimension(mm)

8880×2500×3430

The total mass(Kg)

25000

Kerb weight(kg)

12200

Wheel base(mm)

4100+1450

Dimension of cargo body(mm)

L×W×H

5800/6000×2300×1500

Thickness of steel plate

Bottom: Side:

Capacity

Tipping system

HYVA Front tipping system

Fuel Type

Diesel

Engine

Type

Weichai brand,WP10.380E32

Inline six-cylinder,

water-cooled, four-stroke,

turbocharged inter-cooled

Direct injection

With the exhaust brake

Emission standard

EURO III

Horse power

380hp

Maximum output

280Kw @ 2200 rpm

maximum torque

1600N.m

Displacement(L)

9.726

Full load minimum fuel consumption rate

196g/kW.h

Cabin

NG80B Flat ceiling and Long Cab,

One sleeper,

Exterior trim: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.

Manual glass lift, adjustable steering wheel, manual door locks. with air-conditioning system,

Steering

ZJ120D driver sit at the Left hand side (LHD) ZF8098 is optional

Transmission

FAST mechanical type 12JS200T 12 Speed Transmission,12 forward and 2 reverse

Clutch

Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting

Front axle

front axle (7.5 ton), plate (disc) brake

Driving axle

drive axle (13ton) double reduction driving axle, inter-wheel differential lock, axle differential lock.

Speed Ratio:5.921 (5.263 is optional)

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and reel wheels

Engine brake: Engine exhaust brake(EVB)

TYRE Size

12.00R20 radial tyre

No. tire: 10+1 spare

Suspension system

Leaf spring type

Leaf Spring of Front/Rear

10/13

Air condition includes

YES

Fuel tank

300L Iron

Others

Power takeoff, Water tank guardrail, Draw hook, Desert air filter, simple rear axle fender

Color

As the customer request
