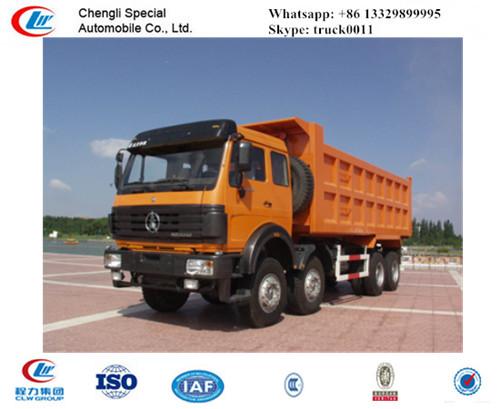

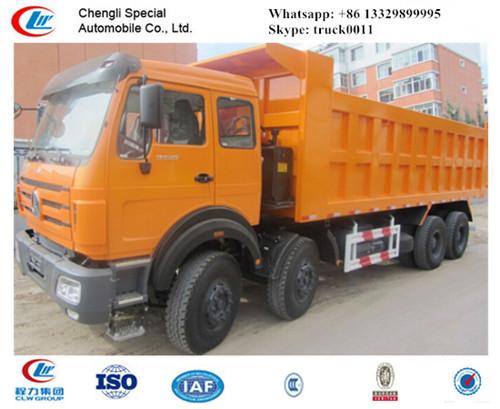

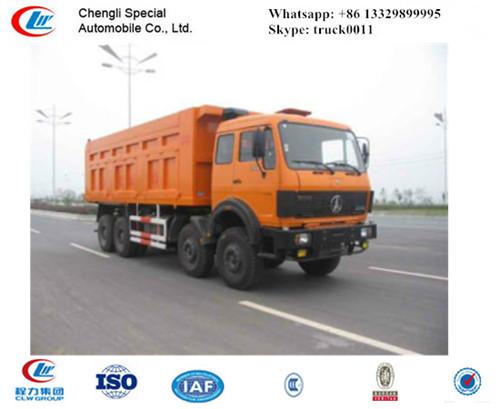

North Benz 50ton 380hp dump truck for sale, hot sale North Benz heavy duty 8*4 LHD 40tons dump tipper truck

NORTH BENZ 8X4 DUMP TRUCK LHD DRIVE

Traction

8x4

Driving type

LHD (RHD is option)

Cabin

NG80B (BENZ Technology),Long with one bed & A/C

Vehicle Main Dimensions

L-W-H(mm)

10380×2500×3484(mm)

Wheel base(mm)

1500+4150+1450

Wheel track(front/rear)(mm)

Front track (mm): 1995

Rear track (mm): 1800

Approach/Departure angle(°)

26/27(°)

Overhang (front/rear)(mm)

1410/1870(mm)

Tare Weight(kg)

14.98TONS

Total mass(kg)

31TONS

Front axle loading capacity

6.5Tons MAN

Rear axle loading capacity

13Tons MAN

Driving Speed(km/h)

90km/h

Engine

Brand

WEICHAI

Model

WP10.380E32

Emission

Euro III

Engine type

Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & inter cooling

Displacement

9.726 L /Diesel

Max. output

380hp@2200rpm

Max torque

1600NM@2200rpm

Gear Box

Brand

FAST

Model

12JS200T

Type

No.of speeds:12 forward, 2 reverse

steering

TAS85

Tire

12.00R20 (rim: 8.5-20)

Front axle

6.5 TONS MAN(steering axle)

Rear axle

13 TONS MAN(double Reduction driving axle, differential lock)

Spring

Heavy duty leaf Spring 12/12/13

Manufacture

BAOTOU BEI BENHEAVY-DUTY TRUCK CO.,LTD

Origin

P.R. CHINA

Body

Inner size(mm)

7600x2300x1100

Thickness of body steel(mm)

floor 8 front 6 side & back 4

Tipping type

Front lifting type
