95 Hp 4*2 DONGFENG 4*2 LHD Double cabs Dump Truck 4 ton, best price dongfeng chaochai 95hp mini dump tipper truck
95Hp 4*2 LHD DONGFENG Double Row Dump Truck 4 ton, dongfeng 4*2 LHD/RHD 3ton-5ton dump truck, factory sale mini dongfeng dump truck,
Double Row Dump truck is one kind of light and small dump truck, this chassis is produced by DONGFENG Automobile Co.,Ltd. It is small dump chassis, can load less than 6 ton.
Production notes :
1 DONGFENG 4*2 two row chassis, 95hp
2 Factory direct sale, high quality
3 Capacity:4-6m3
4 Max load 5 ton.
If you're interested in our dump truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

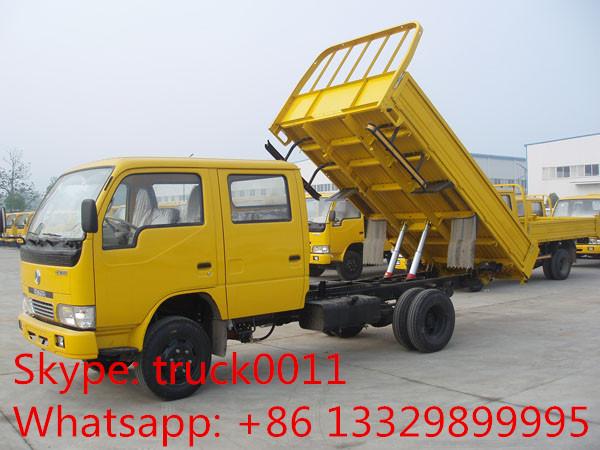

More pictures of dongfeng double rows dump truck as below

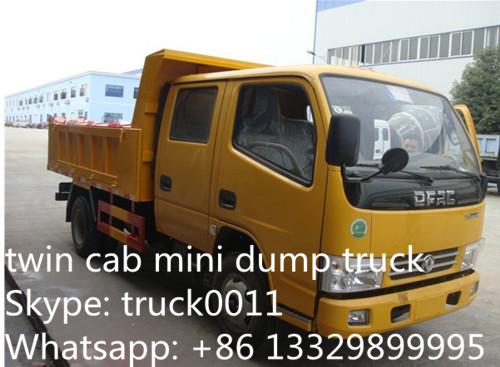

dongfeng double cabs dump tipper truck for sale

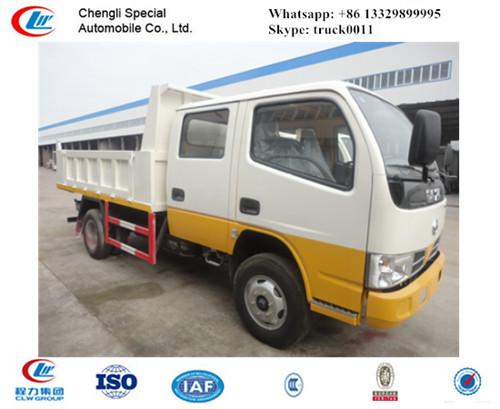

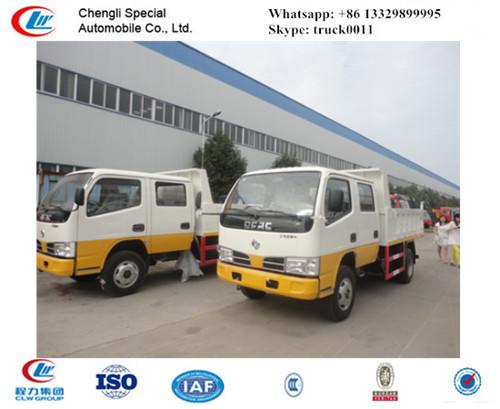

hot sale dongfeng brand 4*2 LHD tipper truck
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
Main parameter of 95Hp 4*2 LHD/RHD DONGFENG Double Rows Dump Truck 4 ton
|
Main Technical Parameter |
|||
|
Product Model |
DONGFENG Double Row Dump Truck |
Product Brand |
DONGFENG-CLW |
|
Wheelbase(mm) |
3300 |
Overall Dimension(L*W*H) |
5995×1940×2340 |
|
Front/ rear suspension(mm) |
1275/1470 |
Compartment Dimension(L*W*H)(mm) |
3300×1880×600 |
|
Curb weight(kg) |
2420 |
Axle number |
2 |
|
Approach/ departure angle (° ) |
24/23 |
Max Speed (km/h) |
80 |
|
Cab capacity |
2+3 |
Cab Type |
Flat proof, two row, air conditioning |
|
Chassis Technical Parameter |
|||
|
Chassis Model: |
DFA1041 |
Chassis manufacturer: |
DONGFENG Automobile Co., Ltd |
|
Gear Box |
5 shift (5 forward and 1 reverse) |
Transmission type: |
Manual |
|
Steering Type |
LHD |
Traction Type: |
4*2 |
|
Front axle Brake System |
drum type Air brake |
Leaf Spring number: |
8/9+5,6/8+4 |
|
Number of Tire |
6 with 1 spare tire |
Tire size/type |
7.00-16LT ,7.00R16LT |
|
Engine specification |
|||
|
Engine Model: |
4B28BTCI
|
Engine Brand |
CHANGCHAI Power |
|
Fuel type: |
Diesel |
Displacement(ml) |
2834 |
|
Emission stand |
Euro 3 |
Power(kw) |
70(95hp) |
|
Superstructure parameter |
1. 24V Electric system, electrically hydraulic operation control |
||
|
2. load Capacity:4m3-6m3 |
|||
|
3.Lifting type: Middle lifting type ,two cylinder, rear dump type |
|||
|
4. Material: floor 4mm side & back 3mm thickness carbon steel, |
|||
|
Warranty |
12 months, from the date of supply |
||
