dongfeng brand 6*4 LHD Cummins 210hp 20ton dump truck for sale, hot sale bezst price dongfeng 6*4 dump tipper truck
dongfeng brand 6*4 LHD Cummins 210hp 20ton dump truck for sale, hot sale bezst price dongfeng 6*4 dump tipper truck
The tipper truck is also called dumper , dumper truck, tipper, dump truck,etc. The dump truck mainly used to transport sand, gravel, stone, mineral,etc.
As a professional special vehicle manufacturer in China, dumper trucks manufactured by Chengli Special Automobile Co., Ltd. are mature and with many features. We can customize the dumper according to your requirement. According to the loading capacity, we have mini dump truck, heavy duty dump truck. According to drive type, we have 4x2 dump truck, 6x4 dump truck, 8x4 dump truck. According to chassis brand, we have dongfeng dumper truck, howo dumper, foton tipper truck, beiben tipper, jac tipper truck, etc.
The box of our dumper truck are made by high quality carbon steel. The thickness of cargo box can be side 3mm, bottom 4mm to side 8mm to bottom 10mm. You can select the thickness according to the goods you transport.
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale dump tipper truck as below
|
Vehicle Specifications |
|
|
Model |
Dongfeng dump truck, 20ton-25ton dump truck, hot sale dump tipper truck |
|
Type of vehicle |
6x4 |
|
Engine power |
210HP Cummins B210 engine |
|
Emission standard |
EUROII |
|
The total mass |
25000KG |
|
Dead weight |
6295KG |
|
Overall Dimension |
7200*2490*2980 (mm) |
|
Driving position |
RHD or LHD |
|
Cab |
Single Row with a sleeper |
|
Maximum driving speed |
90 (km/h ) |
|
Chassis&Add components |
|
|
Overall size ( L*W*H) |
7800*2480* 3350 (mm) |
|
Wheelbase |
3600+1300 (mm ) |
|
Track front |
1250(mm) |
|
Track rear |
1650 (mm ) |
|
Approach angle |
33(°) |
|
Departure angle |
22(°) |
|
Front /rear overhang |
1250/1920 (mm ) |
|
Color |
Blue & Yellow & White |
|
Engine |
|
|
Model |
B210 30 |
|
Power |
210 |
|
Kind of fuel |
Diesel |
|
Emission standard |
Euro II |
|
Axle |
|
|
Producer |
DONGFENG |
|
Axle Loading Capacity |
5Ton/13Ton x2 |
|
Cargo |
|
|
Dump mode |
End dump, double 110cylinder |
|
Body Dimension |
5600*2300*1200(mm ) |
|
Thickness |
side board =6 unit steel plate , bottom board= 8 unit steel plate |
|
Protector Material |
Q235 carbon steel |
|
Protector Section Dimension |
100*50*5 (mm) |
|
Ground Clearance |
470 (mm) |

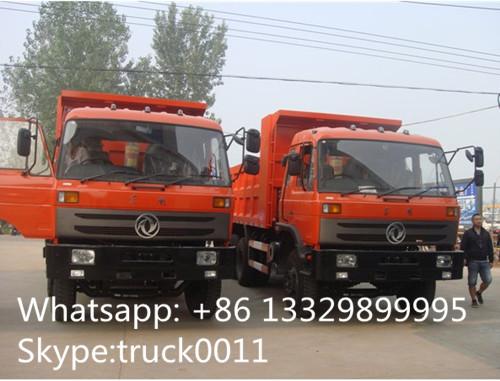

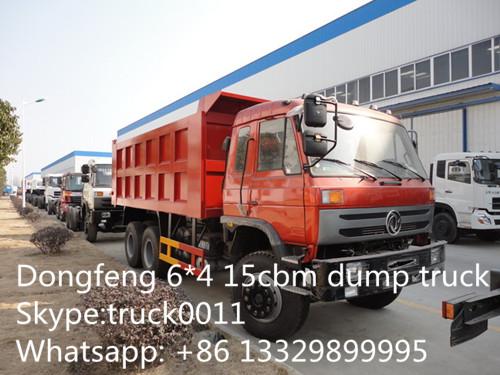

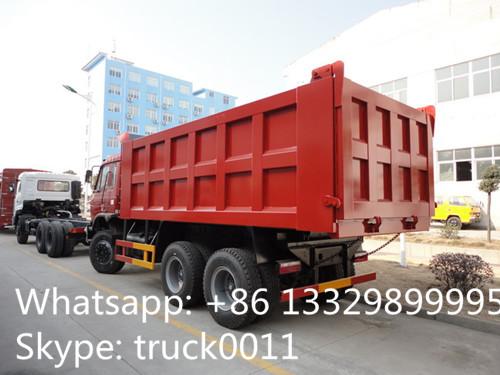

More pictures of hot sale dongfeng cummins 210hp dump trucks manufactured by Chengli Special Automobile Co., Ld.
