Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our dongfeng dump truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale FORLAND 4*2 LHD/RHD dump tipper truck as below
| BJ3032D3PEA/3P69J490Z(BA) | |||
| Engine model and emission | 4DW92-73(Euro II) | ||
| Engine type | Four-cylinder/ four-stroke/ water-cooling/ in-line/vertical/ self-absorption | ||
| Rated power of engine (kw/rpm) | 58/3200 | ||
| Maximum torque (N.m/rpm) | 188/(2000-2200) | ||
| Engine displacement (L) | 2.54 | ||
| Gearbox | |||
| Gearbox type | 5T26HF | ||
| Rear axle | |||
| Rear axle type | Dead axle full float axle | ||
| Rear axle load (T) | 2T | ||
| Rear axle speed ratio | 5.375 | ||
| Dumping type/oil cylinder size | Double-top sleeve barrel type/2TG1-80×355 | ||
| Cabin type/width (mm) | Left side driving, flat head,single-row/1695 | ||
| Drive form | 4×2 | ||
| Tire type/number | 6.50R16/6+1 | ||
| Brake | Service brake type | Drum type, double loop oil brake | |
| Parking brake type | Central drum type braking | ||
| Steering device | power steering | ||
| Weight parameter | |||
| Curb weight (Kg) | 2490 | ||
| Rated load capacity (Kg) | 2000 | ||
| Performance parameter | |||
| Maximum speed (no load)(km/h) | 90 | ||
| Maximum gradeability (%) | ≤25% | ||
| Minimum turning radius (m) | 6.2 | ||
| Minimum ground clearance (mm) | 202 | ||
| Maximum lift degree (°) | 45° | ||
| Dimension parameters | |||
| Overall dimensions (LxWxH)mm | 4830x1910x2390 | ||
| Internal van dimensions (LxWxH)mm | 3000×1760×450 | ||
| Van capacity (m³) | 2.3 | ||
| Wheelbase (mm) | 2600 | ||
| Front/rear wheel track (mm) | 1462/1456 | ||
| Front/rear suspension (mm) | 1090/1190 | ||
| Rated voltage (V) | 24 | ||
| Capacity of the fuel tank (L) | 75 | ||
| Standard configuration | Electronically controlled flameout, auxiliary brake, spare tire, adjustable steering wheel | ||
| Selective configuration | |||

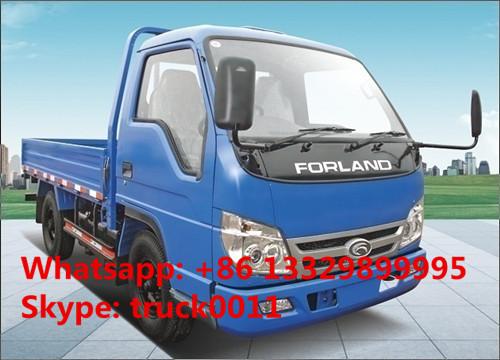

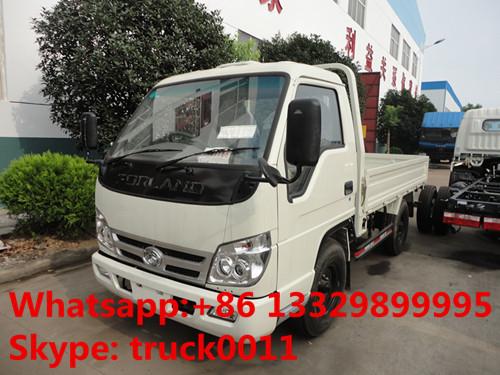

More pictures of forland mini dump truck as below.
