Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

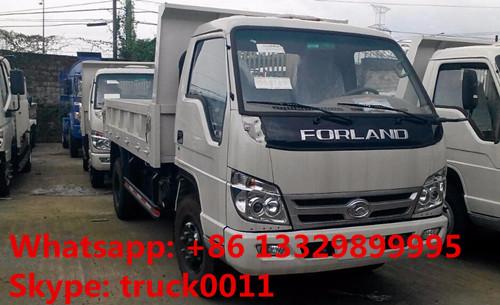

More pictures of hot sale forland 4*4 RHD dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main parameters of hot sale forland 4*4 LHD dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Items |
Descriptions |
Specifications and Types |
|
General |
Truck Name |
Forland 4*4 RHD dump truck for sale |
|
Drive Type |
4*4 RHD |
|
|
Fact Loading Capacity(kg) |
3,000kgs |
|
|
Curb Weight (kg) |
2475(Kg) |
|
|
Total mass(kg) |
4085kg |
|
|
Rated mass |
1480kg |
|
|
Overall Dimensions L*W*H(mm) |
5610*2070*2480 (mm) |
|
|
Engine |
Engine Model |
YN4100QB-2 |
|
Engine Brand |
Yunnei power |
|
|
Fuel Type |
Diesel |
|
|
Power |
66.2kw/90HP |
|
|
Emission Standard |
Euro Ⅱ |
|
|
Displacement(ml) |
3612 |
|
|
Engine type |
Four strokes in line, vertical 4 cylinders, inter-cooling diesel engine |
|
|
Chassis |
Chassis Brand |
Forland |
|
Front/Rear Axle Load(KG) |
1405/2680 |
|
|
Tire No. |
6 |
|
|
Tire Specification |
7.50-16 |
|
|
Wheelbase (mm) |
3100(mm) |
|
|
Axle No. |
2 |
|
|
Gear Box |
140 gearbox |
|
|
Steering Wheel |
Left hand drive |
|
|
|
Rear axle |
1069 rear axle |
|
|
Driver cab |
Forland 1900 flathead single row driver cab with air-conditioner |
|
Tipping system |
Box inner dimension(mm) |
3600*1800*400(mm) |
|
Box material |
Carbon steel,side: 3mm,bottom: 4mm |
|
|
Hydraulic cylinder position |
Double cylinders at the center of the truck bottom |
|
|
Discharge type |
Rear tipping |
