Foton forland 4*2 RHD 3ton-4ton mini dump truck, factory direct sale best price forland 3tons mini dump truck
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Main parameters as below
|
BJ3032D3PEA |
||
|
Engine |
||
|
Engine model and emission |
YN4102QB |
|
|
Engine type |
Four-cylinder,four-stroke,water-cooling,in-line |
|
|
Rated power of engine (kw/rpm) |
70/3100 |
|
|
Maximum torque (N.m/rpm) |
245/1800-2100 |
|
|
Engine displacement (L) |
3.76 |
|
|
Gearbox |
|
|
|
Gearbox type |
5T26 |
|
|
Rear axle |
|
|
|
Rear axle type |
Dead axle full float axle |
|
|
Rear axle load (T) |
3T |
|
|
Rear axle speed ratio |
6.142 |
|
|
Dumping type/oil cylinder size |
Single amplification mechanism/ HG-E110×440 |
|
|
Cabin type/width (mm) |
Right side driving, flat head,single-row/1695 |
|
|
Drive form |
4×2 |
|
|
Tire type/number |
7.50R16/6+1 |
|
|
Brake |
Service brake type |
Drum type, hydraulic braking |
|
Parking brake type |
Central drum type |
|
|
Steering device |
Power steering |
|
|
Weight parameter |
|
|
|
Curb weight (Kg) |
2930 |
|
|
Rated load capacity (Kg) |
3000 |
|
|
Performance parameter |
|
|
|
Maximum speed (no load)(km/h) |
72 |
|
|
Maximumgrade-ability(%) |
≥25% |
|
|
Minimum ground clearance (mm) |
≥200 |
|
|
Maximum lift degree (°) |
52.8° |
|
|
Dimension parameters |
|
|
|
Overall dimensions (LxWxH)mm |
4870×1910×2390 |
|
|
Internal van dimensions (LxWxH)mm |
3000×1800×500 |
|
|
Wheelbase (mm) |
2600 |
|
|
Front/rear wheel track (mm) |
1482.5/1480 |
|
|
Front/rear suspension (mm) |
1100/1160 |
|
|
Rated voltage (V) |
24 |
|
|
Capacity of the fuel tank (L) |
70 |
|
|
Standard configuration |
Spare tire, electronically controlled flameout, adjustable steering wheel,air-conditioner |
|

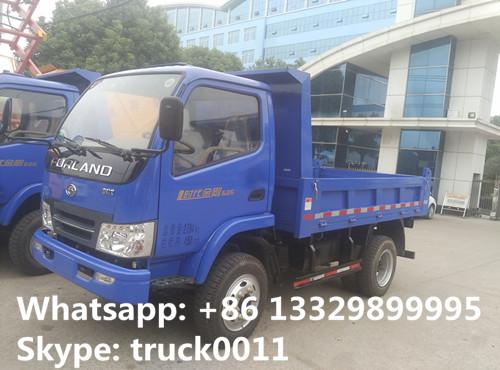

More pictures of Forland dump trucks as below
