340HP Heavy Duty Hongyan Genlyon Dump Trucks, hot sale best price HONGYAN brand dump tipper truck
A dump truck is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could supply 3ton-10ton dump truck, 10ton-25ton tipper truck, 25ton-45ton dump tipper truck,etc.
340HP Heavy Duty Hongyan Genlyon Dump Trucks for sale
1. LHD/RHD
2. Low oil consumption with strong horse power 340hp
3. Large load capacity 10-15ton
4.Volume of tanker 15-20cbm
5. One year for three key parts (engine ,gear-box, axle)
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Main parameter of Hongyan Genlyon 6*4 340hp dump truck/tipper
| Cabin | without sleeper or with one sleeper, 70° hydraulically tillable to the front | |||
| Vehicle Main Dimensions | (L x W x H)mm | 8790X2500X3510 | ||
| Wheel base (mm) | 3800+1400 | |||
| Wheel track (front/rear) (mm) | 1435/1685 | |||
| Approach/Departure angle(°) | 23/20 | |||
| Weight in KGS | Tare Weight | 12025 | ||
| Loading Capacity | 12780 | |||
| Front axles loading capacity | 1x7000 | |||
| Rear axles loading capacity | 2x18000 | |||
| Max. driving speed(km/h) | 80 | |||
| Engine | Brand | Hongyan Genlyon | ||
| Model | F2CE0681 | |||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Horse Power(HP) | 340HP | |||
| Emission standard | Euro II | |||
| Gearbox | 12 forwards & 2 reverse | |||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |||
| Steering Gear | hydraulic steering with power assistance | |||
| Fuel tank (L) | 350 | |||
| Tire | 12.00R20 All steel radial tire , 11 pieces including one spare tire | |||
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||
| Thickness | Side | 6mm in high tensile strength steel Q345/B |
| Front | 6mm in high tensile strength steel Q345/B | |
| Bottom | 8mm in high tensile strength steel Q345/B | |
| Dump body Size | (L x W x H) | 6205X1080X2300mm |
| Tipping hydraulics | Tipping type | Front tipping type |
| Tipping system | Complete set of HYVA brand hydraulics syste |

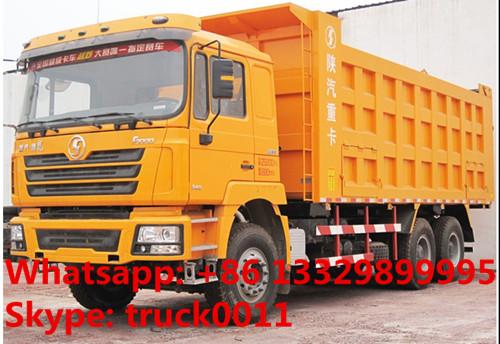

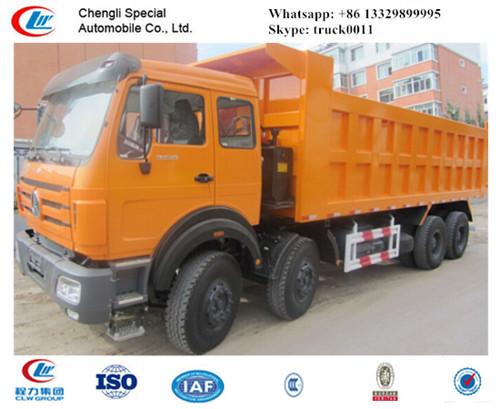

More pictures about different kinds of Dump Trucks
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China, such as SINO TRUK HOWO brand dump truck, DONGFENG brand tipper truck, FAW Brand dump tipper truck, ISUZU brand dump truck, FOTON AUMAN brand dump truck, NORTH BENZ dump tipper truck, etc.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
