factory direct sale best price CLW5820D mini dump truck, high quality CLW brand 3tons-5tons mini dump tipper truck
factory direct sale best price CLW5820D mini dump truck, high quality CLW brand 3tons-5tons mini dump tipper truck
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main parameters of CLW5820D mini dump truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Main parameters | |||
| CLW5820D mini dump truck for sale | |||
| Total massKg) | 4495 | Truck volume(m3) | 4cbm |
| Rated mass(Kg) | 1650 | Overall dimension(mm) | 5650×2000×2380 |
| Curb mass(Kg) | 2715 | Cargo body dimension(mm) | 3760×1880×600 |
| Driver cab person | 2 | Max speed(km/h) | 67.6 |
| Approach/departure angle(°) | 27/20 | Front/rear suspension(mm) | 1318 |
| Axle nos. | 2 | wheelbase(mm) | 3300 |
| Remark | Rear tipping type | ||
| Chassis main parameters | |||
| Overall dimension(mm) | 5650×2000×2380 | Tyre nos. | 6 |
| Approach/departure angle(°) | 27/20 | Tyre specification | 7.00-16 |
| Steel spring | 9/11+7 | Front tread(mm) | 1485 |
| Fuel type | Diesel | Rear tread(mm) | 1530 |
| Emission standard | GB18322-2002,GB19756-2005(Ⅱ) | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| YN33GP | Yunnei engine | 3298 | 58 |
CLW mini dump truck, adopts single row reserved driver cab, LHD or RHD driving type, 3300mm wheelbase, 5 speed transmission, 1058 front/rear bridge, 7.00 nylon tyre, etc. Air-conditioner and power steering are optional.
And the overall dimension of the CLW mini dump truck is 5650×2000×2380(mm), cargo body dimension is 3760×1880×600, adopting high quality GB carbon steel,etc.
Chengli Special Automobile Co., Ltd is the leading manufacturer and supplier of water tank, fuel tank, tipper, garbage truck, milk truck, sweeper truck, feed tank, bulk cement carrier, truck with crane, aerial working platform truck, LPG tank, mixer truck, LED truck, semitrailer, etc. in China since 2004s. And also Chengli Special Automobile design and produce the CLW low speed mini trucks upon request.
These CLW mini trucks are with high quality and competitive price, welcome all over the world. Chengli Special Automobile Co., Ltd. could design and produce CLW mini water tank, CLW mini fuel tank, CLW mini tipper, CLW mini cargo truck, CLW mini van truck, CLW mini garbage truck, CLW mini sewage suction truck, etc. These CLW mini trucks can be design as LHD or RHD upon request. Welcome more and more clients around the world visit our factory.

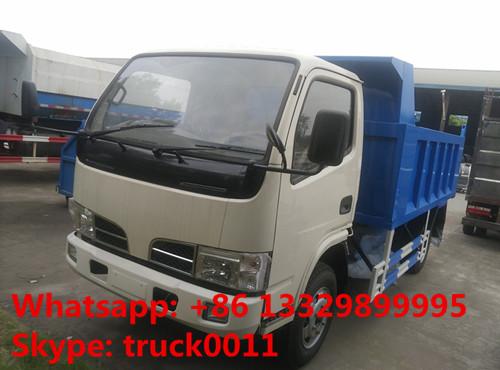

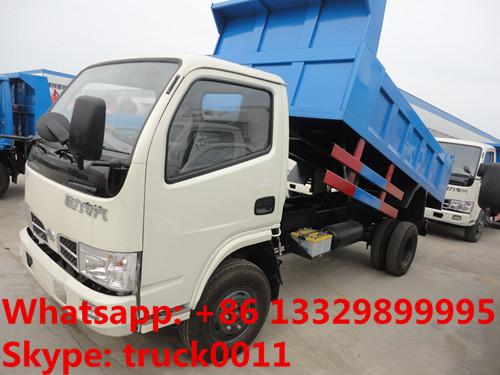

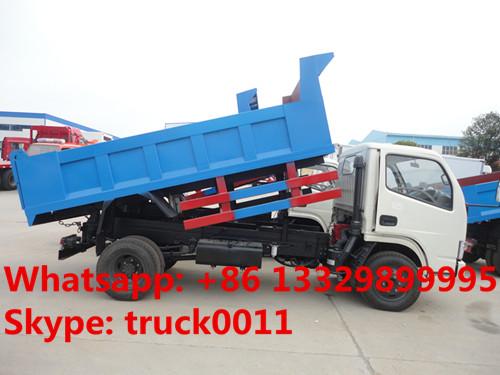

More pictures of hot sale CLW5820D mini dump trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
CLW brand mini dump truck for sale
best price CLW brand dump truck for sale
