ISUZU 4*2 6-8ton dump truck for sale, factory sale China cheaper prcie ISUZU brand dump tipprt truck
ISUZU 4*2 6-7ton dump truck, adopts ISUZU LHD ISUZU 700P one row and a half luxurious reversible driver cab with original air-conditioner and power steering, ISUZU MLD 6 speed transmission, 3815mm wheelbase, 4ton front bridge/7ton rear bridge, ISUZU 4HK1-TCG40 190hp 4 cylinders in line, high pressure common rail diesel engine, oil brake with vacuum pump booster, etc.
And the overall dimension of ISUZU single row dump truck is 6485×2220×2615(mm); the cargo body dimension is 4000×2120×800(mm). ISUZU 700P dump truck adopts high quality carbon steel, 3mm thickness for side sheet and 4mm thickness for bottom sheet. And the loading mass of the ISUZU dump truck is about 6-8ton.
If you're interested in our dongfeng dump truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

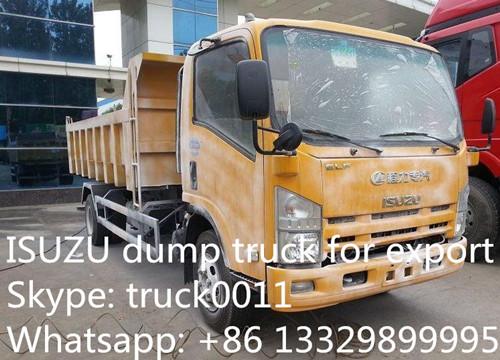

More pictures of ISUZU small LHD dump truck as below.
best price ISUZU brand dump truck for sale
|
Main parameters |
|||
|
ISUZU 4*2 6-8ton dump truck for sale |
|||
|
Total mass(Kg) |
10000 |
Truck volume(cbm) |
8 |
|
Rated mass(Kg) |
4865 |
Overall dimension(mm) |
6485×2220×2615 |
|
Curb mass(Kg) |
4940 |
Cargo body dimension(mm) |
4000×2120×800 |
|
Driver cab person |
3 |
Max speed(km/h) |
100 |
|
Approach/departure angle(°) |
21/27.4 |
Front/rear suspension(mm) |
1110/1560 |
|
Axle nos. |
2 |
Wheelbase(mm) |
3815 |
|
Axle load(Kg) |
3350/6650 |
Driver cab |
ISUZU 700P one row and a half luxurious reversible driver cab with original air-conditioner and power steering |
|
Chassis main parameters |
|||
|
Chassis model |
QL11009KARY |
Manufacturer |
ISUZU |
|
Overall dimension(mm) |
6980×2170×2330, |
Tyre nos. |
6 |
|
Transmission |
ISUZU MLD 6 speed transmission |
Bridge |
4ton front bridge/7ton rear bridge |
|
Approach/departure angle(°) |
21/13 |
Tyre specification |
8.25-20-14PR |
|
Steel spring |
8/10+6 |
Front tread(mm) |
1680 |
|
Fuel type |
Diesel |
Rear tread(mm) |
1650 |
|
Emission standard |
Euro 4 |
||
|
Engine main parameters |
|||
|
Engine model |
Manufacturer |
Displacement (ml) |
Power (Kw) |
|
4HK1-TCG40 |
ISUZU |
5193 |
139 |
|
Engine type |
4 cylinders in line, high pressure common rail diesel engine |
Brake |
Oil brake with vacuum pump booster |
|
Cargo body main parameters |
|||
|
Cargo body dimension (L*W*H)(mm) |
4000×2120×800 |
Material |
High quality carbon steel |
|
Thickness (mm) |
3mm thickness for side sheet; 4mm thickness for bottom sheet |
Dumping type |
Rear door tipping with twin cylinders in the middle |
More information, please feel free to contact with Ms. Anita Deng.
Skype: truck0011
Whatsapp/wechat: +86 13329899995
QQ: 504873236
