factory direct sale 18m3 self-discharging bulk grains farm truck, best price food grains transfering truck for sale
factory direct sale 18m3 self-discharging bulk grains farm truck, best price food grains transfering truck for sale
The hot sale bulk grains delivery truck is with the truck model of CLW5100ZLSB4. And the overall dimension of the van truck for bulk grains is 5000*2360*2100(mm). And the overall dimension of the whole bulk grains delivery truck is 7400×2390×3590mm. And the real loading capacity is 18 cubic meters.
According to the density of different grains, the real load is different, such as rice is about 10ton and the wheat is 12.5ton. And sealed van volume is 20cubic meters, and the real loading capacity is 18-19cbm. The sucking hose is 10m-15m, and the discharging speed is about 8-10ton/hour.
This bulk grains truck adopts dump truck chassis, sealed van, Pneumatic conveying system, Pulse dust removal system, hydraulic driving system, and tipping device, etc. And the real loading capacity is 18/20cbm, and the lifting height is 5.8m, 10-12m sucking hose, and the sucking speed is up to 0.25cbm/min.
And we can design and produce the different truck chassis grains van trucks upon request.
we can also design and produce Grains suction machine, which is used for sucking rice, wheat, corn, bean, peanut, melon seeds and other Granular materials, etc. mainly for delivering and transferring rice plants, flour plants, grain depots, etc.
If you're interested in our bulk grains transported vehicle, please feel free to send email to truck0011@163.com or talk to Anita, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Main parameters of hot sale Forland 18cubic meters bulk grains transported truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Forland 18cubic meters bulk grains transported truck for sale (CLW5120ZLS4) | |||||||
| Product name | bulk grain delivery truck for sale | Chassis model | BJ1102VDPEA-G1 | ||||
| Engine | Manufacturer | Displacement(ml) | Power(kw) | ||||
| YN38CRD1 YC4D130-41 |
Yunnei power Yuchai |
3760 4200 |
95 96 |
||||
| Emission standard | Euro 4/ Euro 3/Euro2 | Fuel type | Diesel | ||||
| Overall dimension | 7400×2360×3550(mm) | Steering type | Power steering | ||||
| Total mass | 9935(Kg) | Rated mass | 2300(Kg) | ||||
| Curb mass | 7440(Kg) | Max speed | 80(km/h) | ||||
| Approach/departure angle | 29/14(°) | Front/rear suspension | 1175/2325(mm) | ||||
| Axle load | 3775/6160 | Wheelbase | 3900(mm) | ||||
| Alxe nos. | 2 | Steel spring | 9/11+8 | ||||
| Fuel consumption | 22.94/23.07 | Tyres | 8.25-20*6+1 | ||||
| Gearbox | 5 speed gearbox | Rear axle | 8.5tons 1092 rear axle | ||||
| Driver cab | Ait cut brake with 250mm double layers boom | Driver cab | Forland 1860mm one row and a half turnover driver cab with power steering and warm air | ||||
| Front tread | 1750mm | Rear tread | 1654mm | ||||
| Special devices | Hydraulic gear pump | Techanical data | Sealed grain van volume | 20cbm | |||
| Hydraulic motor | 1 unit | Real grain van volume | 18-19cbm | ||||
| High pressure fan | 1 unit | Sucking pipe length | 10-15m | ||||
| Hydraulic control valve | Sucking speed | 8-10T/h | |||||
| dust catcher | 1 unit | Overall dimension(mm) | 7400×2360×3550(mm) | ||||
| Inlet pipe | 1 unit | Grain van dimension (mm) | 5000*2360*2100 | ||||
| Loading capacity for wheat(kgs) | 11,000-12,000kgs | Loading capacity for rice(kgs) | 10,000kgs | ||||

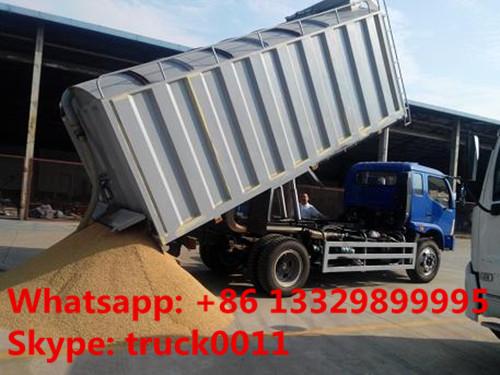

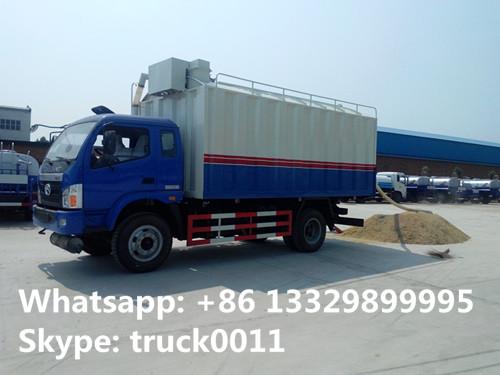

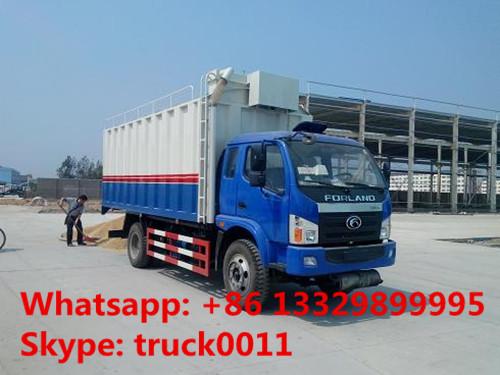

More pictures of bulk grains trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of special purpose vehicles in China, such as water tanker, fuel tanker, milk tanker, bulk feed delivery truck, bulk grains truck, chemical liquid tank, sewage suction truck, refrigerated truck, truck with crane, mixer truck, high altitude operation truck, garbage truck, bulk cement powder carrier, lpg gas tank, lpg gas trailer, dump truck, etc. More information, please feel free to contact with Ms. Anita.
