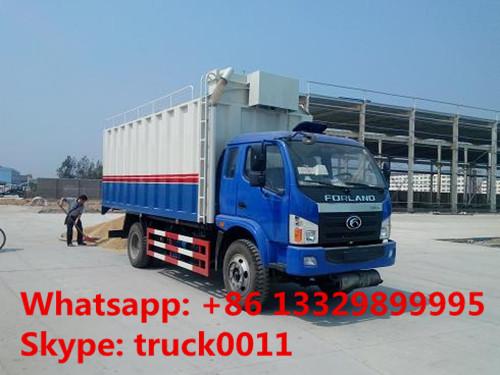

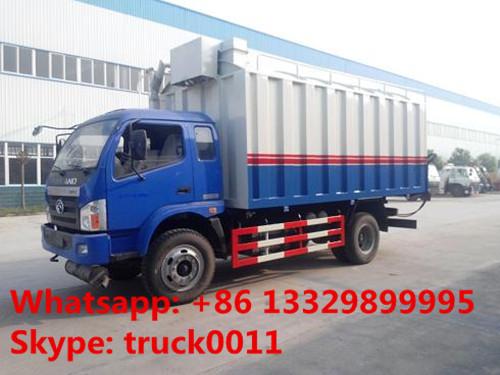

forland 18cbm bulk grains transported truck with factory price,Forland 18cubic meters bulk grains van truck for sale
forland 18cbm bulk grains transported truck with factory price,Forland 18cubic meters bulk grains van truck for sale

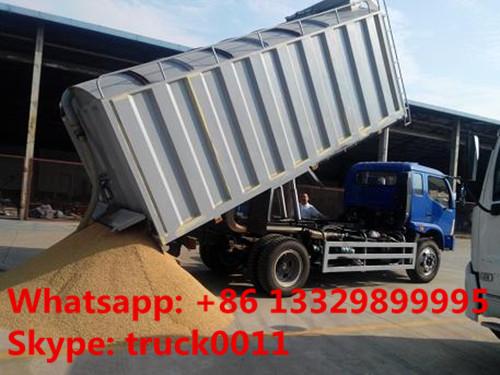

This bulk grains truck adopts dump truck chassis, sealed van, Pneumatic conveying system, Pulse dust removal system, hydraulic driving system, and tipping device, etc. And the real loading capacity is 18/20cbm, and the lifting height is 5.8m, 10-12m sucking hose, and the sucking speed is up to 0.25cbm/min.
And we can design and produce the different truck chassis grains van trucks upon request.
Bulk grain truck is also called self-sucking and self-discharging grain transportation truck.Refitted on the second type truck chassis with sealed grain van, hydraulic gear pump, hydraulic motor, high pressure fan, hydraulic lifting mechanism, etc. The bulk grain truck can transport rice, wheat, sora bean, corn, sorhum, rapeseed, sesame,peanut, etc. This kind of truck is the dream vehicle for subsistence plant, wheat flour factory, oil processing plant, feed processing plants, etc.
If you're interested in our gains transported vehicles, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Mob./Wechat: +86 13329899995
Website: www.trucksinchina.com
Main parameters of hot sale bulk grains delivery truck as below
| Product name | bulk grain delivery truck | Chassis model | BJ1102VDPEA-G1 | ||||
| Engine | Manufacturer | Displacement(ml) | Power(kw) | ||||
| YN38CRD1 YC4D130-41 |
Yunnei power Yuchai |
3760 4200 |
95 96 |
||||
| Emission standard | Euro 4/ Euro 3 | Fuel type | Diesel | ||||
| Overall dimension | 7400×2360×3550(mm) | Steering type | Power steering | ||||
| Total mass | 9935(Kg) | Rated mass | 2300(Kg) | ||||
| Curb mass | 7440(Kg) | Max speed | 80(km/h) | ||||
| Approach/departure angle | 29/14(°) | Front/rear suspension | 1175/2325(mm) | ||||
| Axle load | 3775/6160 | Wheelbase | 3900(mm) | ||||
| Alxe nos. | 2 | Steel spring | 9/11+8 | ||||
| Fuel consumption | 22.94/23.07 | Tyre | 6 | ||||
| Tyre | 8.25-16 16PR | ||||||
| Front tread | 1750 | Rear tread | 1654 | ||||
| Special devices | Hydraulic gear pump | Techanical data | Sealed grain van volume | 20cbm | |||
| Hydraulic motor | Real grain van volume | 18-19cbm | |||||
| High pressure fan | Sucking pipe length | 10-15m | |||||
| Hydraulic control valve | Sucking speed | 8-10T/h | |||||
| dust catcher | Overall dimension(mm) | 7400×2360×3550 | |||||
| Inlet pipe | Grain van dimension (mm) |
4700×2200×2100
|
|||||
Grains transported truck is also called self-sucking and self-discharging grains delivery truck, grains tipper truck, etc. It is a kind of special purpose vhicle refitted sealed grains van body, hydraulic gear pump, hydraulic motor, high pressure fan, hydraulic lifting mechanism on the the second type cargo truck chassis. The bulk grains truck is with the advantages of reasonable design, reliable performance, easy operation, non-pollution to the grains, etc.
