factory price 17tons Double axles lpg road tanker trailer, best price 40.5m3 road transported lpg gas tank for sale
factory price 17tons Double axles lpg road tanker trailer, best price 40.5m3 road transported lpg gas tank for sale
The main parameterso f hot sale lpg gas trailer manufacturing by Chengli Special Automobile Co., Ltd. as below
- Use:Truck Trailer
- Type:Semi-Trailer
- Material:Steel
- Certification:ISO.CCC,ASME
- Size:11324*2500*3730
- OEM No.:56823642
- Max Payload:25000
- Place of Origin:Hubei, China (Mainland)
- Brand Name:clw
- Model Number:clw9400GYQA
- tank material:Q345R Q370R lpg Road tanker
- Medium:propane,cooking gas,liquid petroleum gas lpg Road tanker
- thickness of endplate:8mm 9mm 10mm 11.5mm 12mm 13mm lpg Road tanker
- medium:propane gas isobutane methylpg Road tanker
- Volume of tanker:45cbm 50cbm 56cbm 60cbm 59.52cbm lpg Road tanker
- thickness of tanker:8mm 13.5mm 10mm 11mm 12mm 11.5m lpg Road tanker
- capapcity:25ton 25t 25000kg 20ton 15ton lpg Road tanker
- Axle Brand:BPW or FUWA axle lpg Road tanker
- product name:lpg Road tanker
More information, please feel free to semd email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Double axle lpg road tanker trailer 40.5cbm Propane tanker trailer 17ton lpg Road tanker
Specifications---
1. LPG Semi trailer LPG trailer LPG tank trailer LPG tanker lpg Road tanker
2. LPG storage tank lpg Road tanker
3. LPG Three Axle Semi Trailer lpg Road tanker
4.40 CBM, 45CBM. 50CBM,54cbm 56cbm 60CBM propane Semi Trailer lpg Road tanker
5. Certification: ISO9001 CCC lpg Road tanker
lpg Road tanker ---
1)Designing pressure: 1.61MPa Designing temperature: -20C-50C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding.
The main parameters of hot sale 40.5m3 bulk lpg gas tank trailer as below
|
40.5 CBM LPG Trailer Parameter |
|
|
Tanker Essential Information |
|
|
Volume of Tank (cbm) |
40.5 |
|
Overall Dimensions(L*W*H)(mm) |
11324*2500*3730 |
|
Tank Dimensions(Inner Diameter*thickness*Length) |
2200*12*11044 |
|
Estimated Tare Weight (kg) |
13415 |
|
Payload(kg) |
17010 |
|
Total Weight(kg) |
30425 |
|
Wheelbase(mm) |
6720+1320 |
|
Shell of Tanker |
|
|
Products |
Liquefied Petroleum Gas (propane) |
|
Fluid Property |
Flammable |
|
Design Temperature(℃) |
50℃ |
|
Design Pressure(MPa) |
1.61 |
|
Corrosion Allowance(mm) |
1.00 |
|
Weld Joint Factor |
1 |
|
Major Materials of Bearing Pressure |
Tanker body:Q345,12mm, |
|
End plate:Q345R,12mm |
|
|
Main beam:16Mn |
|
|
Detection |
|
|
Heat Treatment |
Overall treatment in a furnace,600℃ to 640 ℃ |
|
Flaw Detection |
100% Flaw detection |
|
Test Pressure(MPa) |
1.61 |
|
Hydraulic Test(MPa) |
2.1 |
|
Magnaflux Inspection |
Aim at welding place that flaw detection can not cover |
|
Manhole (As Customer’s Requirement) |
|
|
Quantity |
1;on top |
|
Safety Valve(As Customer’s Requirement) |
|
|
Quantity |
1 |
|
Location |
On the top of tanker |
|
Size |
DN100 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
|
Type |
Float-operated |
|
Location |
At the rear of the end plate |
|
Running System |
|
|
Axles |
3*13T Fuwa or BPW |
|
Tire |
12R22.5 Tubeless tire ,13 with one spare tire |
|
Landing leg |
JOST |
|
King Pin |
#50 or #90 |
|
Control System |
|
|
Emergency Cut-off Valves |
2 |
|
Ball Valve |
2 |
|
Liquid Gauge |
1 |
|
Pressure Indicating Thermometer |
1 |
|
Pressure Gage |
1 |
|
Accessories |
|
|
Small Tool Box |
2 |
|
Wheel Carrier |
2 |
|
Fire Extinguisher |
2 |
|
Fender |
6 |
|
Paint |
As Customer’s Requirement |
|
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels |
|
More pictures of hot sale 40.5m3 bulk propane as tank trailer as below

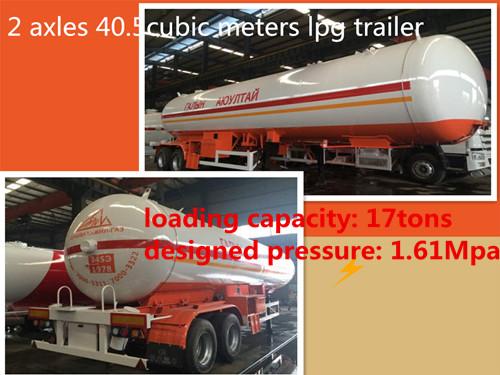

Hot sale 17tons 2 axles lpg gas trailer

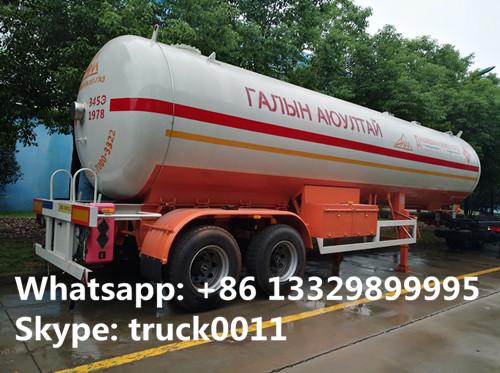

best price 40.5m3 lpg gas tank trailer for sale
More information, please feel free to contact with Ms. Anita.
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide,etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified.
More information, please feel free to contact with Ms. Anita
