Dongfeng tianlong 8*4 lpg transport bobtail truck 35000Liters for sale, lpg gas truck bobtail for sale
Dongfeng 8*4 lpg transport bobtail truck 35000Liters lpg gas truck bobtail for sale, dongfeng tianlong 35 cubic meters lpg gas tank delivery truck, 14mt bulk propane gas tank truck for sale
1. Tank capacity 10000Liters 15000Liters 20000Liters 25000liters 30000liters 35000liters
2. drive mode 4*2 6*4 8*4
3. LHD/ RHD
1,We have the biggest LPG truck capacity 35.5CBM.
2,We have the biggest LPG semi-trailer capacity 60CBM, low transportation cost,bring more profit.
3,We can also provide LPG storage tank ranged from 5CBM to 120CBM, both on ground ones and underground ones.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anitqa directly by whatsapp/wechat/Mob.: +86 13329899995.

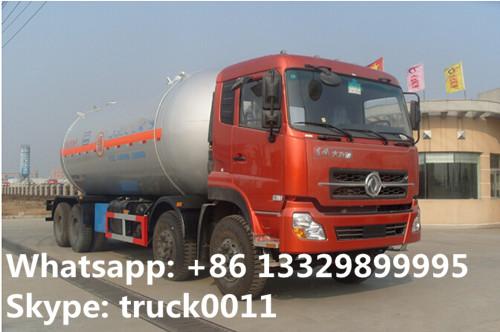

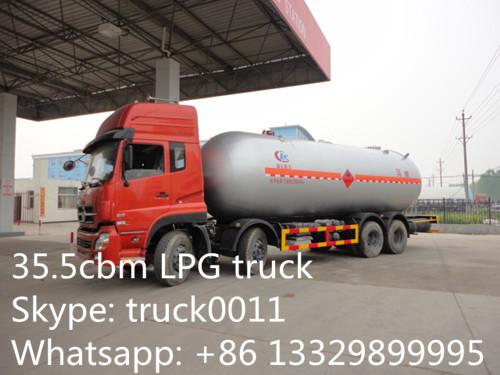

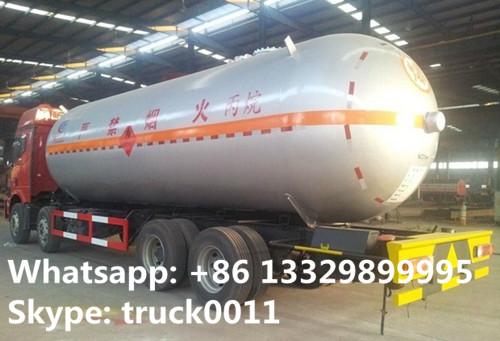

More pictures of Lpg gas tank truck manufactured by Chengli Special Automobile Co.,Ltd. as below.
CLW functional characteristics of liquefied petroleum gas tank:
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified.
Technical Parameters of CLW Brand lpg gas tank truck manufactured by Chengli Special Automobile Co.,Ltd. as below.
|
parameters |
Brand |
CLW |
|
Product model |
CLW5250GYQD4 |
|
|
Gross weight (Kg) |
31000 |
|
|
Rated load (Kg) |
14490 |
|
|
Curb weight (Kg) |
16315 |
|
|
Cab seats |
3 |
|
|
Approach/departure angle |
26/10 |
|
|
Number of axles |
4 |
|
|
Axle load (Kg) |
6500/6500/18000 |
|
|
Fact cubage (L) |
35000 |
|
|
Overall dimension(mm) |
10700×2500×3740 |
|
|
Front/rear suspension (mm) |
1460/1440 |
|
|
Wheel base(mm) |
1850+4350+1350,1950+4250+1430 |
|
|
Max speed (Km/h) |
80 |
|
|
Chassis parameters |
Chassis model |
DFL1311A10 |
|
Brand |
DongFeng |
|
|
Dimentions |
11475×2500×3030,3600,3690 |
|
|
Approach/departure angle |
28/12,28/13 |
|
|
Plate spring No. |
9/9/10,8/8/10,3/3/4 |
|
|
Fuel |
diesel |
|
|
Number of wheels (mm) |
12 |
|
|
Tire specification |
11.00-20,11.00R20,295/80R22.5 |
|
|
Front track base (mm) |
2040/2040 |
|
|
Rear track base (mm) |
1860/1860 |
|
|
Engine capacity (ml) |
6700 |
|
|
Emission standard |
Euro 3 |
|
|
Tanker material |
Q345R |
|
|
Tanker thickness |
10mm |
|
|
Tanker head thickness |
12mm |
|
|
Tanker shape |
Ellipse |
|
|
Design pressure |
1.61Mpa |
|
