Dongfeng Tianlong 8*4 35CBM LPG gas tank delivery truck, CLW brand bulk lpg gas propane delivery truck for sale
Dongfeng Tianlong 8*4 35CBM LPG gas tank delivery truck, CLW brand factory sale best price bulk lpg gas propane delivery truck for sale
CLW brand ASME lpg gas tank, hot sale ASME bulk lpg storage tank,
Chengli Special Automobile Co., Ltd. is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication. And recently, our CLW brand lpg gas products have passed ASME standard.
1. we have the biggest LPG trailer in the world, the valid volume is 58.5cbm; low transport costs, more profit.
2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
4 It is used for storing gas, liquid, and vapour mediums, for example, propane, propene,dimethyl ,liquid ammonia ,aldehyde and other mediums.It is widely used in oil, chemical industry, machinery, electric power areas.
5 .A, B Class 100% ray weld inspection, II level qualified C, D Class welds 100% magnetic particle inspection, I level qualified.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main parameters of dongfeng tianlong 8*4 35,000L Bulk lpg gas delivery truck as below
|
Dongfeng Tianlong 8*4 35CBM LPG tanker truck |
|||
|
Total mass(kg) |
31000 |
Curb mass(kg) |
16315 |
|
Rated mass(kg) |
14490 |
Chassis model |
DFL1311A3 |
|
Driver cab person |
3 |
Max speed(km/h) |
80 |
|
Approach/departure angle(°) |
26/10,26/9 |
Front/rear suspension(mm) |
1460/2690,1460/2740 |
|
Overall dimension(mm) |
11700X2500X3720 |
Cargo body dimension(mm) |
XX |
|
Axles |
4 |
Axle load(kg) |
6500/6500/18000(double axle) |
|
Tyre |
11.00R20, |
Tyre nos. |
12 |
|
Front tread(mm) |
1940/1940,1986/1986,2040/2040 |
Rear tread(mm) |
1860/1860 |
|
Wheelbase(mm) |
1950+4250+1300, |
Springs |
8/8/10,3/3/4,9/9/10 |
|
Emission standard |
GB3847-2005,GB17691-2005EuroⅢ |
Fuel type |
Diesel |
|
Engine model |
Manufacturer |
Displacement |
Power |
|
C260 33 |
Dongfeng Cummins |
8300 |
191 |
|
Remark |
The transportation medium is LPG (propane), the filling volume is 0.42ton/cbm, the tanker volume is 35cbm,
|
||
Dongfeng Tianlong 8*4 35CBM LPG tanker truck, adopts dongfeng Tianlong original chassis, high top with two sleepers driver cab, Euro3 260hp Cummins engine, fast gear 9 speed, double layers, 10ton double rear bridge, 11.00-20 rail tyre, the tanker volume is 35cbm, the filling volume is 0.42ton/cbm.
Dongfeng 8*4 liquid ammonia tanker truck, adopts the newest design, is the largest single transportation truck in China. High transporting efficiency, safety driving, etc.
|
Special device |
Tanker material |
Q345R |
|
Standard device |
Safety valve, Floating Liquidometer, pressure gauge, temperature gauge, emergency Cut-off Valves, valve box, fire extinguisher bottle, fire flame cover, anti-static tape, protecting guard, tyre protection board, etc. |
|
|
Others |
Adopting Q345R pressure vessel special 18 manganese steel, the filling medium is propane, the design pressure is 1.77Mpa, the designed temperature is50 degree, the filling volume is 0.42ton/cbm, the corrosion allowance is 1mm, etc. |
|
|
Manufacturing standard |
GB150-1998, Supervision Regulation On Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car. |
LPG container tanker is not only used as the storage tank device, but also LPG pressure vessel. LPG container tanker and pressure vessel can adopt the following transporting ways such as, road, rail way, by ship, by sea, etc. And the pressure vessel and LPG tanker is approved by State Bureau of Technical Supervision.
LPG tank container, pressure vessel and LPG storage tanker adopts derusting by sandblast treatment, flame plating, Puffing, etc.
More pictures of hot sale dongfeng tianlong 8*4 35m3 bulk propane gas tank truck manufactured by Chengli Special Automobile Co., Ltd. as below

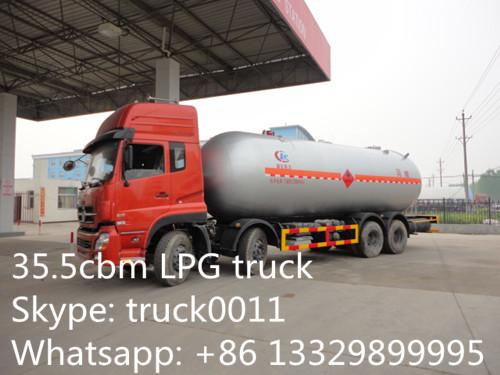

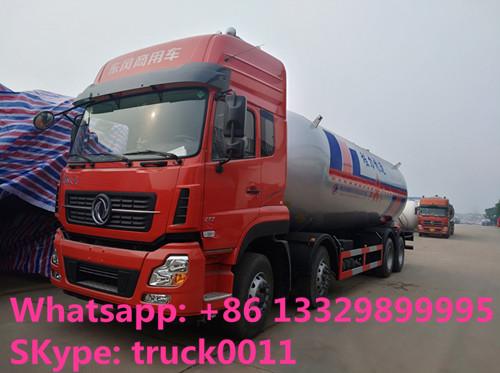

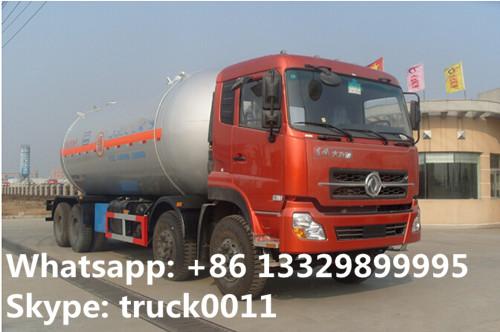

hot sale lpg gas delivery truck
35.5me bulk lpg gas delivery truck for sale
More information, please feel free to contact with us.
