new dongfeng 4*2 LHD 120hp Euro 4 street sweeper truck for sale,best price factory sale road vacuum sweeping vehicle
dongfeng 4*2 LHD 120hp Euro 4 street sweeper truck for sale,best price factory sale road vacuum sweeping vehicle
road sweeper trucks manufactured are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, seamless cold-rolled steel hydraulic oil tubes for precision applications, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
If you're interested in our sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale dongfeng road vacuum sweeping vehicle as below
|
Truck Specification |
||
|
Chassis model |
CLW5080TSLD4/DFA1080SJ12D3 |
|
|
Cab |
Dongfeng single row cab, with power steering. Electronic flameout,without a/c |
|
|
Driving Type |
4*2 Left hand driving |
|
|
Max Speed (km/h) |
99 |
|
|
Maximum climbing angle |
30% |
|
|
Overall dimension(mm) |
6700*2290*2500 |
|
|
GVW( kg) |
8275 |
|
|
Mass in working order ( kg) |
5700 |
|
|
Wheelbase(mm) |
3800 |
|
|
F/R track base (mm) |
1770/1586 |
|
|
F/R overhang (mm) |
12105/1690 |
|
|
Approach/Departure Angel |
24/16 |
|
|
Tire |
7.50-16 (6+1) |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
5-speed |
|
|
Bridge |
Front axle |
2.4T |
|
Rear axle |
4.2T |
|
|
Enging |
Model |
YC4E140-42 |
|
Fuel Type |
Diesel fuel |
|
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|
|
Exhaust(ml) |
4260 |
|
|
Max output power/rotate speed (hp /rpm ) |
140/2600 |
|
|
Max torque/rotate speed(N.m/rpm) |
430/1300-1600 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Eletric system |
24v |
|
|
Upper-Body specification |
||
|
Vice generator |
||
|
Model |
JX493-G3 |
|
|
Rated power (kw) |
57 |
|
|
Suction sweep operation |
||
|
Cleaning efficiency |
≥95% |
|
|
The maximum diameter of the suction body(mm) |
120 |
|
|
Suction sweep width(mm) |
2.8-3.2 |
|
|
Maximum cleaning power (m2/h) |
60000 |
|
|
Butterfly dish brush overhang dimension(mm) |
≥400 |
|
|
Working speed (km/h) |
3-20 |
|
|
Water tank body |
||
|
Rated capacity (m3) |
1.0-2.0 |
|
|
Garbage tank body |
|
|
|
Rated capacity(m3) |
4.5-5 |
|
|
Discharge door opening angle |
≥45º |
|
|
Hydraulic system |
||
|
Model |
Open, electrical control |
|
|
The main element |
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve |
|
|
Pressure (mpa) |
16 |
|
|
Hydraulic oil tank capacity (l) |
60 |
|
|
Hydraulic oil temperature (ºC) |
60 |
|
|
Electrical system |
||
|
Model |
DC24V |
|
|
voltage |
24V |
|
|
Battery |
24V(2 set 12 v battery series connection ) |
|
|
Sprinkle system |
||
|
The main elements |
Electric diaphragm pump, water filters, nozzles, etc. |
|
|
Sweeper disk device |
||
|
Model |
Center four sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function |
|
|
Diameter (mm) |
850 |
|
|
Angel |
Forward 4-6º roll 4-7º |
|
|
Sucker device |
||
|
Model |
Single suction port, hydraulically controlled, spring suspension. |
|
|
Diameter (mm) |
200 |
|

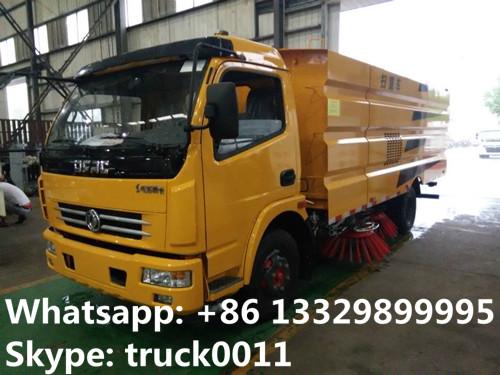

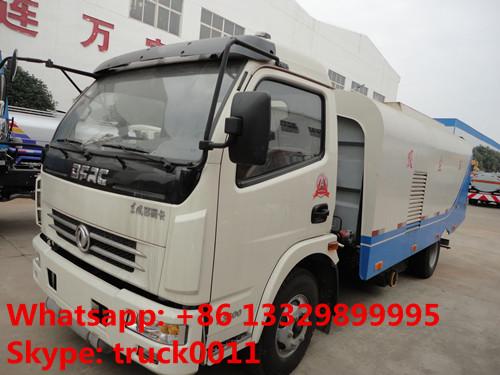

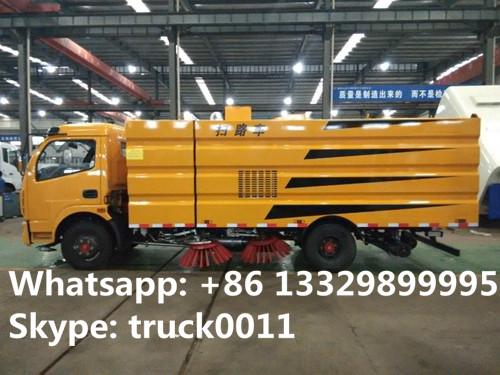

2,PICTURE FOR REFERENCE
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
