dongfeng 4*2 LHD 120Hp diesel street sweeper truck with factory price, hot sale best price dongfeng road sweeping truck
dongfeng 4*2 LHD 120Hp diesel street sweeper truck with factory price, hot sale best price dongfeng road sweeping truck
HOT SALE! dongfeng 120hp street sweeper truck
The main technical parameters of dongfeng 120hp diesel road sweepe truck as below.
1, the overall dimension (L*W*H): 6700×2290×2500mm
2, the total mass: 7300kgs,the curb mass is 4300kgs.
3, the max speed of this road sweeper truck is up to 90km/h, and the sweeping speed up to 60000 m2/h
4, sweeping efficienct ≥95%
5, max sucking pellet size diameter: 200mm.
6, dust collecting open angle of the discharging door≥45°
7, sweeping width: 2.8-3.2m
8, max sweeping ability:50000 m2/h
9, hydraulic oil tank volume: 60L
10, Auxiliary engine model: JX493-G3 57KW, 1750r/min
11, dust collecting van volume: 4.5-5.5m3,
12, water van volume: 1.5-2.5m3
If you're interested in our sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

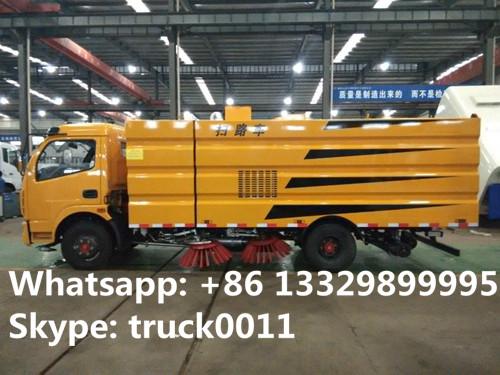

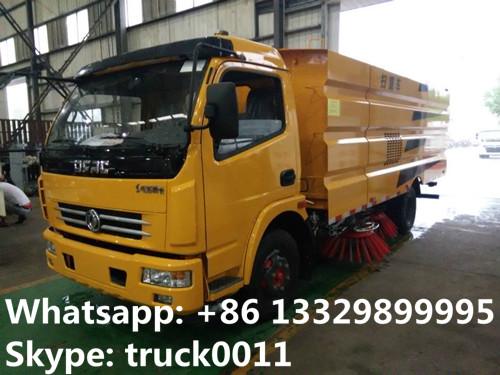

More pictures of DLK 4x2 street sweeper vehicle and road sweeper truck with low price
1.max cleaning speed 25km/h, width 3.2m
2. Drive Mode:4*2 LHD, RHD is optional
3.Certificate ISO9001
4.four broom ,1vacuum claaner plate,
5.2000L water tank,5000L dustbin. total; volume of 7,000L
6.new design less oil consumption
|
Main specifications |
|||
|
Product model,name |
dongfeng Road Sweeper Truck |
||
|
Gross weight(Kg) |
8275 |
Drive type |
4 X 2 |
|
Payload (Kg) |
2100 |
Overall dimension (mm) |
7160×2200×2750 |
|
Curb weight(Kg) |
5980 |
cab seats (man) |
3 |
|
Approach / departure angle(°) |
24/12 |
Front/rear hang(mm) |
1210/2150 |
|
Number of axles |
2 |
Wheelbase(mm) |
3800 |
|
Axle load |
3310/4965 |
Max speed(Km/h) |
95 |
|
Chassis specifications |
|||
|
Chassis model |
DFA1080SJ12D3 |
Manufacturer |
DongFeng Motors Co., Ltd. |
|
Brand name |
DongFeng |
Overall dimension(mm) |
6815×2080×2440 |
|
Tire specification |
7.50R16 |
Tires No. |
6 |
|
Steel spring number |
8/10+7,11/9+7 |
Front track(mm) |
1770 |
|
Fuel type |
Diesel |
Rear track(mm) |
1586 |
|
Emission standard |
Euro IV/Euro 3 |
Transmission |
5 forward gear,1 reverse gear |
|
Cabin |
Car interiors, with the direction of power and USB interface, cassette player, with air conditioning, |
||
|
Engine model |
Engine manufacture |
Displacement(ml) |
Power(Kw) |
|
CY4102-CE4C |
DongFeng Chaoyang Diesel Co.,Ltd |
3856 |
91 |
|
Road Sweeper Performance |
|||
|
Trash tank volume (m3) |
5 |
Water tank volume (m3) |
2 |
|
Material of trash tank |
Stainless steel |
Material of water tank |
Stainless steel |
|
Model of auxiliary engine |
JX493G |
Power of auxiliary engine(Kw) |
57KW |
|
Manufacturers of auxiliary engine |
JiangXi ISUZU Engine Co., Ltd. |
Max sweeping width(mm) |
3200 |
|
Sweeping speed (km / h) |
3-20 |
Sweeping capacity(m2/h) |
9000- 60000 |
|
Maximum Grain size and quality (mm) |
100mm±1.5kg |
Cleaning Rate |
96% |
|
Road Sweeper Features |
|||
|
1.The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate! 2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automaticly, then reseted automaticly after over some obstacles! 3.Both of side of the scan disk can be working altog, or unilateral work independently. 4.The core components of hydraulic systems adopts the original import! |
|||
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
