ISUZU street sweeper washer vehicle for sale, ISUZU road cleaning truck for sale, ISUZU road sweeper truck
ISUZU street sweeper washer vehicle is a kind of special purpose vehicle for sweeping, high pressure washing, etc. ISUZU street sweeper washer truck is with the advantages of sweeper truck and high pressure cleaning truck, realizing the cleaning requirements for different ground surfaces.
ISUZU street sweeper washer vehicle adopts ISUZU QL11009LARY the second type chassis, ISUZU Euro 4 diesel engine, JMC auliary engine, imported high quality high pressure water pump, high pressure nozzles, etc.
The main upper parts of JMC brand street sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below
4sets * road sweeping brushes; JMC auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.
If you're interested in our road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
The functional advantages of CLW brand road sweeping vehicles manufactured by Chengli Special Automobile Co., Ltd. as below
1, Collecting wastes by sucking and sweeping, wet dust removal, electro-hydraulic control, hydraulic dumping and unloading operation mode to clean the road surface.
2, The auxiliary engine is used to drive the fan and hydraulic system to ensure continuous operation during the driving process and to ensure the continuity of the cleaning process.
3, the CLW brand road sweeper truck adopts the structure arrangement of "medium four-disc brush + rear suction nozzle" , which is convenient for the adjustment and maintenance of the cleaning device and the suction nozzle, and the vehicle passing performance is good when the transition occurs.
4, The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan during the no-load start and stop, reducing the impact on the auxiliary engine, and improving the working reliability and service life of the auxiliary engine.
5, According to different cleaning conditions, without increasing the throttle of the auxiliary machine, the three-speed speed control of the high, medium and low levels of the sweeping plate can be achieved, which can ensure good cleaning effect under various pollution conditions, and save fuel consumption and loss of bristles.
7,The fully floating nozzle can be automatically leveled with the road surface, which has good vacuuming effect and long service life.
8, Imported hydraulic valve block can ensure the stability and smoothness of the hydraulic operation of the whole vehicle.
9, High-quality hydraulic motor can ensure the working stability of the sweeping disc and long service life.
10, The ejected dust suction pipe made of imported raw materials can effectively prevent the dust suction pipe from being broken, cracked and increased, and the service life is increased. .
11, the precision seamless cold-bending hydraulic oil pipe has no oxidizing impurities on the inner wall to ensure the hydraulic oil circuit is clean and does not block the valve.
12, The high-performance engineering plastic spacer is used in the sweeping brush arm, which has good wear resistance, no butter and maintenance-free, saving manpower and material resources.
13, Stainless steel water tank and garbage bin can resist general corrosion and increase the service life of the cabinet.
14, The extra wide rear door and an opening angle greater than 85 degrees make it easier to dump the trash and clean the bin.
15, The dump bin tipping angle is greater than 46 degrees, making it easy to dump garbage.
16, Our CLW brand road sweeping truck can be equipped with front punch, back sprinkler, spray, self-cleaning reel, operation monitoring system, auxiliary suction device, snow shovel, etc.

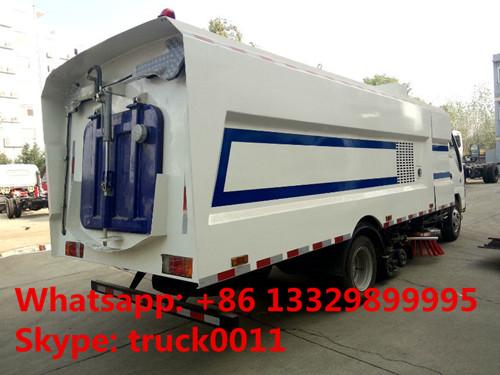

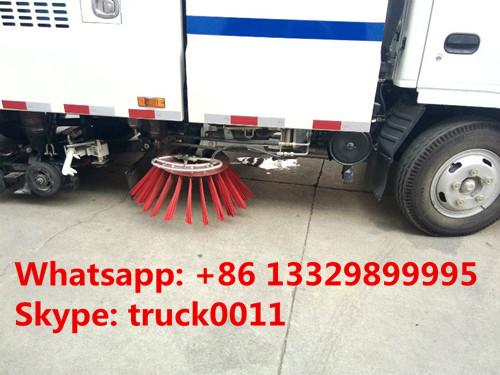

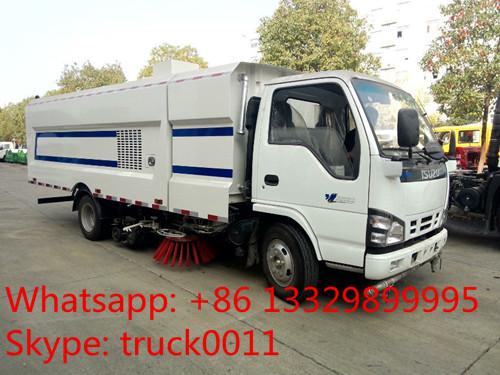

More pictures of ISUZU sweeping washer vehicles manufactured by Chengli Special Automobile Co., Ltd.
| Truck model | ISUZU | Remark | |||
|---|---|---|---|---|---|
| The second type chassis | QL11009LARY(Euro Ⅳ) | ||||
| wheelbase | 4175mm | ||||
| front/rear suspension | 1100/1715 mm | ||||
| Engine model | Chassis engine | 4HK1-TCG40 | |||
| Auxiliary engine | JX493ZG-268 | ||||
| Engine power | Chassis engine | 139kW/2600r/min | |||
| Auxiliary engine | 62kW/3600r/min | ||||
| Max climbing grade | 30% | ||||
| Mini turning diameter | ≤16m | ||||
| Emission standard | Euro 4 | ||||
| Max speed | 110 km/h | ||||
| Approach angle | 21° | ||||
| Departure angle | 14° | ||||
| Braking distance | ≤10m | ||||
| Mass | Curb mass | 7030kg | |||
| Max total mass | 10055kg | ||||
| Dimension | Overall dimension(L*W*H) | 7000×2200×2640mm | |||
| Mini ground clearance | 150mm | ||||
| High pressure cleaning | Cleaning speed | 3~20Km/h | |||
| Cleaning width | 3.4m | ||||
| Water pressure | 10MPa | ||||
| Water pump flow | 80L/min | ||||
| Sucking and sweeping ability | Sweeping ability | ≥90% | |||
| Max Suction particle size | 110mm | ||||
| Sucking sweeping width | 3.2m | ||||
| Max sweeping ability | 64000 ㎡/h | ||||
| Disk extension dimension | ≥400mm | ||||
| Driving speed when sucking and sweeping | 3-20km/h | ||||
| Tank | Water tank volume | 6.2m³ | |||
| Wastes van | Wastes van volume | ≥3.5 m³ | |||
| Door Opening angle when discharging | 49° | ||||
| Hydraulic system | Type | Open type, electronic control | |||
| Main units | Gear pump, motor, hydraulic cylinder, solenoidvalve | ||||
| System pressure | 16MPa | ||||
| Hydraulic oil tank volume | 40L | ||||
| Oil temperature | 60 ˚C | ||||
| Electronic system | Type | DC24V,PLCProgramming control system | |||
| voltage | Chassis :24V Working device:12V |
||||
| storage battery | Chassis :12V-70A.H Working device:12V-80A.H |
||||
| High pressure water system | Type | ram-type pump | |||
| Model | Italian KEB36R | ||||
| System pressure | 10MPa | ||||
| rotation rate | 1150r/min | ||||
| Water valve type | Hydraulic controlled high pressure ball valve | ||||
| Water valve pressure | 7MPa | ||||
| Nozzle type | High pressure washing type | ||||
| Water filter | Filter type | ||||
| Water sprinkling system | Main units | electric diaphragm pump, water filter, nozzles, etc. | |||
| Sweeping disks devices | Type | Two sweepers at the front driven by the hydraulic motor; controlled independently, automatically dodging function | |||
| Sweeper disk diameter | 850mm | ||||
| Sweeper disk speed | High speed:110; middle:80;low:50 | ||||
| Sweeper disk angle | Pitch angle:4-6degree; extroversion angle:4-7 degree | ||||
| Sucking disk | Type | Length: 2146mm,double sucking mouths,hydraulic control, spring suspension | |||
| Sucking month diameter | 180mm | ||||
| Side spraying pole | V type spraying pole with dodging automatically function | ||||
