HOT SALE! best price forland 4*2 RHD mini street sweeper truck, totally new forland road claning vehicles for sale
HOT SALE! best price forland 4*2 RHD mini street sweeper truck, totally new forland road claning vehicles for sale
CLW forland 2300mm sweeper truck is the hot sale mini sweeper truck. The overall dimension(L*W*H) is 4400×1678×1900(mm), 2300mm wheelbase, little and dainty, driving at the big streets and small alleys to sweeping the side pavement, squares,schools, etc.
Forland 2300mm mini street sweeper adopts forland quanchai 68hp diesel engine, 6.00-13 nylon tyre, etc. And the vans adopt full stainless steel sheet with strong corrosion resistance, large volume, etc.
forland mini road sweeper truck adopts four sets of sweeping disks and sucking disk for working. The two side sweepers can work at the same time or independent.
Forland 2300 sweeper truck is with the sweeping width of 2.5m, sweeping speed of 5-20m/h. When sweeping, there is clean water spraying for dedust, avoiding the second time pollution. Forland mini sweeper truck is with strong sweeping-sucking ability, high working productivity.
The truck model of this hot sale mini sweeping vehicle is CLW5041TSLB4 sweeper truck, chassis model: BJ1042V9JA5-X2, total mass: 3620(Kg); rated mass:700,1000(Kg), curb mass: 2790,2490(Kg).
If you're interested in our truck, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
| 1 main parameters | ||||
| Product name | Forland LHD 4*2 road sweeper truck | Remark | ||
| Chassis model | BJ1073VEJEA-B1 | |||
| Wheelbase | 3360mm | |||
| Front/rear suspension | 1130/1365(mm) | |||
| Engine model | Truck chassis engine | 4DW91-63NG2 | ||
| Auxiliary engine | JX493-G3 | |||
| Output power | Truck chassis engine power | 98hp | ||
| Auxiliary engine power | 57 KW | |||
| Max Gradient | 30% | |||
| Emission standard | Euro Ⅲ | |||
| Outside-automobile noisy in the accelerating | ≤84dB(A), meeting the noisy of Second stage requirements | |||
| Max speed | 95 km/h | |||
| Approach angle | 21 | |||
| Departure angle | 16 | |||
| Weight | Curb weight | 5340 kg | ||
| Max total weight | 7360kg | |||
| Dimension | Overall dimension(L×W×H) | 5895×1915×2280mm | ||
| Mini ground clearance | 240mm | |||
| Sucking and sweeping working | Sweeping efficiency | ≥95% | ||
| Max sucking granularity | 120mm | |||
| Sucking-sweeping width | 2.8-3.0 m | |||
| Max sweeping ability | 60000 m2/h | |||
| Extension dimension of dish brush | ≥400 mm | |||
| Sucking disk driving speed | 3-20km/h | |||
| Tanker | Water tank volume | 1.0-1.5m³ | ||
| Material | Stainless steel | |||
| Wastes van | Wastes van loading capacity | 3.5-4.0m³ | ||
| Open angle of the discharging door | ≥45° | |||
| Material | Stainless steel | |||
| Hydraulic system | Type | Open-type, electronic-control | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60L | |||
| Oil temperature | 60 ˚C | |||
| Electronic | Type | DC24V | ||
| voltage | 24V | |||
| Storage battery | 24V(2 sets of 12V in series) | |||
| Water sprinkling system | Main units | Electronic diaphragm pump, water filter, nozzles, | ||
| Sweeping disks device | Type | 4 sets of sweeping disks middle-installed driving by hydraulic motor; The right-front one can work separately, with the function of dodge and repeat working |
||
| Diameter | 850mm | |||
| Angle | ante version:4-6 °; extroversion: 4-7° | |||
| Sucking disk | Tyre | Single sucking, hydraulic-control, spring s | ||
| Sucking diameter | 200mm | |||
| Other device | Rear part | With LED arrow indication light | ||
2, spare parts
| Item | Name | Nos. | Remark |
| 1 | fire fighting hose | 1 | For adding water |
| 2 | fire fighting wrench | 1 | For disassembling fire hydrant |
| 3 | Manual rocker for hydraulic pump | 1 | For manual starting the hydraulic pump |
| 4 | Spare tyre(with the truck) | 1 |
3, spare parts
| Item | Name | Nos. | |
| 1 | Brushing bristle | 80 | |
| 2 | weather-strip of fan | 1 | |
| 3 | weather-strip of rear door | 1 |
4,imported device
| Items | Name | Model | Country |
| 1 | Hydraulic motor | BMR125 | Item |
| 2 | Hydraulic valve | SWH-G02-C4-D2H | Taiwan |

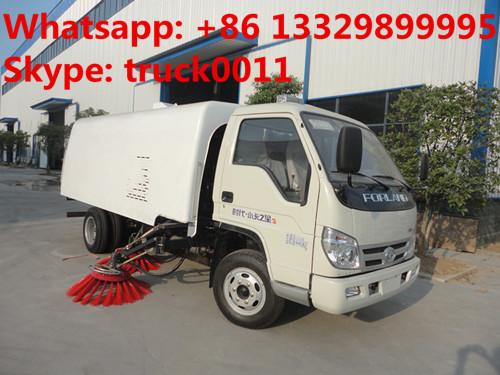

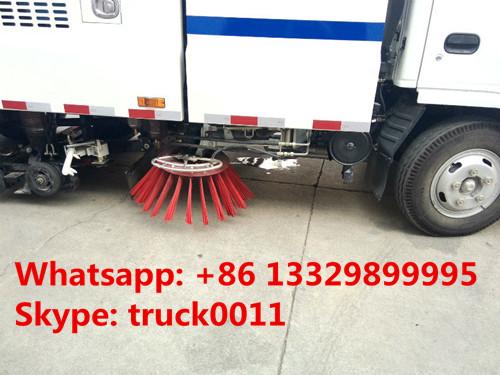

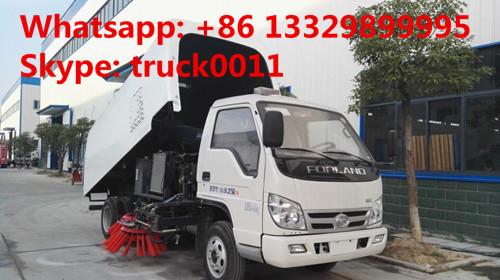

More pictures of hot sale mini street sweeper truck manufactured by Chengli Special Automobile Co., Ltd.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of street sweeper trucks in China, such as dongfeng furuika sweeper truck, ISUZU street sweeper, dongfeng duolika sweeper truck, JMC road sweeper truck, dongfeng 145 sweeper truck, dongfeng Tianjin street sweeper truck, etc. Welcome more and more clients over the entire world to visit our factory.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd could supply dongfeng sweeper truck, ISUZU sweeper truck, Forland road cleaning truck, JMC road sweeper truck, FAW street sweeper, etc. More information, please feel free to contact with Ms. Anita Deng.
