HOT SALE smallest forland 4*2 LHD/RHD diesel airport sweeper truck, factory sale forland mini road cleaning vehicle
Forland Mini road sweeper truck for sale, factory sale mini forland LHD/RHD road cleaning vehicle, forland mini street sweeping vehicle for sale, high quality and competitive price forland mini street sweeper for sale,
The main parameters of forland mini road sweeper truck as below.
1, the overall dimension(L*W*H):4740*1650*2100(mm),
2, the total mass: 3620kgs, rated mass: 700kgs, curb mass: 2790kgs
3, the max speed of the forland mini sweeper truck is up to 90KM/h, and the sweeping speed: 3-25KM/H
4, sweeping efficiency: ≥95%
5, max sucking particles size: 80mm,
6, max tipping angle of the wastes van: 45°
7, max sweeping width: 2.5m
8, max sweeping ability: 50000㎡/h
9, hydraulic oil tank volume: 60L
10, auxiliary engine working rotation speed: 1750r/min
11, wastes van volume: 2.5m3
Water tank volume: 0.5m3
The truck chassis of forland mini street sweeper as below
1, truck chassis model: BJ1042V9JA5-X2
2, wheelbase: 2300mm
3, emission standard: Euro 3/Euro 4/ Euro 5
4, tyre specification: 6.00-13 8PR,6.00-14 10PR
5, tyre nos.: 6+1
6, driver cab seated person: 3
7, engine model: 4A1-68C40
If you're interested in our sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Product model |
road sweeper truck for good sale |
|
|
gatbage tank capacity |
1CBM |
|
|
water tanker capacity |
0.2CBM |
|
|
Product parameters |
Total mass(Kg) |
3600 |
|
Rated weight(Kg) |
1100 |
|
|
Curb weight(Kg) |
2370 |
|
|
Overall dimension(mm) |
4760*1678*2100 |
|
|
Carriage dimensions (mm) |
/ |
|
|
|
||
|
Chassis parameters |
Chassis model |
FORLAND |
|
Fuel type |
Diesel |
|
|
Emission standard |
Euro 2 |
|
|
|
||
|
Engine parameters |
Engine model |
4A1-68C |
|
Manufacturer |
QUANCHAI |
|
|
Displacement(ml) |
1809CC |
|
|
Power(HP) |
68HP |
|
|
|
||
|
Main Parameters
|
Rated person of Cab |
2 |
|
Number of axles |
2 |
|
|
Wheelbase(mm) |
2300/2600/2800 |
|
|
Axle load(Kg) |
1365/2235 |
|
|
Tires No. |
6 |
|
|
Tyre size |
6.50-13 |
|
|
Max. speed(Km/h) |
95 |
|
|
Approach angle /Departure angle (°) |
19/16 |
|
|
Front overhang /Rear overhang (mm) |
1015/1525 |
|
|
Front track/Rear track(mm) |
1385/1425 |
|

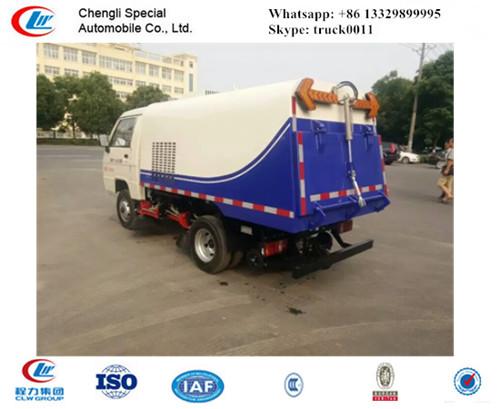

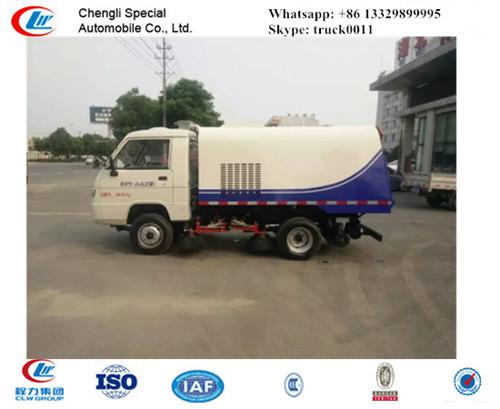

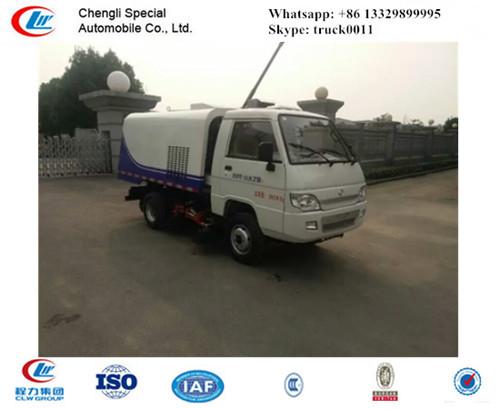

More pictures of forland mini road sweeper truck as below.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd could supply dongfeng sweeper truck, ISUZU sweeper truck, Forland road cleaning truck, JMC road sweeper truck, FAW street sweeper, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
