factory sale forland small RHD road sweeper truck for sale,best price FORLAND RHD street sweeping vehicle for sale
factory sale forland small RHD road sweeper truck for sale,best price FORLAND RHD street sweeping vehicle for sale
High efficiency Forland street sweeper truck, Good Price of truck mounted road sweeper 4-10m3 on sale
Sweeper with washer has the functions of road washing, sweeping, rinsing and sewage recovery. Except a combination of the sweeper and cleaner, a low pressure pump is added on the vehicle, to spray water like a sprinkler. This multi-function vehicle is suitable for the cleaning, washing, sweeping and spraying the urban road, high way, square, airport, dock, tunnel and bridge.
If you're interested in our street sweeper, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

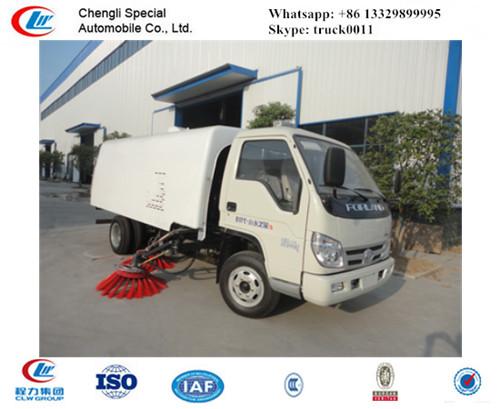

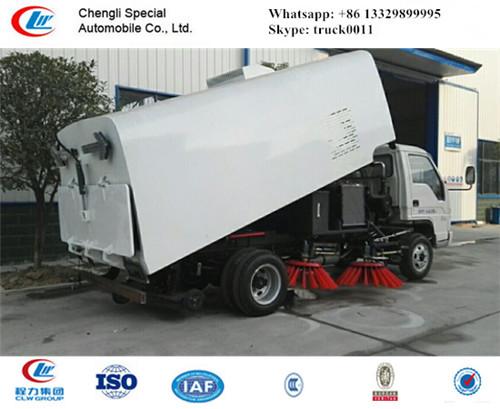

More pictures of hot sale foland RHD Mini road sweeper truck as below

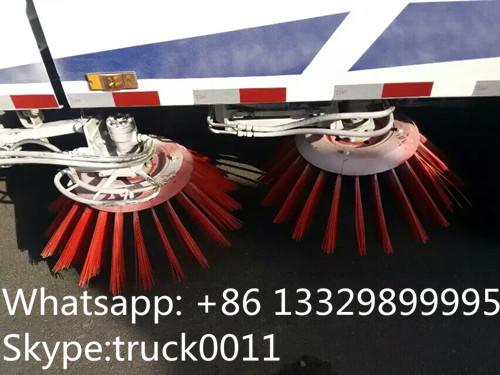

high quality sweeping burshes for road sweeper truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
Manin parameters of hot sale road sweeper trucks manufactured by Chengli Special Automobile Co., ltd. as below.
| Product model | CLW5079TSL1 | |
| Gross weight (Kg) | 7360 | |
| Rated load (Kg) | 1825 | |
| Curb weight (Kg) | 5340 | |
| Cab seats | 3 | |
| Approach/departure angle | 21/16 | |
| Number of axles | 2 | |
| Axle load (Kg) | 2800/4560 | |
| Overall dimension(mm) | 5855×2060×2470 | |
| Front/rear suspension (mm) | 1130/1365 | |
| Wheel base(mm) | 3360 | |
| Max speed (Km/h) | 95 | |
| Chassis model | BJ1073VEJEA-B1 | |
| Chassis parameters | Brand | Forland |
| Dimentions | 5895×1915×2280 | |
| Approach/departure angle | 21/16 | |
| Plate spring No. | 4/6+7 | |
| Fuel | diesel | |
| Number of wheels (mm) | 6 | |
| Tire specification | 7.00-16,7.00R16 | |
| Front track base (mm) | 1525 | |
| Rear track base (mm) | 1485 | |
| Engine capacity (ml) | 3168 | |
| Emission standard | Euro III | |
| Sweeper parameters | Sweeping brush | 4 pcs |
| Sweep width (mm) | 3000 | |
| Cleaning capacity | 40000-60000m2 / h | |
| Cleaning speed | 3-20km/h | |
| Cleaning Efficiency | 90% | |
| maximum inhalation size | 120mm | |
| nozzle minimum ground clearance | 200mm | |
| Equiped with four sweep plate combined with the sucking mouth . Equiped with stainless steel rubbish tank ,clean water tank and dirty water tank |
||
Compared with common road sweeper, this model has more functions:Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.
1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3. “Mid four brush - rear nozzle” structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance.
4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle.
5.Sweeper combined with trochar disc, it can work excellently and can automotically choose work type according to waste condition on the ground and speed of the truck. ;
6.Trash and water tank large, continuous cleaning operation a long time.
7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweep sweep to work independently.
8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;
9. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer
