forland mini 4*2 LHD 1m3 street sweeper truck for sale, hot sale forland mini road sweeper truck with cheapest price
forland 4*2 LHD quanchai 68hp diesel road sweeper truck for sale, factory direct sale forland mini 1m3 street sweeper vehicle with cheapest price
The standard devices of the sweeper trucks manufactured by Chengli Special Automobile Co., Ltd.
a, JMC auxiliary engine or Cummins auxiliary engine
b, Italian imported motor,
c, Taiwan hydraulic valves,
d, stainless steel water tank
e, stainless steel garbage van.
f, manual portable pump emergecy system
g, rear part with arrow lamp
h, SCHENEIDER electronic controls.
If you're interested in our road sweeper truck, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Main technical Parameter of 68hp 4*2 FORLAND Mini Road Sweeper 1 m3 :
| Main Technical Parameter | |||
| Product Model | FORLAND Mini road sweeper | Overall Dimension(L*W*H)(mm) | 4760×1678×2100 |
| Curb weight (kg) | 2370 | Approach/ departure angle (° ) | 22/15 |
| Volume(m3) | Dust tank: 1 m3, water tank: 0.2m3 | Cab capacity | 2,3 |
| Cab type | Flat proof, single row, heater | Max Speed (km/h) | 90 |
| Chassis Technical Parameter | |||
| Chassis Model: | BJ1042 | Chassis Manufacturer: | BEIQI FONTON Automobile Co., Ltd |
| Brake System | Oil brake | Transmission type: | Manual |
| Axle number | 2 |
Wheelbase(mm)
|
2300
|
| Tire size | 6.00-13 8PR | Traction Type: | 4*2 |
| Engine specification | |||
| Engine Model: | 4A1-68C40 | Engine Brand | Anhui Quanchai |
| Emission stand | Euro 3 | Displacement(ml) | 1809 |
| Fuel type: | Diesel | Power(kw) | 50(68)hp |
| Superstructure parameter | |||
| Sweeping width(m) | 2.5-3.3 | Cleaning capacity (m2/h) |
10000-30000
|
| Sweeping efficiency |
>90%
|
Sweeping speed (km/h) | 18-25 |
| Lift control |
Electronically hydraulic
|
Discharge angle (°) | 45 |
| Nozzle | 7 | Fluctuate adjusable size(mm) | 120 |
| Gradient | 30% | Noise index | 79db |
| Warranty | one year from the date of supply | ||
Special Purpose Function
1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;
4. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer

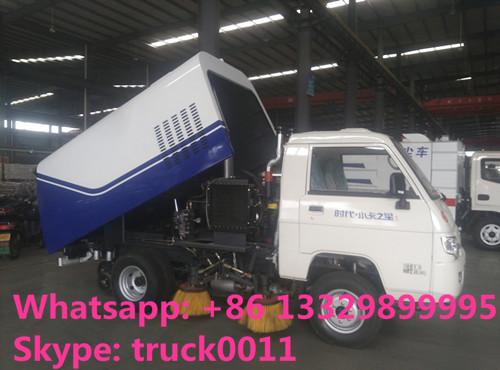

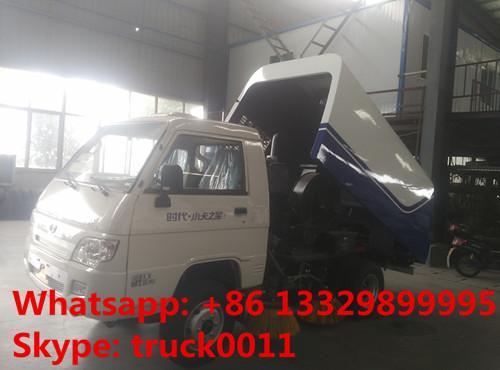

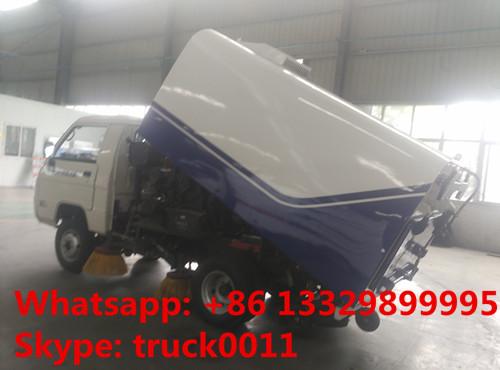

Multi-faceted Show of 68hp 4*2 FORLAND Mini Road Sweeper 1 m3
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd could supply dongfeng sweeper truck, ISUZU sweeper truck, Forland road cleaning truck, JMC road sweeper truck, FAW street sweeper, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
