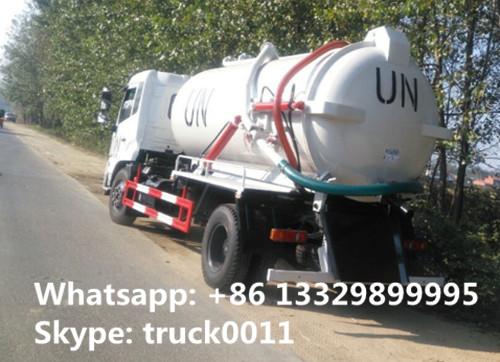

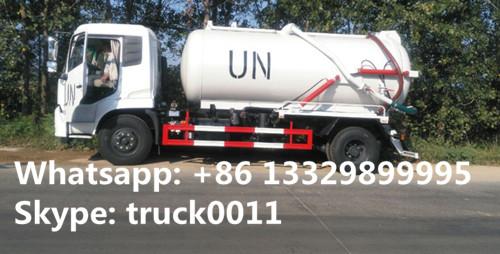

dongfeng tianjin 10,000L vacuum sewage suction truck for UN, hot sale dongfeng brand LHD 4*2 sewage suction truck with
dongfeng tianjin 10,000L vacuum sewage suction truck for UN, hot sale dongfeng brand LHD 4*2 sewage suction truck with cheapest price
As a professional vacuum sewage suction truck manufacturer in China, the special vacuum sewage truck for sales is from 3000 liter to 16000 liters.
The sewage tanker trucks is with self-suction and self-unloding function. The tank can be lifted by
hydraulic cylinder to 45° and the rear door of the tank can also be open by hydraulic.So the sewage can be discharged from the tank completely. This is also convenient for you to maintenance and clean the tank.
Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, more strength then cesspit
emptier.
The suction depth of 10000l vacuum sewage suction truck is more than 7 meter. It is high efficiency
and manpower saved.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Basic equipment of septic tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
Chengli vacuum pressure sewage truck advantages
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
Technical Paramters of 10000l chinese new vacuum sewage suction truck
| [Main Technical Parameters] | |||
| Product Name | Sewage Suction truck | Overall Dimension(mm) | 7970x2490x3380 |
| Gross Vehicle Weight(Kg) | 16000 | Fact load(kg) | 15000 |
| Curb Weight(Kg) | 8805 | Cab Allowed Persons | 3 |
| App/Dep Angle(°) | 20/15 | F/R Suspension(mm) | 1430/2040 |
| Axle No. | 2 | Wheelbase(mm) | 4500 |
| Axle Load(Kg) | 6000/10000 | Max Speed(Km/h) | 85 |
| Others | Equipped with PTO, Vacuum Pump,Pipe System, Hydraulic System,Valves,water-gas separator , oil-gas separator, level inspection window,etc . | ||
| [Chassis Technical Parameters] | |||
| Chassis Model | DFL1160BX4 | Chassis Brand | Dongfeng |
| App/Dep Angle(°) | 20/18 | Tyre No. | 6 |
| Spring Leaf No. | 8/10+8 | Tyre Specification | 10.00-20 |
| F/R Suspension(mm) | 1430/1860 | Axle Load(kg) | 6000/10000 |
| Front Track(mm) | 1880 | Rear Track(mm) | 1860 |
| Fuel Type | Diesel | Emission Standard | Euro IV |
| Gear box | 6 speed forward with 1 reverse | Brake | Air brake |
| Steering Wheel | LHD are optional | Drive Type | 4x2 |
| Engine Model | ISDe180 40 | Engine Brand | |
| Engine Power | 180hp/155kw | Displacement(ml) | 6700 |
| [Superstructure Technical Parameters] | |||
| Tank Volume(L) | 9000 | Tank Material | Carbon Steel |
| Tank Thickness(mm) | 5 | Tank Shape | Cylindrical |
More information, please feel free to cotnact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
