China High reliability JAC Gallop 6x4 tipper truck 30ton 40ton 50ton Dump truck Lifting system dise Jianghuai tipper
China High reliability JAC Gallop 6x4 tipper truck 30ton 40ton 50ton Dump truck HYVA Lifting system dise Jianghuai tipping truck
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our dongfeng dump truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
JAC brand dumper truck
18-25 cubic meters capacity , dump truck , also called dumper truck , tipper truck , dump tippers , sand transport dump truck , dump truck for sale , new tippers , prices for tipper truck, left hand drive tipper truck, chinese tipper truck , truck dumper, 40 ton dumper truck
Dump truck control by hydraulic system , dump truck side plate and floor plate made by high quality reinforced carbon steel , dump tippers heavy duty chassis optional :Dongfeng , Foton , Shacman , JAC , Sinotruck etc ..
As customer's required , our factory Chengli special autmobile co.,ltd could custom trucks :
dump truck laoding weight from 2 ton to 60 ton
Dump truck drive mode :4x2 ,6x4 ,6x6 ,8x4 ,8x8
Specification:
| 1 | Weight parameter | GVW | kg | 24500 | |||||
| 2 | Curb weight | 11700 | |||||||
| 3 | Rated weight | 12670,12605 | |||||||
| 4 | Axle load | 6500/18000 | |||||||
| 5 | Max Loading capacity | 20000 | |||||||
| 6 |
Demension parameter |
Overall demensions(L*W*H) | mm | 8385,8495,8545*2495*3500 | |||||
| 7 | Box demension(L*W*H) | 5400,5600*2300*1187,950 | |||||||
| 8 | Carriage thickness | Floor:8mm Side:6mm | |||||||
| 9 | Wheelbase |
3690+1350,3900+1350,4100+1350 |
|||||||
| 10 | F/R suspension | 1495/1750,1495/1850,1495/1640,1495/1600 | |||||||
| 11 | F/R tyre width | 2040,1850/1850 | |||||||
| 12 |
Performance parameter |
Max speed | km/h | 80 | |||||
| 13 | Approch angle | 27/24,20 | |||||||
| 14 | The rate of loading | 1.09 | |||||||
| 15 | Carriage lifting | ventral lifting | |||||||
| 16 |
Vehicle parameter |
Cab | one and half cabin (3seater) | ||||||
| 17 | Engine | Type | T10.34-40/WP10NG336E4/WP12NG330E40 | ||||||
| 18 | Power | kw | 250/247/243 | ||||||
| 19 | Fuel type | Diesel | |||||||
| 20 | Emission standard | Euro4 | |||||||
| 21 | Chassis | Type | HFC3241P1N5E41F | ||||||
| 22 | Driving type | 6*4 | |||||||
| 23 | Transmission | * | |||||||
| 24 | Cluth | ||||||||
| 25 | Fuel tank | L | * | ||||||
| 26 | Tyre | 11.00-20,11.00R20,10.00-20,10.00R20 | |||||||

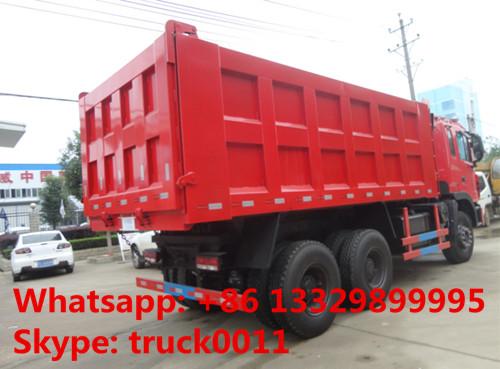

More pictures of hot sale JAC brand dump truck as below

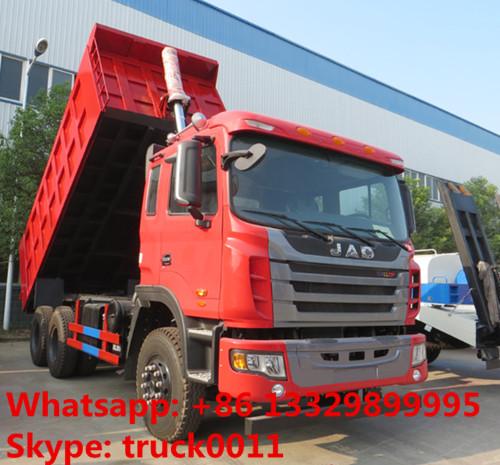

JAC brand 6*4 dump truck for sale

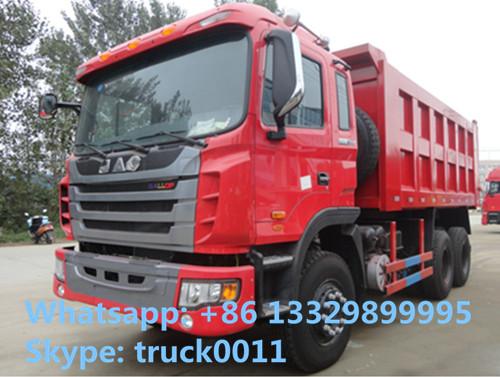

hot sale JAC brand tipper truck
factory direct sale JAC brand Gallop dump tipper truck with cheapest price
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
