factory direct sale dongfeng teshang 6*4 25tons dump tipper truck with cheapest price, dongfeng brand dump tipper truck
China leading famous dongfeng teshang 25tons dump tipper truck for sale, factory direct sale dongfeng brand yuchai 260hp diesel heavy duty dump tipper truck for Togo
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck, tipper, dump tipper, tipper trailer, etc. in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer ISUZU dump truck, Dongfeng dump truck, HOWO tipper, Foton dump truck, FAW dump truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale dongfeng dump truck as below
| Main parameters | ||
| Chassis dimension | Overall chassis length | 7700 |
| Cab width | 2500 | |
| Cab height(unladen) | 3030 | |
| wheelbase | 3800+1350 | |
| Front overhang | 1450 | |
| Rear overhang | 1100 | |
| Max speed(km/h) | 75 | |
| GVW | 25000 | |
| Curb weight | 7500 | |
| Fram e profile dimension | Frame width(front) | 860 |
| Frame width(rear) | 860 | |
| Section height | 300 | |
| Section width | 90 | |
| Engine | Type | Guangxi Yuchai YC6A260 33 |
| Emission standard | Euro 2 | |
| Max power | 191KW(260hp)at 2300rpm | |
| Max torque | 1000Nm at 1300-1600 rpm | |
| Number of cylinders | 6 | |
| Displacement(L) | 7.255 | |
| Cylinder bore (mm) | 108 | |
| Stroke (mm) | 132 | |
| system | Water cooled, turbocharged, after cooled, mechanical pump with EGR, cold start | |
| Clutch | Type | SACHS |
| Plate’s diameter | Diameter: 430mm | |
| Operating system | Hydraulic control with air booster, pulling | |
| Gearbox | Type | ZF9S110 |
| Number of gears | 9 forward gears & 1 reverse, synchronized | |
| Ratios | Forward 12.73; 8.83; 6.28; 3.48; | |
| PTO | Type | NH/4 |
| Max output torque | 430Nm | |
| Brake system | Full air brake system, split pneumatic circuit, split pneumatic circuit, parking spring brake acting on rear axles, exhaust brake, no ABS | |
| Cab | Sleeper cab, forward contril type, low roof, new face, all welded steel cab of tilt type, hydraulic cab tilting, rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, optional manual windows, manual door lock. | |
| Axle | Front | Elliot type, I beam section |
| Load capacity (ton) | ||
| Rear | Hub reduction, tandem axle, with axle lock and wheel lock, ratio 5.26 | |
| Loading capacity: 26ton | ||
| Tyres | 11.00-20; 11.00R20, 295/80R22.5 | |
| Suspension | Front | 8 leaf spring with shock absorber |
| Rear | 13 leaf spring | |
| Battery | Voltage(V) | 24 |
| Battery capacity (A.h) | 165*2 | |
| Fuel | Type | Steel fuel tank, with lockable cap |
| Capacity | 280liters | |
| Cargo body | Cargo body dimension(L*W*H)(mm) | 5400,5600,5800×2300×1200(mm) |
| Material | High quality carbon steel | |
| Thickness (mm) | 6mm thickness for side sheet and 8mm thickness for bottom sheet | |
| Cylinders | High quality Double middle cylinders for middle lifting/front lifting | |
| Door | Rear door tipping | |
More pictures of hot sale dongfeng teshang 6*4 dump tipper truck as below
dongfeng brand dump truck with front cylinder lifting system

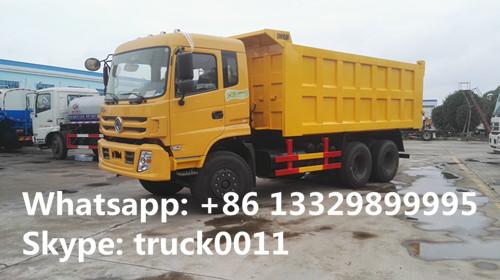

dongfenng brand 6*4 yuchai 260hp 25tons-30tons dump tipper truck for sale
hot sale China dongfeng brand dump truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
