Forland twin cabs 3tons dump tipper truck for sale, factory direct sale 3tons smaller forland RHD/LHD tipper truck
Forland twin cabs 3tons dump tipper truck for sale, factory direct sale 3tons forland RHD/LHD tipper truck with cheapest price
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
More pictures of forland brand dump truck manufactured by Chengli Special Automobile Co., Ltd. as below.
hot sale pictures of forland brand 4*2 twin cabs dump tipper truck as below

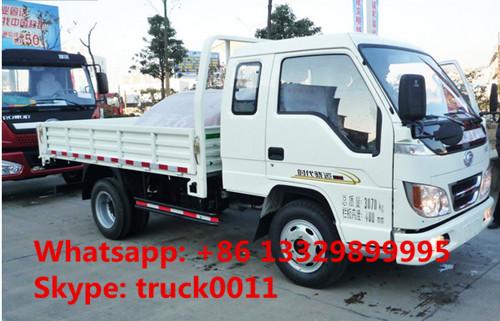

forland brand 4*2 3tons dump truck with twin cab

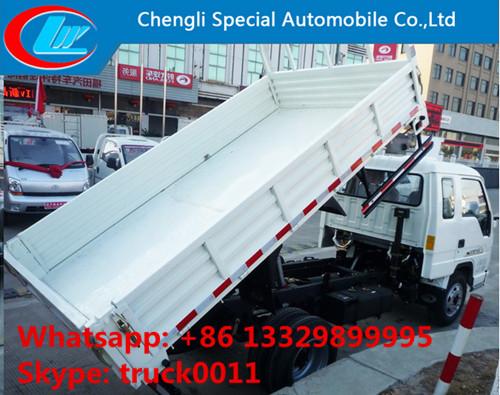

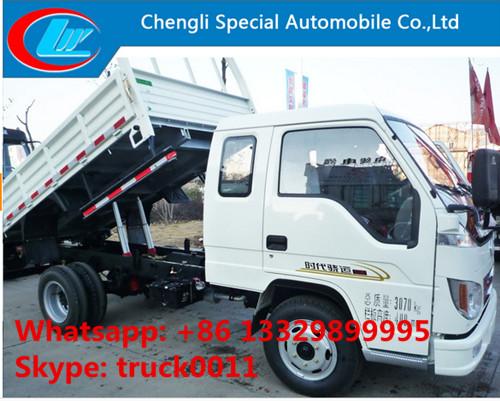

hot sale forland twin cabs dump tipper truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
Main technical parameters of hot sale FOTON MINI 3tons dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Model | FOTON Mini Dumper Truck foton dump truck 3 ton | ||
| Drive model | 4X2 | ||
| Vehicle Main Dimensions | (L x W x H)mm | 5520*1920*2200 | |
| Wheel base (mm) | 2850 | ||
| Wheel track (front/rear) (mm) | 1401/1425 | ||
| Approach/Departure angle(°) | 22/26 | ||
| Weight in KGS | Curb Weight | 1950 | |
| G.V.W. | 3070 | ||
| Max. driving speed(km/h) | 50 | ||
| Engine | Brand | Quanchai | |
| Model | 4D22E | ||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 88HP | ||
| Max output power | 2156/67KW | ||
| Emission standard | Euro III | ||
| Gearbox | 17C18 5 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 200 | ||
| Tire | 6.50-16 All steel radial tire , 11 pieces including one spare tire | ||
| Brakes |
Service brake: dual circuit compressed air brake |
||
| Dump Box | |||
| Hydraulic System | T-type middle lift or Front tipping | ||
| Dimension | 3270*1810*400mm | ||
| Material | Q235/Q345/610L/Q700 | ||
