Good price factory direct sale 10 to 15 cbm HOWO 6*4 asphalst spraying truck, bitumen distributing truck for sale
Good price factory direct sale 10 to 15 cbm HOWO 6*4 asphalst spraying truck, bitumen distributing truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of asphalt tank truck, bitumen distributing vehicle, asphalt tank trailer in China. More information, please feel free to contact Ms. Anita.
Our Intellectualized Asphalt Distributor is used for spraying asphalt on the prime coat, the water-proof layer and tack coat in high-graded road construction. It also can be used for bituminous pavement with the construction techniques of spreading in layers. It can spray hot asphalt, emulsified asphalt, modified asphalt, etc. It is mainly composed of Truck Chassis, Asphalt Tank, Asphalt Pumping and Spraying System, Heating System, Hydraulic Circuit, Pneumatic Circuit, Auto control System and Operation Panel
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Main performance for our asphalst spraying truck
Good price 10 to 15 cbm asphalst spray truck bitumen distributor truck for hot sale
a) All operations can be performed in the cab.
b) Asphalt spraying rate kg/m2: 0.3-3
c) The width of spraying is adjustable. Each spraying nozzle can be controlled independently, and the maximum spraying width can reach 6 meters.
d) Spraying of asphalt is very even, and can realize to spray in three-overlapping.
e) Asphalt application rate is controlled by computer and independent of truck speed.
f) Heating and heat-preserving systems introduce full circulation of thermal oil, which is safe, reliable and full-automatic.
g) Thermal oil preserves heat of asphalt pump and spraying nozzles, which needn’t be washed by diesel oil after finishing spraying. It uses high-pressure air to drain the pipe and spraying nozzle or make use of thermal oil’s cycle to ensure pipelines and spraying nozzles not to be blocked.
h) Control System adopts modular design, which is very convenient to maintain and troubleshooting.
i) It is equipped with standby control system.
j) It can ensure machine to work normally when Main Control System failure.
k) It is equipped with flexible hand-spraying system.
l) Excellent heat-preservation and the average temp. Fall is less than 1 ℃/h.
m) Loading and unloading asphalt is very convenient. Besides filling asphalt through manhole, asphalt can also be sucked into tank and drained by own pump.

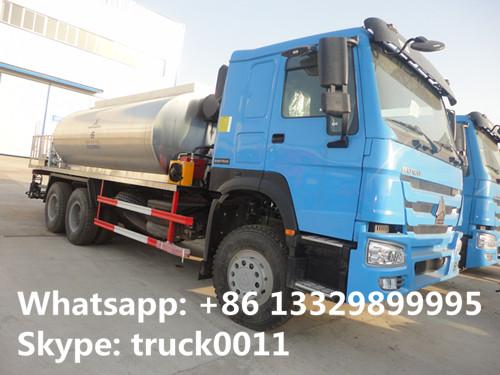

More pictures of hot sale SINO TRUK HOWO 6*4 asphalt spraying vehicle as below

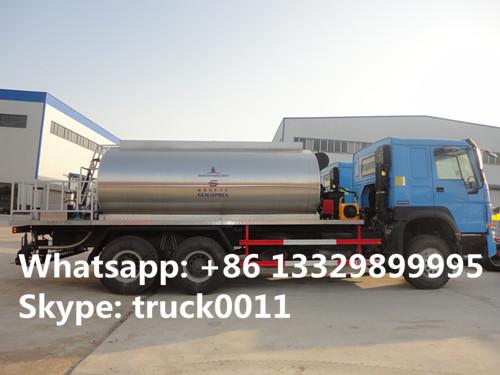

HOWO 6*4 asphalt distributing vehicle for sale

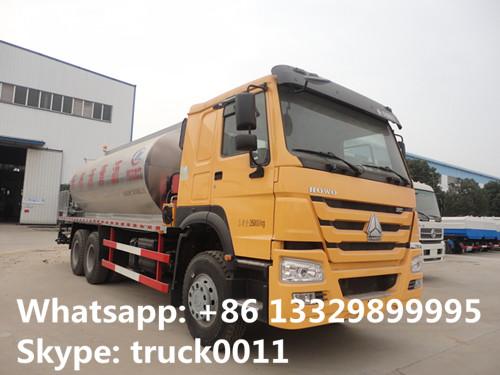

hot sale bitumen spraying vehicle
The main parameters of SINO TRUK HOWO 6*4 asphalt distributing vehicle as below
| Good price 10 to 15 cbm asphalst spray truck bitumen distributor truck for hot sale | |||||
| Product Name | Sinotruck Golden prince asphalt distribution truck | ||||
| Model | CLW5251GLQZ4 | ||||
| Chassis model | ZZ1257M4647D1 | ||||
| Driving Type | 6X4,left hand drive or right hand drive | ||||
| Dimensions | |||||
| Wheelbase(mm) | 4575+1400 | ||||
| Overall Dimension(mm) | 10200*2500*3450 | ||||
| Loading box size(mm) | 4- 12 cbm | ||||
| Weights | |||||
| Payload weight(kg) | 20000 | ||||
| Curb weight(kg) | 16000 | ||||
| Engine | |||||
| Engine model | WD615.97E | ||||
| Engine type | 6 cylinder in line, water-cooled ,Intercooling engine | ||||
| Displacement(L) | 9.726L | ||||
| Max.power | 220kw | ||||
| Drive Line | |||||
| Cluth description | Dry single plate, hydraulic control booster,mechnical operation | ||||
| Transmission | 10 forwarder,2 reverse gear,Manual operation | ||||
| Braking system | Service brake | air brake | |||
| Axles | |||||
| Rear Axle Loading | HC 16000kgX2 | ||||
| Front Axle Loading | 9000kg | ||||
| Tire specification | |||||
| Tire specification | 12.00R20 16 PR standard tire,10 tires+1 spare tire | ||||
| Special function of asphalt distribution truck | |||||
| Tanker | Tanker volume | 10m3 | |||
| asphalt pump | Model | QGB950 | |||
| Hydraulic system | brand | Shanxi yuci | |||
| Asphalt pump hydraulic motor | 05-110-BD31 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Heating heater | Burner | Italy imported G10 | |||
| Control system | Control type | Manual control | |||
| Heat-transfer oil pump | model | 40-25-160 | |||
| Spray system | Asphalt Spray nozzle | 15 ea to 48 ea | |||
| Spray Width | 3m to 6m | ||||
