SINO TRUK HOWO brand 10000 liter bitumen paver, 10 m3 bitumen tanker truck, asphalt sprayinger tank truck for sale
SINO TRUK HOWO brand 10000 liter bitumen paver, 10 m3 bitumen tanker truck, asphalt sprayinger tank truck for sale
Asphalt distributor is a kind of pavement construction machinery; it is a highway, urban road, airport and port construction of major equipment.
It can be used to transport and makes liquid asphalt (including hot asphalt, emulsified asphalt and residue) .
The distributor is composed of automobile chassis, asphalt tank, asphalt pump and spraying system, heat conduction oil heating system, hydraulic system, combustion system and control system, pneumatic system, operating platform.
If you're interested in our van cargo truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
The main technical parameters of hot sale SINO TRUK brand bitumen spraying vehicle as below
| Item | Unit | Description | ||||||||
| Model | Sino Brand Bitumen Spraying Truck | |||||||||
| Dimension | mm | 8650*2480*3070 | ||||||||
| Tank Dimension | m3 | 3800*2350*1650/ ellipse | ||||||||
| 8.2 | ||||||||||
| Curb Weight | kg | 10305 | ||||||||
| Wheel Base | mm | 4700 | ||||||||
| F/R track base | mm | 2020/1860 | ||||||||
| F/R Axle-load | Kg | 6000/10000 | ||||||||
| Approach/Departure angle | . | 19/12 | ||||||||
| Traction system | 4X2 | Tire Specification/Number | 11.00-20 / 6+1 Units | |||||||
| Max speed | 90 km/h | Number of axles | 2 | |||||||
| Engine model | YC6J220-33 | Emission/kw | 6494ml/162Kw, 220HP | |||||||
| Diesel, 6 cylinder, Tubocharged and Watercooling. | ||||||||||
| Engine Manufacturer | GuangXi Yuchai Engine Power Co.,Ltd | |||||||||
| Steering | Powering | Transmission | 10F&2R, HW90510C | |||||||
| Cab passenger | 3 | Electric System | 24V | |||||||
| Driven System | Left hand or Right hand | |||||||||
| Air Condition | YES | CD player, Radio, | ||||||||
| Spraying Specification | ||||||||||
| Type | Standard Design | Intelligent Design | Intelligent Design | |||||||
| China component | European Component | |||||||||
| Asphalt Pump | QGB950 | QGB950 | TGGP-185-125 | |||||||
| 950 L/Min | 950 L/Min | 185 L /Min | ||||||||
| Fire Manner | Auto electronic | |||||||||
| Heating Manner | Thermal Oil heated by fuel | |||||||||
| Nozzle Quantity | 48 Unit | |||||||||
| Spraying width | 4.5~6 m | |||||||||
| Operation manner | Human | Computer | computer | |||||||

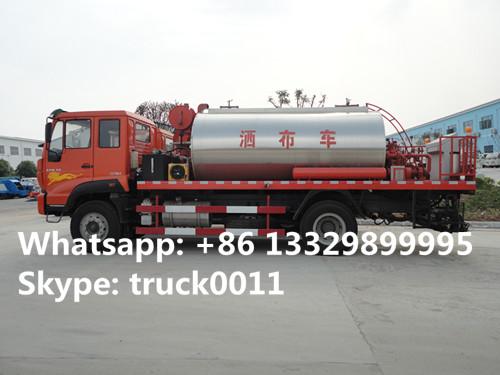

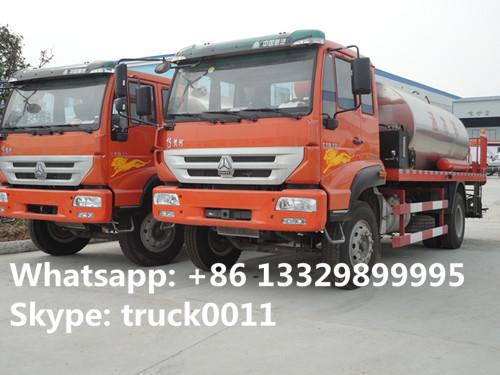

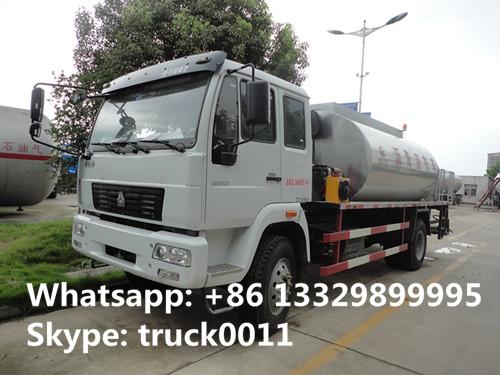

More pictures of SINO TRUK brand bitumen spraying vehicle as below.
SINO TRUK HOWO brand 10,000L asphalt spraying vehicle for sale
hot sale SINO TRUK brand asphalt distributing truck
Draining and spraying system adopts several sprayers and folded pipeline to compose the draining and spraying assembly. (The spraying width is 4.5-6m, every sprayer is controlled independently.)
Pipe cleaning system, adopts the high pressure compressing air draining the asphalt remains, etc.
Heat conduction system, conduction oil pump, conduction oil, conduction oil pool, conduction oil overall circling pipes.
Asphalt pump, adopts the special asphalt pump with good quality.
Power source: exterior engine, belt drives the asphalt pump and oil conduction pump, etc.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
