LPG Skid Plant for Camp Cylinder,Kitchen Cylinder,Industrail Cylinder; skid lpg plant for double scales and nozzles
CLW brand 10,000L LPG Skid Filling Plant With LPG Storage Tank for Camp Cylinder,Kitchen Cylinder,Industrail Cylinder, Hot sale skid lpg gas station with double eletronic scales and filling nozzles
10,000L skid lpg gas plant with two electronic scales
The finished full set of skid-mounted lpg gas plant is well-appinted, installed with lpg gas vane pump, motor, electronic scale etc. The clients can use it to fill gas cylinders directly. And at the same time, we can design and manufacture ASME standard ones. The mobile skid-mounted lpg gas plant is ask for higher installing quality. more and more clients choose our CLW brand company, that is to say our CLW brand lpg gas pressure vessels gain acceptance at home and overseas.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.

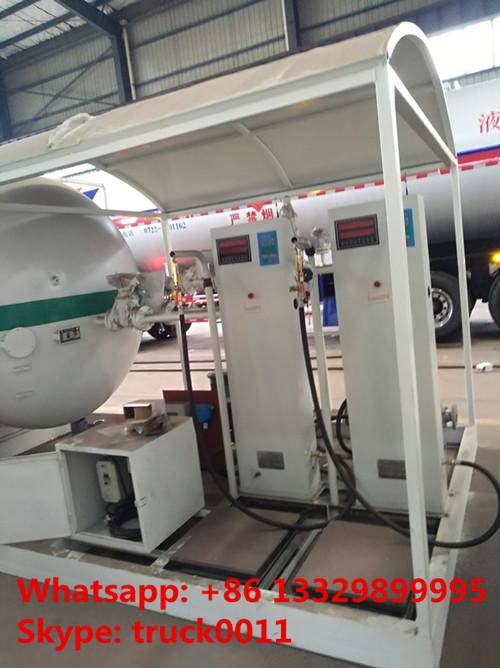

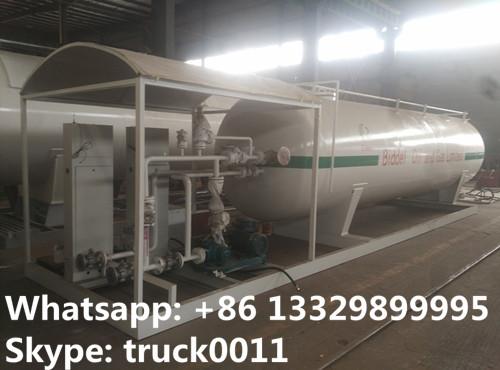

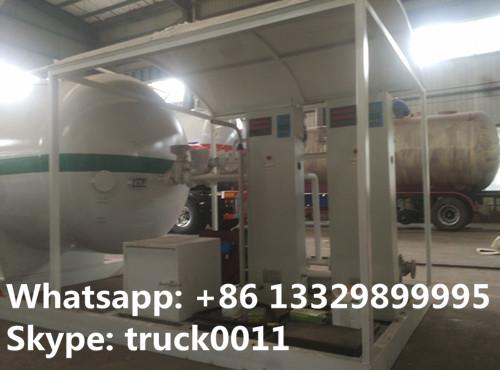

More pictures of hot sale 10,000L skid lpg gas plant for refilling gas bottles cylinders as below
best price skid lpg gas plant for sale
mobile skid lpg gas plant with double eletronic scales and refilling nozzles for sale
CLW Brand skid lpg gas station for gas cylinder bottles
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
The main technical parameters of 10,000L skid lpg gas plant with two eletronic scales as below
| 10,000L LPG SKID STATION DIMENSIONS | |||
| Volume of Tank | 10,000L | ||
| Filling Weight | 3990 kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| External Dimensions (mm) (length x width x height) | 6000x 1620 x 2910 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-520 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Electronic LPG Filling Machine with filling nozzle | Can fill 1 kgs to 150 kgs gas cylinder | 2 | |
| Shock-absorbing Tube | 1 Set | ||
| Filling pump machine | 2 Pieces | ||
| Discharge Pipe | 5 Miters/set, | 2sets | |
| Anti static electric motor | 1 Piece | ||
| Bottom Base | 1 Unit | ||
| Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||
| LPG Pump & Motor Specification | ||||
| Pump Brand | Chinese brand lpg gas pump | |||
| Model | YQB15-5 | |||
| Medium | Liquid petroleum gas | |||
| Working pressure differential | ≤0.5Mpa | |||
| Inlet pressure | ≤1.0Mpa | |||
| Flow Speed | 15.5m3/h | |||
| Applied Power | 5.5kw | |||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
| Revolution | 780r/min | |||
| mass | 166kgs | |||
| Motor | Chinese brand | |||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
| LPG Cylinder electronic Filling Machines Specification | ||||
| Brand | Chinese Kaiyuan Brand | |||
| Model | BCS-150 | |||
| Power supply available | 220V 50HZ | |||
| Rated power | 30W | |||
| Max weighting capacity | 150kg | |||
| Mini weighting capacity | 1kg | |||
| Measurement Precision | ±0.5% | |||
| Accuracy Level | Ⅲ | |||
| Certified Division value | 50g | |||
| Anti-explosion Rate | Exhibit II BT4 | |||
| Weighing station size | 535*425mm | |||
| Electronic scales No. | 2 sets | |||
