Hot sale Shacman brand 8*4 40tons dump tipper truck, best price Shacman Brand heavy duty 40tons dump tipper truck
hot sale Shacman Brand 8*4 LHD dump tipper truck, best price Shacman brand 40tons stones and coals transported truck for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main parameters of Shacman Brand 8*4 TIPPER TRUCK as below
| Product Name | Shacman 8X4 Dump Truck | ||||
| ChassisModel | SX3316HR406 | ||||
| Fuel type | Diesel | ||||
| Cabin | one and half row | ||||
| Vehicle information(mm) | Overall dimensions (L×W×H) | 10085*2490*3450 | |||
| Wheel base | 1800+3575+1400 | ||||
| Front overhang | 1485 | ||||
| Rear overhang | 1875 | ||||
| Min. ground clearance | 500 | ||||
| Weight data (kg) | G.V.W | 31000 | |||
| Curb weight (chassis) | 14800 | ||||
| Max payload | 35t | ||||
| Whole vehicle main performance |
Max. speed (km/h) | 82 | |||
| Max. slope of climb (%) | 30 | ||||
| Engine | Model | WP10.310E40 | |||
| Maximum power | 228kw/310hp | ||||
| Number of cylinders | 6 | ||||
| Displacement (ml) | 9762 | ||||
| Gear box | Number of gears | 10 forward gears | |||
| Steering Wheel | left/right hand drive | optional | |||
| Brake system | Service brake | Air braking | |||
| Electric device | Rated voltage | 24V | |||
| Tyre & Quantity | 12.00R20&12+1 | ||||
| Cargo Body Description | |||||
| Cargo Body | Dimensions | 7200*2300*1130 | |||
| Material | Q235 carbon steel | ||||
| Cargo body thickness |
side 4mm thickness; bottom 6mm thickness |
||||
| Lifting system |
Equipped with the front hydraulic ram |
||||
| Door | Single rear door,side door | ||||

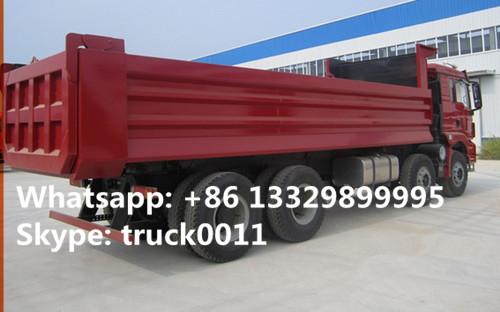

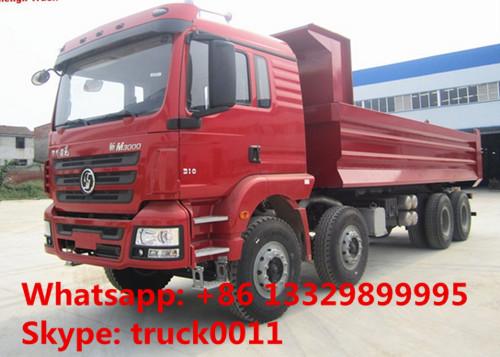

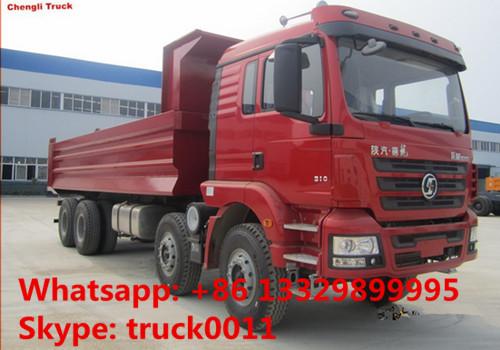

More pictures of hot sale Shacman Brand dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
.
Shacman Brand dump truck for sale
hot sale Shacman brand 40tons dump tipper truck
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
