High quality road sweeper truck with snow removal for sale, best price snow removal mounted on CLW brand street sweeper
High quality road sweeper truck with snow removal for sale, best price snow removal mounted on CLW brand street sweeping vehicle for sale
Main Technology Parameter of dongfeng 3tons raod sweeper truck with snow removal manufactured by Chengli Special Automobile Co., Ltd. as below
Model Name Dongfeng FRK road sweeper truck
Driving Type 4×2,left hand drive
Weights
GVM(kg) 7300
Curb weight(kg)4800
Dimensions
Wheelbase(mm) 3300
Overall Dimension(mm) 5950×1950×2380
Max speed(km/h) 95
Engine
Engine model Chaochai 95hp
Engine type Inter-cooling,water-cooling
No. of cylinders straight-6 cylinders
Displacement(L) 3.856
Max. power(kw) 75kw
Drive Line
Transmission 5 speeds 5 forwards,1 reverse gear,manual operation
Steering Power steering
Cab
Cabin Dongfeng
Configuration A/C
Axle
Rear axle 4 tons
Tire specification
Tire specification 7.00-16 standard tire
Tire quantity 6 tires+1 spare tire
Sweeper road truck specification
Auxiliary engine JX493-G3
Sweeper Cleaning efficientcy ≥95%
Max suction size 120mm
Clening width 2.8-3.2m
Max cleaning capacity 60000 m2/h
Cleaning speed 3-20 km/h
Water tank capacity 1200L
Garabge tank capacity:4200L
Discharging door opening Angle≥45°
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Main technical parameters of snow removal mounted on truck as below
| snowplow main parameters | ||||||||||
| steel snowp shovel model | snowplow width (m) |
snowplow height (mm) |
number of vertical rib | number of release springs | edge of shovel (mm) |
snow removal width (m) | fan structure | swing cylinders (mm) | mass (kg) |
suitable trucks |
| 2.1 | 2.1 | 650 | 4 | 2 | 10×150 | 1.88 | 280 | f40×250 | 147 | pick-up truck |
| 2.2 | 2.25 | 650 | 4 | 3 | 10×150 | 1.98 | 280 | f40×250 | 275 | trucks below 2 ton |
| 2.4 | 2.4 | 720 | 6 | 4 | 12×150 | 2.10 | 380 | f40×305 | 345 | trucks belo 2ton |
| 2.7 | 2.7 | 720 | 6 | 4 | 12×150 | 2.36 | 380 | f40×305 | 364 | trucks below 2 ton |
| 3.0 | 3.0 | 820 | 7 | 6 | 12×150 | 2.62 | 380 | f50×305 | 569 | trucks of 5-8ton |
More pictures of hot sale dongfeng street sweeper truck with snow removal as below.

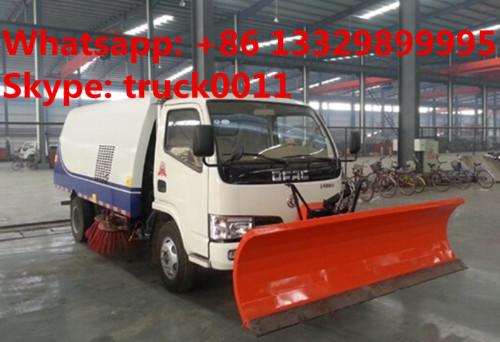

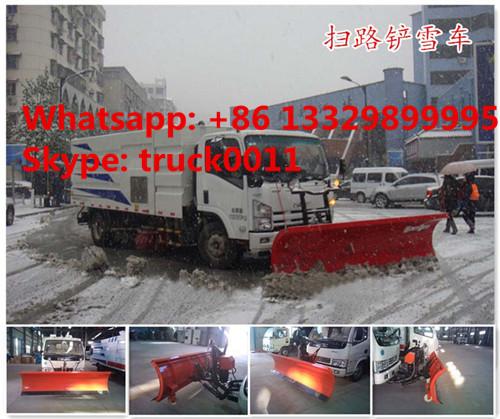

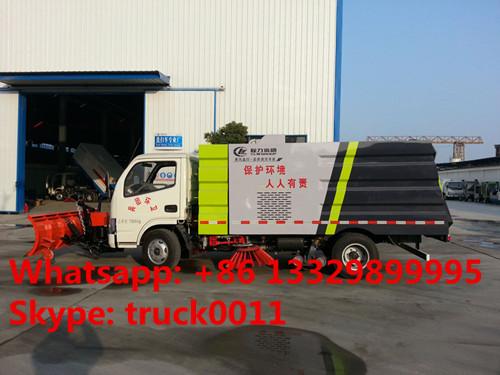

Road sweeper truck with snow removal for sale
Best price DONGFENG brand sweeper truck with snowplow for sale
factory direct sale street sweeping vehicle with snow
The truck is installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel.
Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean.
Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
