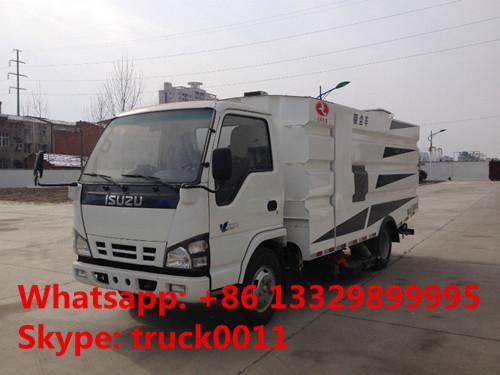

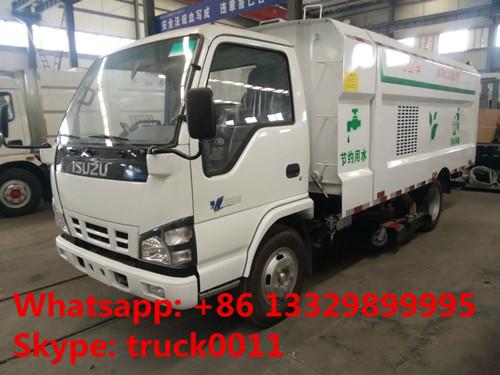

CLW5060TSLQ4 JAPAN brand ISUZU 4*2 LHD road sweeper truck for sale, best price ISUZU 120hp Euro 4 street sweeping truck

1,.the standard device

The road sweeper trucks manufactured are with 4 sets of sweeping brushes, JMC auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc.

The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.

Truck model

CLW5060TSLQ4 ISUZU road sweeper truck

remark

Chassis model

QL1060A1HAY

Wheelbase

3360mm

Front/rear suspension

1015/1375 mm

Engine model

4KH1-TCG40

4KH1-TCG40

JE493-G3

JE493-G3

Engine power

88 kW

88 kW

57 kW

57 kW

Maximum climbing angle

30%

Displacement emission standard

Euro Ⅳ, Euro Ⅲ, Euro Ⅱ

Outside-automobile noisy in the accelerating

≤84dB(A),meeting the noisy of Second stage requirements

Max speed

105 km/h

Approach angle

24°

Departure angle

15°

Weight mass

4630 kg

4630 kg

6435 kg

6435 kg

Dimension

5750×1980×2500 mm

5750×1980×2500 mm

240 mm

240 mm

Sweeping and sucking worki

≥95%

≥95%

120 mm

120 mm

2.8-3.0 m

2.8-3.0 m

60000 m²/h

60000 m²/h

≥400 mm

≥400 mm

3-20 km/h

3-20 km/h

Tank

1.0-1.5 m³

1.0-1.5 m³

Wastes van

3.5-4.0 m³

3.5-4.0 m³

≥45°

≥45°

Hydraulic system

Type

Open-type, electronic-control

Main units

Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve,

System pressure

16MPa

Hydraulic oil tank volume

60L

Oil temperature

60 ˚C

Electronic

Type

DC12V

voltage

12 V

Storage battery

12 V

Water sprinkling system

Water sprinkling system

Electronic diaphragm pump, water filter, nozzles,

Sweeping disks device

Type

4 sets of sweeping disks middle-installed driving by hydraulic motor;

The right-front one can work separately, with the function of dodge and repeat working

Diameter

850mm

Angle

ante version:4-6 °; extroversion: 4-7°

Sucking disk

Type

Single sucking, hydraulic-control, springs

Sucking diameter

200 mm
