HOWO light duty 3tons road sweeping vehicle for sale, factory direct sale best price HOWO brand street sweeper truck
HOWO light duty 3tons road sweeping vehicle for sale, factory direct sale best price HOWO brand street sweeper truck
HOWO road sweeper truck,
HOWO light duty 1860mm luxurious driver cab, 3360mm wheelbase, 7.00R1 tires*6+1, xichai 490 87ho diesel engine, 5 speed transmission, 195mm beam, hydraulic power steering and vacuum clutch steering, etc.
Main parameters of SINO TRUK HOWO Light duty street sweeping truck as below
Water tank volume: 1.5m3, wastes van volume: 4m3,
Auxiliary engine: JMC 77.5KW auxiliary engine
Max cleaning width: 3.2m
Max sucking grains size: 100mm
Max working ability: 45000-90000m2/h
If you're interested in our road sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

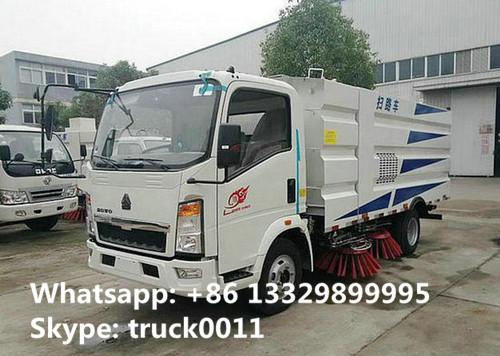

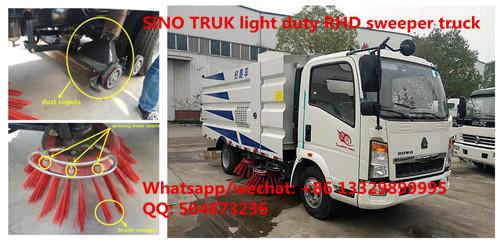

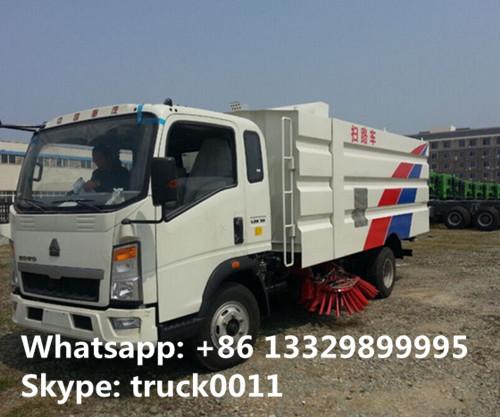

More pictures of hot sale HOWO road cleaning truck as below
HOWO brand road sweeper truck for sale
Main parameters of hot sale HOWO road sweeper truck as below
| HOWO light duty Road sweeper truck for sale | |||
| Product name | HOWO road sweeper truck for sale | Overall dimension(L*W*HH) | 6300X2140X2600(mm) |
| Truck chassis model | ZZ1077D3414D174 | Cargo body dimension | XX (mm) |
| Total mass | 7360(Kg) | Approach/departure angle | 18/11(°) |
| Rated mass | 1500(Kg) | Front/rear suspension | 1160/1780(mm) |
| Curb mass | 5665(Kg) | Max speed | 90(km/h |
| Chassis main parameters | |||
| Truck chassis model | ZZ1077D3414D174 | Fuel type | Diesel |
| Axle nos. | 2 | Front tread | 1600,1800(mm) |
| Wheelbase(mm) | 3360 | Rear tread | 1535,1595(mm) |
| Seated person | 3 | Spring nos. | 3/5+3,8/9+6,11/9+7,11/11+7,9/12+9 |
| Tire bos. | 6 | Axle load | 2450/4910 |
| Tire specification | 7.00R16LT,7.50R16LT,215/75R17.5 14PR,8R17.5 | ||
| Emission standard | Euro 3/Euro 4 | ||
| Engine | |||
| Engine | Manufacturer | Displacement (ml): | Power (kw): |
| CY4102-CE4F CY4102-CE4D YN33CRD2 YN38CRD2 |
CHAOCHAI ENGINE CHAOCHAI ENGINE YUNNEI POWER |
3856 3856 3298 3760 |
73 83 75 85 |
MAIN PARAMETERS OF SWEEPER MOUNTED ON TRUCK AS BELOW
| Item | Parameters |
| Auxiliary engine | JX493G |
| Power of auxiliary engine | 57 kW/77.5hp |
| Total mass | 6300 kg |
| Max speed | ≥100km/h |
| Sweeping width | ≥2.8-3 m |
| Clean water tank volume | 0.8-1m3 |
| Wastes van volume | 3-3.5 m3 |
| Working speed | 3～15km/h |
| max working ability | 45000 m2/h |
| Max sucking grain size | 100 mm |
| Sweeping efficiency | ≥99% |
Compared with common road sweeper, this model has more functions:Road sweeping, road flushing, multi-angle slush flushing, separation zone cleaning, freeway guard rail flushing,spraying, moistening and dust containing, high pressure water gun for car cleaning/low flat flushing with strong water flow, road sprinkling and flower watering from both sides and so on.
1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive.
2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function (by national patent)
3. “Mid four brush - rear nozzle” structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance.
4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle.
5.Sweeper combined with trochar disc, it can work excellently and can automotically choose work type according to waste condition on the ground and speed of the truck. ;
6.Trash and water tank large, continuous cleaning operation a long time.
7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweep sweep to work independently.
8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance;
9. Control switch installed in the driver focused interior, all electronic control can be found in cab ,Beautiful appearance designed via computer
