2020s 20,000Liters 45gallons mobile propane gas transported tank truck for sale, dongfeng 210hp bobtail truck for sale
2020s 20,000Liters 45gallons mobile propane gas transported tank truck for sale, best price and high quality dongfeng 210hp diesel 20m3-25m3 mobile lpg gas bobtail truck for sale
Nowadays, LPG GAS station business is very polular in African countries. And they called lpg gas business “money tree”. It is so blooming that everyone catches the chance to their gold.
From 2015s to 2017s, there are so many clients come to our factory to purchase our lpg gas pressure vessels for their blooming lpg gas plant business. We have exported surface/undergound lpg gas storage tanks, road transported lpg gas tanks, lpg gas delivery trucks, lpg bobtail trucks, skid lpg gas filling trucks all over the world.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.Website: www.trucksinchina.com
main parameters of 20m3 mobile lpg gas refilling bobtail truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Description | 20CBM LPG filling truck 4000 gallons 4500 gallons LPG mobile tanker truck | ||
| Condition | New condition/LHD*RHD | ||
| Chassis | Curb weight(kg) | 14240 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 5400+1300 | ||
| Dimensions(mm) | 8200*2470*3420 | ||
| Overhang (front/rear) (mm) | 1250/2770 | ||
| Approach/Departure angle(°) | 15/10 | ||
| Axle Load(kg) | 7000/18000 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | Dongfeng | ||
| Model | EQ1250 | ||
| Tire | Number | 10pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Gear box | 8 Forwards & 2 reverses | ||
| Engine | Model | B210 33 | |
| Displacement(ml) | 5900 | ||
| Power(kw)/Horsepower(HP) | 155/210 | ||
| Emission standard | Euro 3 | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Cab | It can accommodate three people | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Remarks |
1, 2 units Fire Extinguisher Cabinet 2, With Air conditioning |
||
Tank Attachments
1. Fitted with internal ring segments, drilled for assembly of 4 demountable and folded steel surge baffles. Baffle thickness - 3mm steel
2. Valve Box Cabinet on the side for the bottom discharge, complete with lockable door
3. Operational Decal on the inside of the valve box cabinet door
Tank Openings & Connections
1, Manhole: DN450/DN500
2, Safety Relief Valve: DN50
3, Liquid Line: DN50/DN80
4, Gas Line: DN25/DN50
5, LPG Pump: Local brand/Corken/other famous brand.
6, Discharging system: Local brand/REGO/other famous brand
7, Liquid control LPG follow meter: Local brand/LC/other famous brand
8, Tempreture Gauge
9, Pressure Gauges
10, Liquid Level
11, Drain Valve
Surface Treatment
1, Internal tank surface treatment
2, External tank surface treatment
3, Frame Surface Treatment

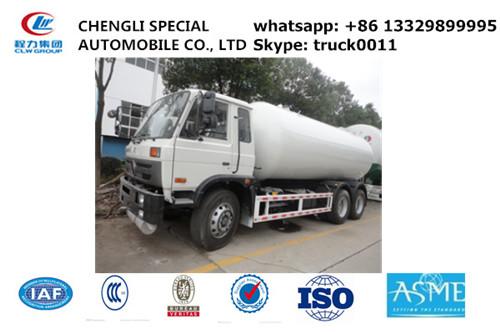

More pictures of hot sale dongfeng 25m3 mobile lpg gas bobtail truck manufactured by Chengli Special Automobile Co., Ltd. as below.
mobile lpg gas bobtail truck for sale
best price high quality 20m3 mobile lpg gas delivery truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd. could manufacture and sell surface/underground lpg gas storage tank, lpg gas trailer, lpg gas delivery truck, mobile lpg gas dispensing truck, skid lpg gas refilling plant, etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
