Japan brand ISUZU 4*2 LHD 4tons wrecker truck for sale, best price factory sale ISUZU traffic flatbed breakdown truck
Japan brand ISUZU 4*2 LHD 4tons wrecker tow truck for sale, best price factory sale ISUZU flatbed wrecker tow truck
Wrecker truck is also called road wrecker tow truck or tow truck, making up of chassis, lifting device, hauling and supporting device, hydraulic system, electronic control system, truck body and toolbox, etc. having the functions of lifting, hauling, and supporting, etc. wrecker tow truck is suitable for wrecker working on the high road and municipal working.
The upper device of ISUZU wrecker tow truck, the flatbed dimension (L*W) is 5600*2300(mm), the working dimension is 2680mm. The flatbed adopts one-formed technique, etc. the max bearing mass is 5ton, angle of inclination is 10 degree, etc. etc.
ISUZU wrecker tow truck, adopts ISUZU original chassis, ISUZU single row driver cab, 3815mm wheelbase, equipped with Euro 4 120hp 4HK1-TCG40 engine, ISUZU MSB 5 speed transmission, 2.5ton front bridge/4,.8ton rear bridge, 172mm truck frame, 7.00-16 nylon tyre, with original air conditioner, and power steering, interior car trim, etc.

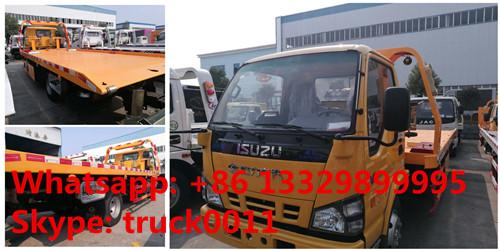

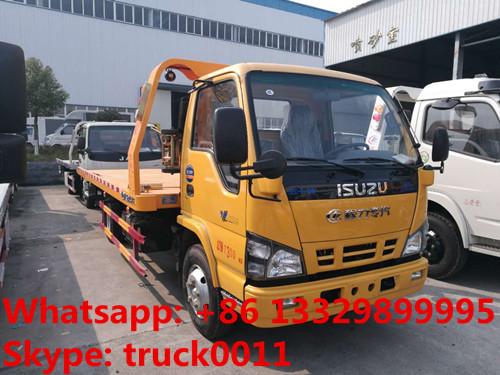

More pictures of hot sale CLW5070TQZQ4 ISUZU brand 600P wrecker tow truck manufactured by Chengli Special Automobile Co., Ltd. as below

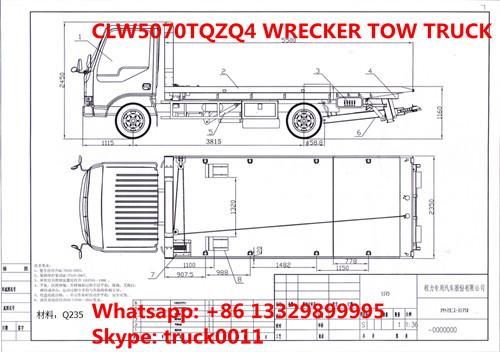

simple drawing pictures of CLW5070TQZQ4 wrecker tow truck for sale
ISUZU flatbed breakdown vehicle for sale
High quality and best price Japan ISUZU brand 4tons wrecker tow truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
Main parameters of hot sale CLW5070TQZQ4 ISUZU brand 600P wrecker truck as below
| Main parameters | |||
| Product name | CLW5070TQZQ4 wrecker truck | Overall dimension | 7250X2350X2200(mm) |
| Chassis model | QL1070A1KAY | Cargo body dimension | XX (mm) |
| Total mass | 7300(Kg) | Approach/departure angle | 24/9(°) |
| Rated mass | (Kg) | Front/rear suspension(mm) | 1015/2420(mm) |
| Curb mass | 4280(Kg) | Max speed | 105(km/h) |
| Chassis main parameters | |||
| Chassis | QL1070A1KAY | Fuel type | Diesel |
| Axles | 2 | Front tread(mm) | 1504(mm) |
| wheelbase | 3815 mm | Rear tread(mm) | 1425(mm) |
| Driver cab person | 2 | Springs | 8/6+5 |
| Tyre nos. | 6 | Axle load | 2580/4720 kg |
| Tyre | 7.00-16 14PR,7.00R16 14PR | ||
| Emission standard | GB17691-2005( Euro Ⅳ),GB3847-2005 | ||
| Engine | |||
| Engine | Manufacturer | Displacement (ml) | Power (kw) |
| 4KH1-TCG40 | ISUZU | 2999 | 88 |
