JMC brand 4*2 LHD flatbed wrecker tow truck for sale,factory sale best price JMC road recovery rescue towing truck
JMC brand 4*2 LHD flatbed wrecker tow truck for sale, best price JMC road recovery rescue towing truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of special purpose vehicles in China. With many years’ development, We Chengli Special Autumobile Co., Ltd. could supply water tank, fuel tank, feed truck, truck with crane, dump truck, garbage truck, wrecker tow truck, lpg gas pressure vessels, refrigerated truck, vacuum truck, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale JAC road flatbed wrecker tow truck as below
| Truck model | CLW5040TQZJ4 | |
| Product name | JMC wrecker tow truck for sale | |
| Overall dimension(L*W*H) mm | 5995*2310*2200 | |
| Wheelbase(mm) | 3360mm | |
| Total mass(kgs) | 4495 | |
| Curb mass(kgs) | 3710 | |
| Engine model | JX493ZLQ4 | |
| Tire specification | 7.00R16LT | |
| Front/rear suspension mm | 1065/1570 | |
| Front/rear tread(mm) | 1506/1466 | |
| Max speed | 95km/h | |
|
Approach/departure angle(°)
|
27/14 | |
| Axle load(kgs) | 1860/2635 | |
| Leaf spring | 7/4+5 | |
|
Flatbed
|
Flatbed dimension(inner):mm | 5200(4200+100 hydraulic reverse turning plat) |
| Flatbed working stroke:mm | 1800 | |
| Flatbed loading mass (g) | 4000 | |
| Mini slope angle of the flatbed | 4°/5.6° | |
| Towing bracket arm | Max towing lifting mass(kgs) | 2000 |
| Full extension bracket arm towing lifting mass | 1500 | |
| Max effective length of Bracket arm (m | m)690 | |
| Bracket arm extension stroke(mm) | 1200 | |
| Bracket arm slope angle range | -4°～6° | |
| Rated towing lifting mass(kgs) | 5000 | |
| Winch rated pull force (KN) | 4000 | |
| Steel rope length(m) | 21 | |
Wrecker tow truck, vehicle rescue, rescue vehicle, the trailer, wrecker, high-speed wrecker, road wrecker, accident wrecker, flat wrecker, supporting crane wrecker, flat a drag two wrecker, heavy wrecker, Steyr wrecker, large wrecker, mainly used for various loading and unloading, installation of lifting operation, especially in the wild, wrecking operation and narrow space operations.
More pictures of hot sale JAC road wrecker tow truck manufactured by Chengli Special Automobile Co., Ltd. as below.

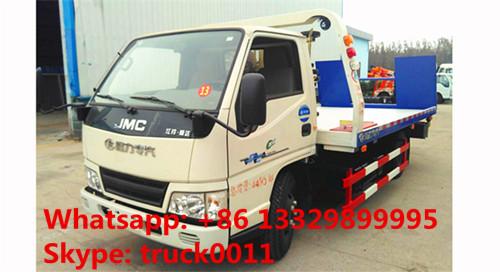

JMC brand road wrecker tow truck for sale

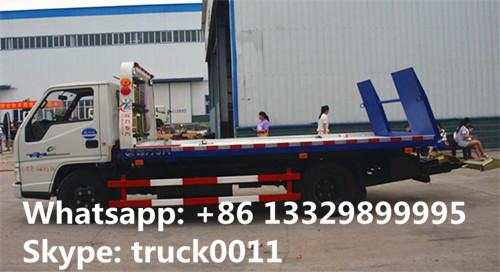

high quality and best price JMC brand flatbed towing recovery truck for sale
