factory sale best price dongfeng 6*4 LHD 8-12tons truck with crane, hot sale dongfeng 210hp diesel truck mounted crane
factory sale best price dongfeng 6*4 LHD 8-12tons truck with crane, hot sale dongfeng 210hp diesel truck mounted crane
The truck mounted concrete pump is also called concrete pump, concrete pump truck, concrete mixer with pump, portable concrete mixer and pump, etc.
The truck mounted concrete pump we produce are with good quality, best price. We have one small mixer truck with pump. It is one multifunctional truck, which can be used as concrete mixer truck and concrete pump truck. The mixing volume is 0.5 cubic meters and the vertical pump height is 30 meter.
Dongfeng 6*4 12ton folded truck with crane, Cummins 210hp Euro 3 engine, fastgear 8 speed transmission(8JS85E);front bridge 5ton/rear bridge 10ton; 12 ton telescopic crane arm (details as below) and horizontal hydraulic rear outriggers; 10-20 nylon tire.
And overall dimension(L*W*H):11945×2500×3850(mm).
cargo van dimension(L*W*H) 8400*2300*550(mm), with 2mm thickness carbon steel for side sheet and 3mm thickness carbon steel for bottom sheet.
If you're interested in our dongfeng 12tons truck with crane, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

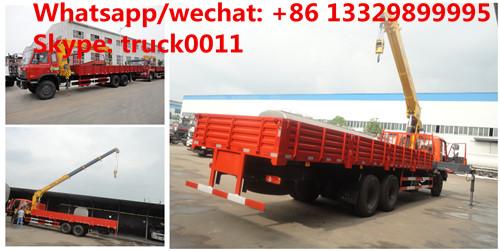

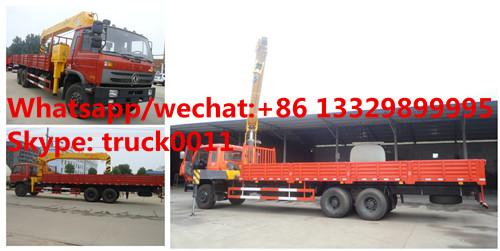

More pictures of hot sale dongfeng 6*4 LHD 12tons telescopic boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below .
hot sale! dongfeng 6*4 12tons truck with crane
high quality and best price dongfeng brand 8tons-12tons cargo truck with crane for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
main technical parameters of hot sale dongfeng 6*4 8-12tons truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below
| Chassis main parameters | |||
| Chassis model | EQ1258 | Manufacturer | Dongfeng Automobile Co., Ltd. |
| Driver cab person | 3 | Tire nos. | 10 |
| Approach/departure angle | 28/10 | Tire specification | 10.00-20 |
| Axle nos. | 3 | Wheelbase(mm) | |
| Axle load(kg) | 7000/18000(double axles) | Max speed(km/h) | 85 |
| Front tread(mm) | 1940 | Rear tread(mm) | 1860/1860 |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | Displacement(ml) | Power (kw) |
B210 33 |
Cummins |
5900 |
155 |
| Crane model | SQ12SA2(12 ton 3 sections straight boom) | ||||||||
| Max lift mass (kg) | 12000 | ||||||||
| Max lift force moment (n.m) | 320000 | ||||||||
| Profile | Pentagon | slewing | Slewing speed(r/min) | 2 | |||||
| Numbers of sections | 3(extended 2 sections boom) | Slewing range | 360 | ||||||
| Length (m) | 4.5-11.9 | Outrigger | Type | Up-right supported | |||||
| Max working radius(m) | 11.9 | Outrigger dimension(m) | 2.2-5.9 | ||||||
| Extended speed(m/s) | 6.8/35 | Hydraulic system | Pressure (mpa) | 24 | |||||
| Luffing range | 1-70 | Oil tanker volume (L) | 180 | ||||||
| Elevation-up speed(°/s) | 70/22 | Safety device | Stop alarm | ||||||
| Max lift height(m) | 13.6 | Curb mass(kg) | 4000 | ||||||
| The single rope allowable load (N) | 19600 | Suitable truck | Above 12 ton load truck | ||||||
| Max single rope speed(m/min) | 8.03 |
The install room: 1250mm Remark: this is the rated parameters for the system flow of 1500L/min. |
|||||||
| rope diameter(mm) | 12 | ||||||||
| Rope length (m) | 115 | ||||||||
| Working radius(m) | 2.5 | 5.2 | 8.55 | 11.9 | |||||
| Rated mass(kg) | 12000 | 5400 | 2650 | 1280 | |||||
